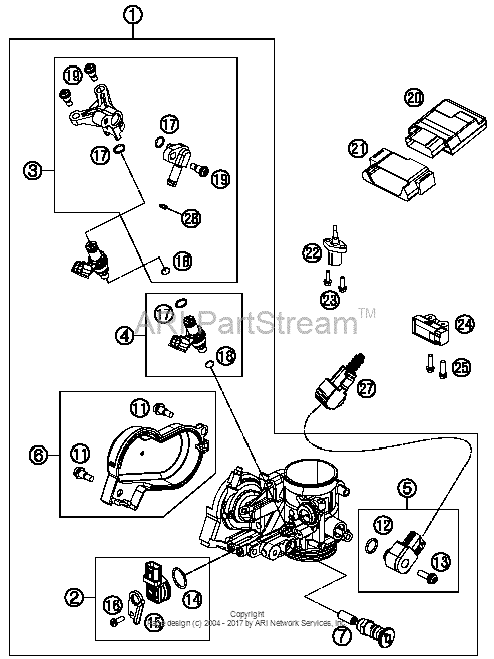

Throttle Body Diagram KTM 500 500 XC-W
- Year
- 2015
- Sales region
- US/EU
- Engine Capacity
- 500
- Model
- 500 XC-W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
77241001000 Throttle Body03 |
77241001000 |
US $425.97 |
||
|
2
|
2
81241085044 Map sensor cpl. 0909 |
81241085044 |
US $187.58 |
||
|
3
|
3
81241013044 Fuel rail cpl. 0909 |
81241013044 |
US $106.62 |
||
|
4
|
4
75041023144 Injector Kit Cpl09 |
75041023144 |
US $219.61 |
||
|
5
|
5
81241077044 Tps kpl. 0909 |
81241077044 |
US $128.66 |
||
|
6
|
6
81241056044 Throttle cover cpl. 0909 |
81241056044 |
US $54.45 |
||
|
7
|
7
81241060000 Starter valve comp.09 |
81241060000 |
US $90.76 |
||
|
11
|
11
81241056020 Special screw ah09 |
81241056020 |
US $7.97 |
||
|
12
|
12
61041077010 O-ring throttle pos. sensor09 |
61041077010 |
US $4.13 |
||
|
13
|
13
81241077030 Special screw09 |
81241077030 |
US $4 |
||
|
14
|
14
75041085010 O-ring09 |
75041085010 |
US $5.20 |
||
|
15
|
15
81241085020 Plate 0909 |
81241085020 |
US $29.53 |
||
|
16
|
16
81241085030 Special screw09 |
81241085030 |
US $3.83 |
||
|
17
|
17
75041023020 O-ring09 |
75041023020 |
US $7.99 |
||
|
18
|
18
75041023010 Seal ring09 |
75041023010 |
US $11.39 |
||
|
19
|
19
75041013010 Screw shoulder09 |
75041013010 |
US $5.83 |
||
|
20
|
20
81241031100 Electronic Control Unit09 |
81241031100 |
US $456.20 |
||
|
21
|
21
77241031050 Rubber Bracket Ecu09 |
77241031050 |
US $43.49 |
||
|
22
|
22
61041080000 Ambient-air temperature sensor09 |
61041080000 |
US $41.04 |
||
|
23
|
23
0025050166 Hh collar screw m5x16 tx30TX30 |
0025050166 |
US $2.60 |
||
|
24
|
24
61041088000 Rollover sensor 0505 |
61041088000 |
US $59.04 |
||
|
25
|
25
0025060206 Hh collar screw m6x20 tx30TX30 |
0025060206 |
US $1.97 |
||
|
27
|
27
77111014050 Protection Cap TpsTX30 |
77111014050 |
US $7.23 |
||
|
28
|
28
77507017000 Clamp Aba 14MmTX30 |
77507017000 |
US $4.47 |
