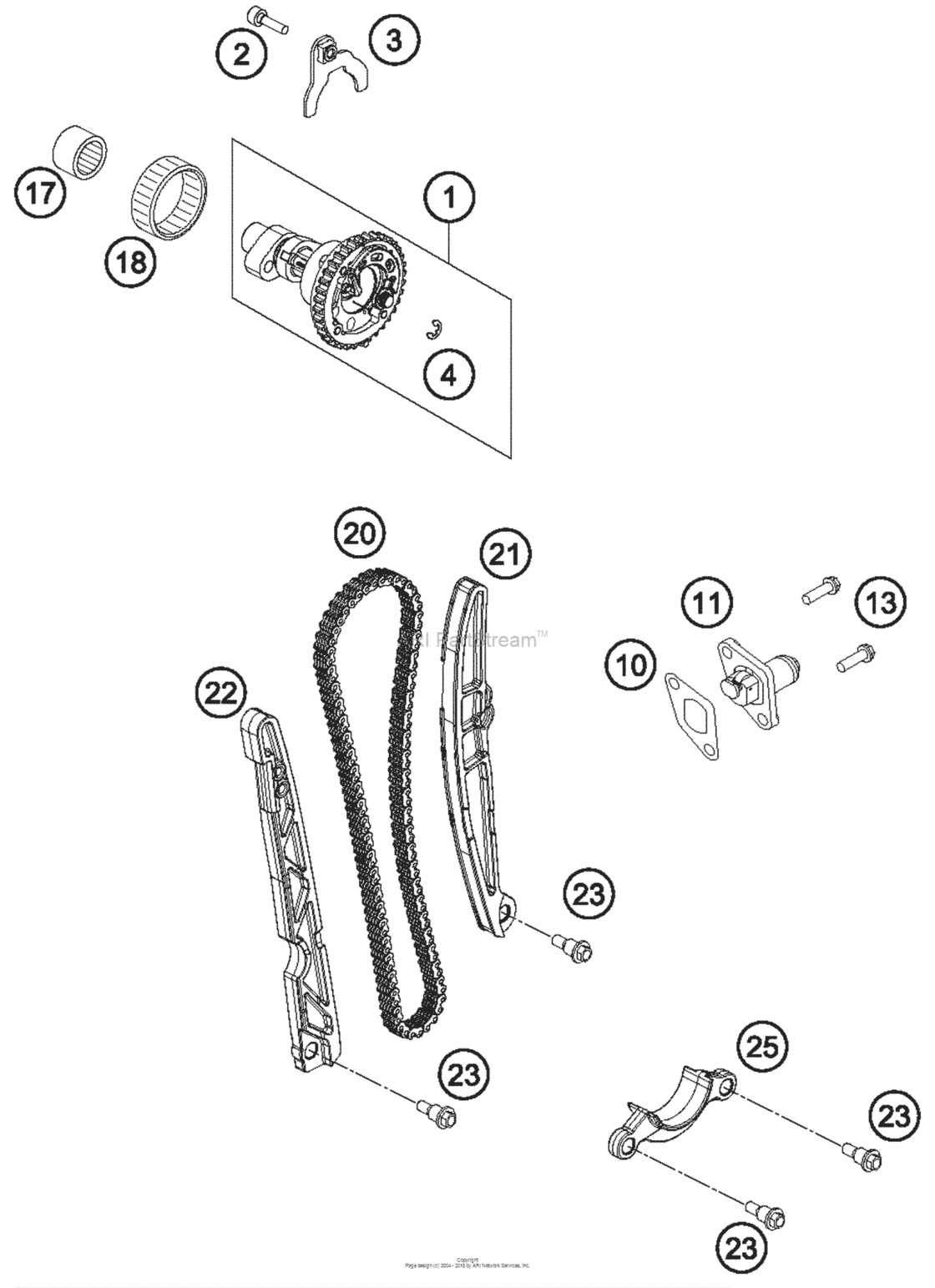

Timing Drive Diagram KTM 500 500 XC-W
- Year
- 2015
- Sales region
- US/EU
- Engine Capacity
- 500
- Model
- 500 XC-W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
78736010033 Camshaft With AutodecoTX30 |
78736010033 |
US $312.14 |
||
|
2
|
2
0025060206S Hh collar screw m6x20 tx30TX30 |
0025060206S |
US $2.60 |
||
|
3
|
3
78036012033 Retaining plate camshaft cpl.TX30 |
78036012033 |
US $10.73 |
||
|
4
|
4
0799050000 Tab washer din6799 rs5TX30 |
0799050000 |
US $0.39 |
||
|
10
|
10
59036003050 Gasket timing chain tensionerTX30 |
59036003050 |
US $5.85 |
||
|
11
|
11
59036003000 Timingchain Tensioner Cpl.racTX30 |
59036003000 |
US $63.33 |
||
|
13
|
13
0025060166 Hh collar screw m6x16 tx30TX30 |
0025060166 |
US $2.23 |
||
|
17
|
17
0618182414 Needle sleeve hk1814rs18/24/14TX30 |
0618182414 |
US $11.46 |
||
|
18
|
18
0618404712 Needle sleeve hk4012b40x47x12TX30 |
0618404712 |
US $13.94 |
||
|
20
|
20
78636013000 Timing chain 114t 0808 |
78636013000 |
US $80.43 |
||
|
21
|
21
78136002100 Timing Chain Tensioner08 |
78136002100 |
US $7.02 |
||
|
22
|
22
78136001000 Timing Chain Guide08 |
78136001000 |
US $5.87 |
||
|
23
|
23
77236001160 Bushing Screw M608 |
77236001160 |
US $4.34 |
||
|
25
|
25
78136018000 Failure Protection08 |
78136018000 |
US $2.06 |
