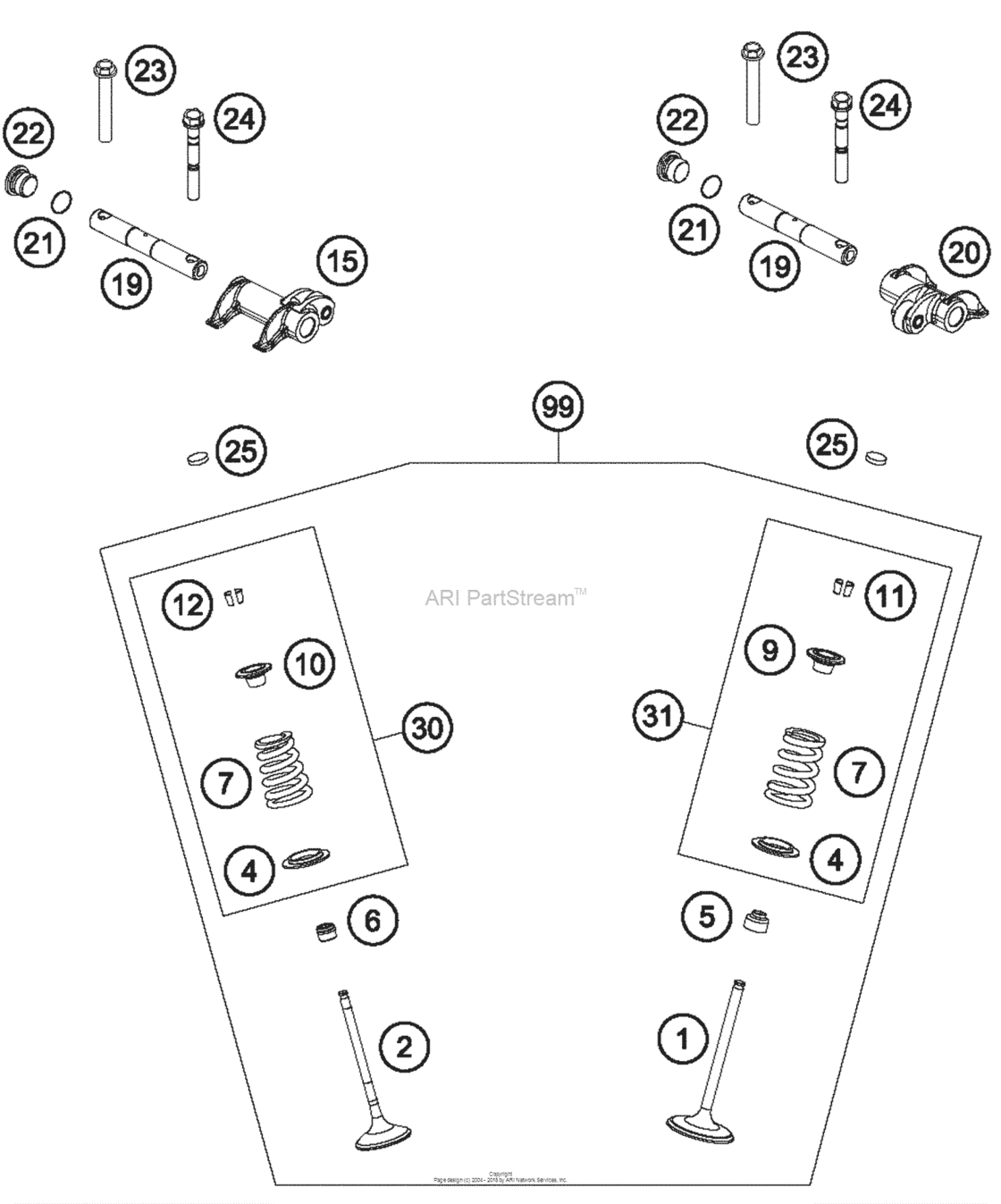

Valve Drive Diagram KTM 500 500 XC-W
- Year
- 2015
- Sales region
- US/EU
- Engine Capacity
- 500
- Model
- 500 XC-W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
78936030100 Intake ValveAs Required |
78936030100 |
US $190.32 |
||
|
2
|
2
78036031000 Exhaust valveAs Required |
78036031000 |
US $79 |
||
|
4
|
4
78936036000 Valve Spring HolderAs Required |
78936036000 |
US $8.04 |
||
|
5
|
5
59036027000 Valve-stem sealing racingAs Required |
59036027000 |
US $7.70 |
||
|
6
|
6
77036027000 Valve-stem sealing 0505 |
77036027000 |
US $8.16 |
||
|
7
|
7
78936028000 Valve Spring05 |
78936028000 |
US $21.76 |
||
|
9
|
9
78936032000
Valve Spring Retainer
05 |
78936032000 |
— | ||
| replacement | |||||
|
9
|
9
78936032100 Valve Spring Retainer05 |
78936032100 |
US $26.32 |
||
|
10
|
10
78136032000 Valve Spring Support05 |
78136032000 |
US $20.76 |
||
|
11
|
11
77336033100 Valve collet 0707 |
77336033100 |
US $2.09 |
||
|
12
|
12
77036033000 Valve collet 0505 |
77036033000 |
US $7.89 |
||
|
15
|
15
78036061044 Rocker arm exhaust cpl.05 |
78036061044 |
US $107.80 |
||
|
19
|
19
78036056200 Rocker Arm Shaft05 |
78036056200 |
US $23.17 |
||
|
20
|
20
78036060044 Rocker arm intake cpl.05 |
78036060044 |
US $107.80 |
||
|
21
|
21
0770110015 O-ring 1,5x11 silicon05 |
0770110015 |
US $4.81 |
||
|
22
|
22
78036081000 Holding bolt m14x1,505 |
78036081000 |
US $8.25 |
||
|
23
|
23
77036080000 Special screw m7x40 ws1005 |
77036080000 |
US $4.39 |
||
|
24
|
24
78036080000 Fit bolt m7x1x5505 |
78036080000 |
US $5.49 |
||
|
25
|
25
77036035172 Shim d=8,9/1,72As Required |
77036035172 |
US $5.71 |
||
|
25
|
25
77036035176 Shim d=8,9/1,76As Required |
77036035176 |
US $5.71 |
||
|
25
|
25
77036035180 Shim d=8,9/1,80As Required |
77036035180 |
US $5.71 |
||
|
25
|
25
77036035184 Shim d=8,9/1,84As Required |
77036035184 |
US $5.71 |
||
|
25
|
25
77036035188 Shim d=8,9/1,88As Required |
77036035188 |
US $5.71 |
||
|
25
|
25
77036035192 Shim d=8,9/1,92As Required |
77036035192 |
US $5.71 |
||
|
25
|
25
77036035196 Shim d=8,9/1,96As Required |
77036035196 |
US $5.71 |
||
|
25
|
25
77036035200 Shim d=8,9/2,00As Required |
77036035200 |
US $5.71 |
||
|
25
|
25
77036035204 Shim d=8,9/2,04As Required |
77036035204 |
US $5.71 |
||
|
25
|
25
77036035208 Shim d=8,9/2,08As Required |
77036035208 |
US $5.71 |
||
|
25
|
25
77036035212 Shim d=8,9/2,12As Required |
77036035212 |
US $5.71 |
||
|
25
|
25
77036035216 Shim d=8,9/2,16As Required |
77036035216 |
US $5.71 |
||
|
25
|
25
77036035220 Shim d=8,9/2,20As Required |
77036035220 |
US $5.71 |
||
|
25
|
25
77036035224 Shim d=8,9/2,24As Required |
77036035224 |
US $5.71 |
||
|
25
|
25
77036035228 Shim d=8,9/2,28As Required |
77036035228 |
US $5.71 |
||
|
25
|
25
77036035232 Shim d=8,9/2,32As Required |
77036035232 |
US $5.71 |
||
|
25
|
25
77036035236 Shim d=8,9/2,36As Required |
77036035236 |
US $5.71 |
||
|
25
|
25
77036035240 Shim d=8,9/2,40As Required |
77036035240 |
US $5.71 |
||
|
25
|
25
77036035244 Shim d=8,9/2,44As Required |
77036035244 |
US $5.71 |
||
|
25
|
25
77036035248 Shim d=8,9/2,48As Required |
77036035248 |
US $5.71 |
||
|
25
|
25
77036035252 Shim d=8,9/2,52As Required |
77036035252 |
US $5.71 |
||
|
25
|
25
77036035256 Shim d=8,9/2,56As Required |
77036035256 |
US $5.71 |
||
|
25
|
25
77036035260 Shim d=8,9/2,60As Required |
77036035260 |
US $5.71 |
||
|
30
|
30
78136029044 Valve Spring Kit ExhaustAs Required |
78136029044 |
US $50.71 |
||
|
31
|
31
78136028044 Valve Spring Kit IntakeAs Required |
78136028044 |
US $53.69 |
||
|
99
|
99
78136030010 Valve Kit 450/500 Exc 14-15As Required, 2014 |
78136030010 |
US $871.18 |
||
