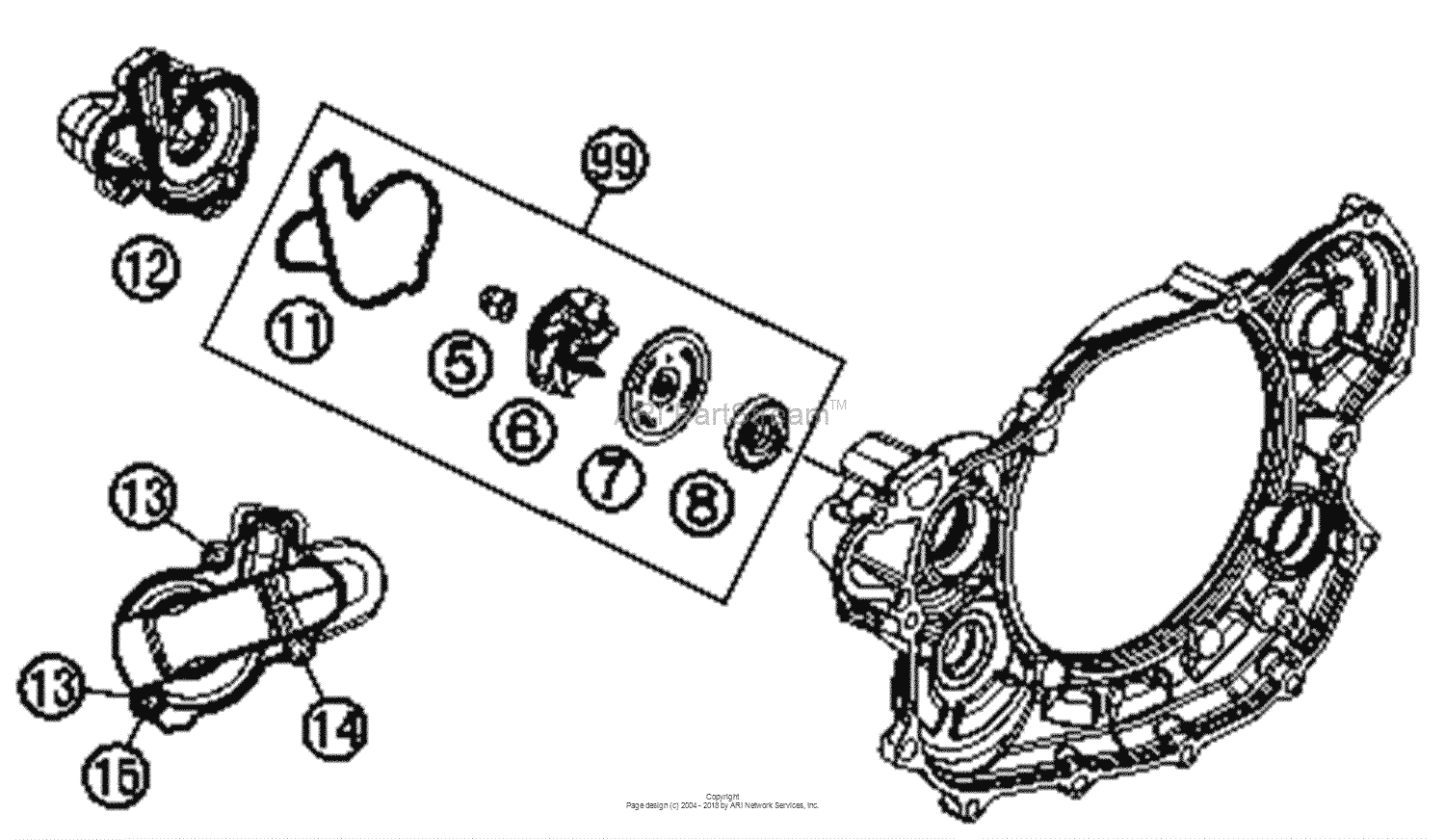

Water Pump Diagram KTM 500 500 XC-W
- Year
- 2015
- Sales region
- US/EU
- Engine Capacity
- 500
- Model
- 500 XC-W
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
5
|
5
61230045000 Cap Nut M6 Stainless SteelAs Required, 2014 |
61230045000 |
US $0.90 |
||
|
6
|
6
81235055020 Water pump rotorAs Required, 2014 |
81235055020 |
US $8.99 |
||
|
7
|
7
81235055110 Disc water pumpAs Required, 2014 |
81235055110 |
US $3.86 |
||
|
8
|
8
0760123073 Shaft seal ring 12x30x7 ptfeAs Required, 2014 |
0760123073 |
US $16.13 |
||
|
11
|
11
78135053000 Water-Pump GasketAs Required, 2014 |
78135053000 |
US $6.21 |
||
|
12
|
12
78135052000 Water Pump Cover CplAs Required, 2014 |
78135052000 |
US $53.23 |
||
|
13
|
13
0025060256 Hh collar screw m6x25 tx30TX30 |
0025060256 |
US $2.45 |
||
|
14
|
14
0025060656 Hh collar screw m6x65 tx30TX30 |
0025060656 |
US $1.39 |
||
|
15
|
15
0603061001 Cu-Seal Ring Din7603-6X10X1TX30 |
0603061001 |
US $2.64 |
||
|
99
|
99
81235055015 Water Pump Rep. Kit 12-14As Required, 12-14 |
81235055015 |
US $28.87 |
