	Description	OEM Part #	Price
11	11 50211631000 Adjusting screw cpl. m4x40 WS=8	50211631000	US $3.96
12	12 50211410050 Headlight bracket '93 WS=8	50211410050	US $6.73
13	13 0016040183 Screw for plastic d=4x18 WS=8	0016040183	US $1.17
14	14 44111038000 Bilux-bulb 12v 35/35w ba20d WS=8	44111038000	US $16.30
18	18 31008060000 Rubber Sleeve D=8Mm Open WS=8	31008060000	US $1.09
19	19 44111015100 Bulb 12v 10w (ba15s) WS=8	44111015100	US $2.30
22	22 58414030000 Hh collar nut m10x1,25 ws=13 WS=8	58414030000	US $2.60
23	23 0797100003 Lock washer din6797-j10,5 zi WS=8	0797100003	US $0.65
24	24 0125100003 Washer Din0125-A10,5 WS=8	0125100003	US $1.19
25	25 5841402500030 Flasher Cpl.front L/s Rear R/s WS=8	5841402500030	—
26	26 5841402600030 Flasher Cpl.front R/s Rear L/s WS=8	5841402600030	US $25.93
28	28 58414028000 Flasher lens l/s & r/s '98 WS=8	58414028000	US $6.75
30	30 50211410000 Headlight Cpl. Cev 322 '93 WS=8	50211410000	US $67.07
35	35 50211436000 Bulb socket WS=8	50211436000	US $22.49
36	36 50211437000 Rubber Cap WS=8	50211437000	—
37	37 49011435000 Bulb 12V 5W (W2,1X9,5D) Phil WS=8	49011435000	US $4.27
	replacement
37	37 49011435100 Bulb 12V 5W (W2,1X9,5D) Phil WS=8	49011435100	US $3.81
39	39 58011039000 Spacer bushing 6,5 x 8 x 7 WS=8	58011039000	US $1.79
40	40 58311040000 Rear Light Cpl. Cev 358 '93 WS=8	58311040000	US $45.66
41	41 58311041000 Lens '93 WS=8	58311041000	US $24.43
42	42 57011045000 Bulb 12V 21/5W (Bay15S)Reinfo WS=8	57011045000	US $15.37
	replacement
42	42 58414042000 Bulb 12V 21/5W (Bay15S)Reinfo WS=8	58414042000	US $12.56
45	45 0985060003 Self Lock. Nut Din0985-M 6 WS=8	0985060003	US $2.60
46	46 0021060003 Washer Din9021-A 6,4 WS=8	0021060003	US $3.26
72	72 50211410010 Cable F.headlight 125/250/300 Egs WS=8	50211410010	—

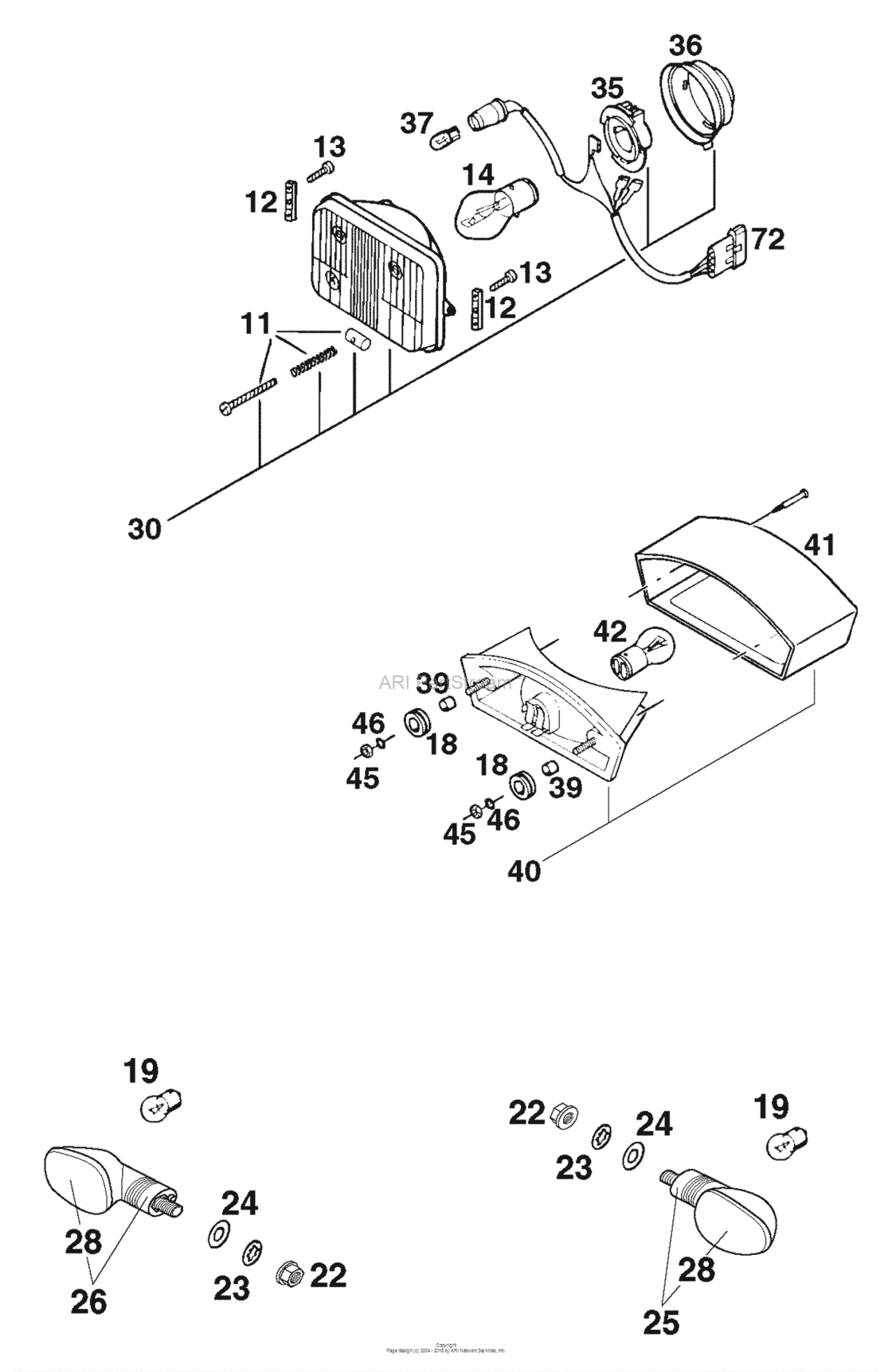

Head Light, Flasher (Part 2) Diagram KTM 540 540 SXC US/EU 18100266-940410

Head Light, Flasher (Part 2) Diagram KTM 540 540 SXC US/EU 18100266-940410
