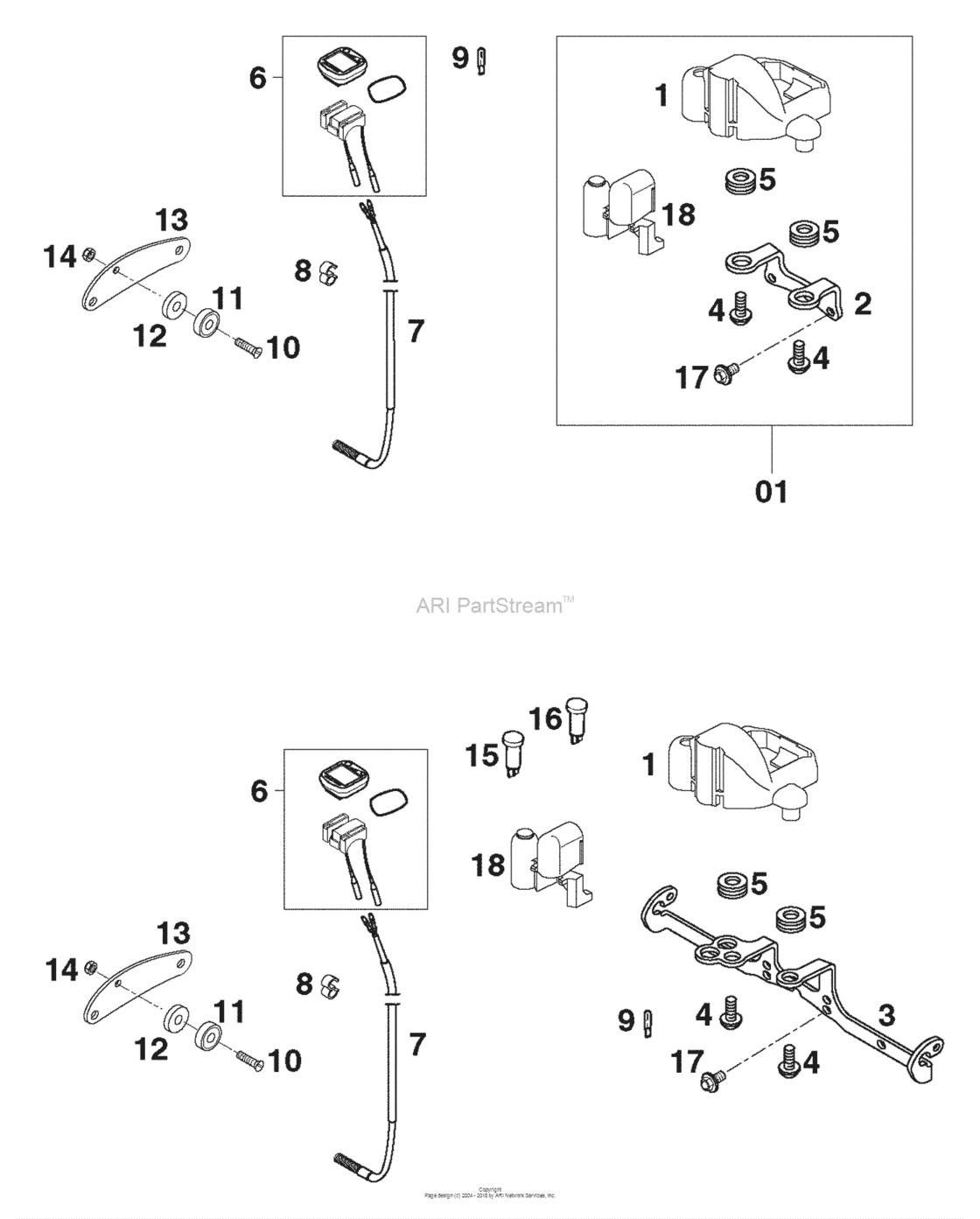

Speedometer Diagram KTM 540 540 SXC
- Year
- 1999
- Sales region
- US/EU
- Engine Capacity
- 540
- Model
- 540 SXC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
50314065244
Speedometer Sigma Sport 500 99
WS=8 |
50314065244 |
— | ||
| replacement | |||||
|
01
|
01
50314069144 SPEEDOMETER SIGMA SPORT 500 99WS=8 |
50314069144 |
US $147.29 |
||
|
1
|
1
50314065200
Speedometer Case Damped '99
WS=8 |
50314065200 |
— | ||
|
2
|
2
50314060000 Speedomet.bracket exc black'99WS=8 |
50314060000 |
US $18.39 |
||
|
3
|
3
50314061100 Speedomet.bracket egs '99WS=8 |
50314061100 |
US $11.66 |
||
|
4
|
4
0016050121
Screw for plastic 50x12
WS=8 |
0016050121 |
— | ||
| replacement | |||||
|
4
|
4
0081050121 Screw for plastic k50x12 t20WS=8 |
0081050121 |
US $1.19 |
||
|
5
|
5
31008060000 Rubber Sleeve D=8Mm OpenWS=8 |
31008060000 |
US $1.09 |
||
|
6
|
6
50314069000
Speedometer Sigma Sport 500 '99
WS=8 |
50314069000 |
— | ||
|
7
|
7
58314069151 Cable for sigma 500 '98WS=8 |
58314069151 |
US $115.80 |
||
|
8
|
8
55011022100 Clamp d=6/8mm, blackWS=8 |
55011022100 |
US $1.07 |
||
|
9
|
9
49111425000 Bulb 12V 2,3W (W2X4,6D)WS=8 |
49111425000 |
US $4.18 |
||
| replacement | |||||
|
9
|
9
49111425200 Bulb 12v 2,3w (w2x4,6d)WS=8 |
49111425200 |
US $1.96 |
||
|
10
|
10
0963040203 Flat head screw din0963-m 4x20WS=8 |
0963040203 |
US $0.39 |
||
|
11
|
11
58314069050 Magnet loose '97WS=8 |
58314069050 |
US $34.65 |
||
|
12
|
12
50232050001 Steel washer 6,4x17x3WS=8 |
50232050001 |
US $4.86 |
||
|
13
|
13
58312099073 Bracket for trippmaster sensorWS=8 |
58312099073 |
US $17.29 |
||
|
14
|
14
0985040003 Self locking nut din0985-m 4WS=8 |
0985040003 |
US $0.20 |
||
|
15
|
15
58011021200
High beam indicator light blue
WS=8 |
58011021200 |
— | ||
|
16
|
16
58011024200 Flasher indicator light greenWS=8 |
58011024200 |
US $13.35 |
||
|
17
|
17
0014060103
Hh Collar Screw M6X10 Tx30
WS=8 |
0014060103 |
— | ||
| replacement | |||||
|
17
|
17
0024060106 Hh collar screw m6x10 tx30WS=8 |
0024060106 |
US $4.35 |
||
|
18
|
18
50314065051
Speedometer Glas Blue Exc '99
WS=8 |
50314065051 |
— | ||
