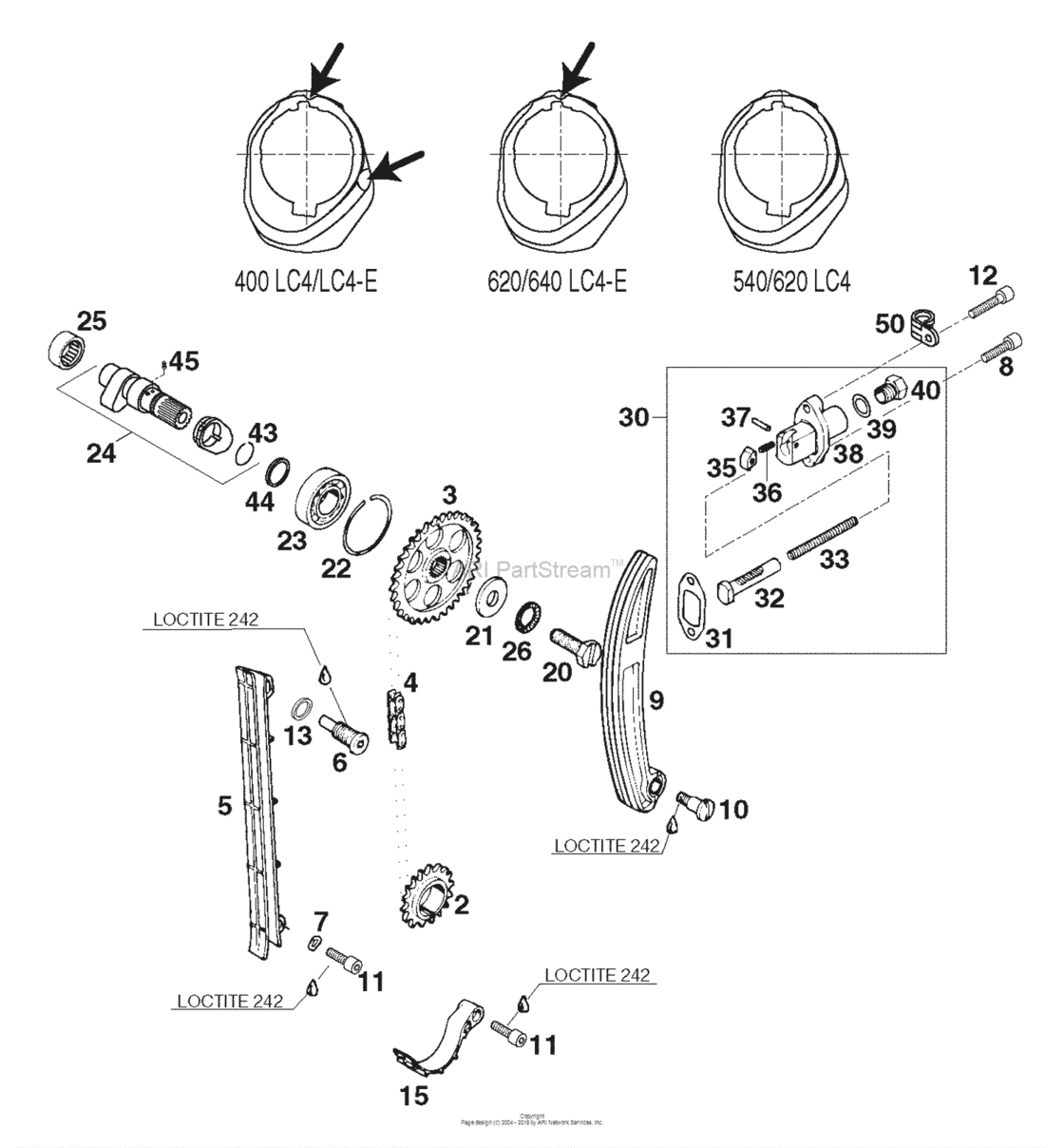

Timing Drive Diagram KTM 540 540 SXC
- Year
- 1998
- Sales region
- US/EU
- Engine Capacity
- 540
- Model
- 540 SXC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
2
|
2
58036014000 Timing gear 17-tWS=8 |
58036014000 |
US $69.12 |
||
|
3
|
3
57636011000 Camshaft gear 34-t "02" '97WS=8 |
57636011000 |
US $108.66 |
||
|
3
|
3
58336011001 Camshaft gear 34-t "01" '94WS=8 |
58336011001 |
US $100.71 |
||
|
4
|
4
57636013000
Timing chain c107c / 98 links
WS=8 |
57636013000 |
— | ||
|
4
|
4
58036013000 Timing chain c107c / 100 linksWS=8 |
58036013000 |
US $309.38 |
||
|
5
|
5
57536001000 Timing chain guideWS=8 |
57536001000 |
US $21.51 |
||
|
5
|
5
58036001000
Timing chain guide
WS=8 |
58036001000 |
— | ||
|
6
|
6
58036009000
Chain guide screw
WS=8 |
58036009000 |
— | ||
|
7
|
7
0137060000
Spring Washer Din0137-B 6
WS=8 |
0137060000 |
— | ||
| replacement | |||||
|
7
|
7
0137060003 Spring Washer Din0137-B 6WS=8 |
0137060003 |
US $0.43 |
||
|
8
|
8
0912060253 Ah Screw Din0912-M 6X25WS=8 |
0912060253 |
US $1.79 |
||
|
9
|
9
57536002000 Timing chain tensionerWS=8 |
57536002000 |
US $52.02 |
||
|
9
|
9
58036002000
Timing chain tensioner
WS=8 |
58036002000 |
— | ||
|
10
|
10
0923080120
Flat head scr. m 8x12
WS=8 |
0923080120 |
— | ||
|
11
|
11
0912060208 Ah screw din0912-m 6x20 ssWS=8 |
0912060208 |
US $4.10 |
||
|
12
|
12
0912060303 Ah screw din0912-m 6x30WS=8 |
0912060303 |
US $1.60 |
||
|
13
|
13
58038022100 Cu-seal ring 12 x 16 x 2WS=8 |
58038022100 |
US $2.09 |
||
|
15
|
15
58336018000
Securing guide
WS=8 |
58336018000 |
— | ||
|
20
|
20
58336112000 Driving screw m10x25WS=8 |
58336112000 |
US $12.75 |
||
|
21
|
21
58036012000 Steel washer 10 x 28 x 3WS=8 |
58036012000 |
US $4.61 |
||
|
22
|
22
58036096000 Circlip sb 42WS=8 |
58036096000 |
US $1.79 |
||
|
23
|
23
0625060040
Grooved ball bearing tmb004
WS=8 |
0625060040 |
— | ||
|
24
|
24
57636110044 Camshaft cpl. 400 lc4/lc4-eWS=8 |
57636110044 |
US $167.33 |
||
|
24
|
24
58336110044 Camshaft cpl. 249/1 lc4-eWS=8 |
58336110044 |
US $285.74 |
||
|
24
|
24
58336110144
Camshaft 249/ Cpl
WS=8 |
58336110144 |
— | ||
| replacement | |||||
|
24
|
24
58336010144 Camshaft 249/ cpl.WS=8 |
58336010144 |
US $270.25 |
||
|
25
|
25
58036097000 Needle bearing bk 2012WS=8 |
58036097000 |
US $18.45 |
||
|
26
|
26
36003014200 Locking washer 10mmWS=8 |
36003014200 |
US $0.48 |
||
|
30
|
30
58036003144 Autom.tensioner cpl. '88WS=8 |
58036003144 |
US $265.27 |
||
|
31
|
31
58036005100 Tensioner gasket 1,5 mmWS=8 |
58036005100 |
US $2.58 |
||
|
32
|
32
58036004100
Pressure bolt
WS=8 |
58036004100 |
— | ||
|
33
|
33
58036006100 Pressure spring 0,9mmWS=8 |
58036006100 |
US $1.39 |
||
|
35
|
35
58036007100
Ratcheting pawl
WS=8 |
58036007100 |
— | ||
|
36
|
36
58036007050 Pres.spring f.ratcheting pawlWS=8 |
58036007050 |
US $0.77 |
||
|
37
|
37
0402031780 Needle rol.din5402 nrb 3x17,8WS=8 |
0402031780 |
US $1.29 |
||
|
38
|
38
58036003100 Tensioner caseWS=8 |
58036003100 |
US $49.88 |
||
|
39
|
39
58038022000 Cu-Seal Ring Din7603-12X18X1,5WS=8 |
58038022000 |
US $1.97 |
||
|
40
|
40
58036008100 Plug m12x1,5WS=8 |
58036008100 |
US $4.64 |
||
|
43
|
43
0417200120 Circlip ws20WS=8 |
0417200120 |
US $1.19 |
||
|
44
|
44
58336015000 Stepped ringWS=8 |
58336015000 |
US $6.04 |
||
|
45
|
45
58336016052
Spring for auto-decompr. '95
WS=8 |
58336016052 |
— | ||
|
50
|
50
54211052000 Clamp rsgu 24/15WS=8 |
54211052000 |
US $11.68 |
||
