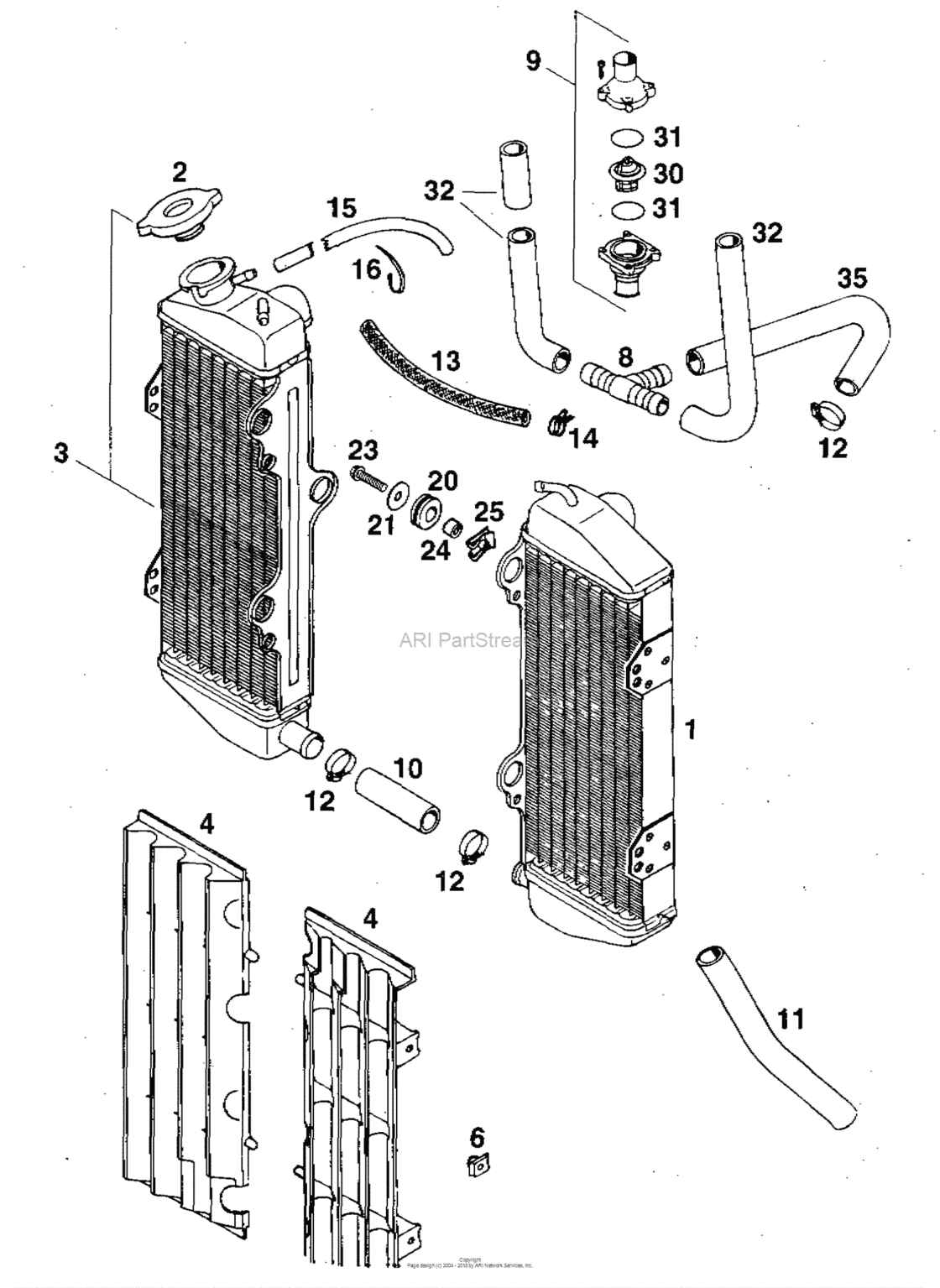

Cooling System Diagram KTM 550 MXC
- Year
- 1996
- Sales region
- US/EU
- Engine Capacity
- 550
- Model
- 550 MXC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
56535007600
Radiator l/s (4.5213) '95
(As Required) |
56535007600 |
— | ||
|
2
|
2
58035016000 Radiator Cap Small 20,3 Psi(As Required) |
58035016000 |
US $33.10 |
||
|
3
|
3
56535008600
Radiator r/s (4.5212) '95
(As Required) |
56535008600 |
— | ||
|
4
|
4
56535034600 Radiator protec.r+l/s white'95(As Required) |
56535034600 |
US $15.54 |
||
|
6
|
6
50235033300
Snap-nut holder m6 kp142
(As Required) |
50235033300 |
— | ||
| replacement | |||||
|
6
|
6
54603048100 Range Change Metal Nut M6(As Required) |
54603048100 |
US $5.27 |
||
|
8
|
8
58035026000 T-connector 19/19/19 ts 19(As Required) |
58035026000 |
US $31.30 |
||
|
9
|
9
54635013044 Thermostatcase Cpl. 55Deg. '98(As Required) |
54635013044 |
US $87.53 |
||
| replacement | |||||
|
9
|
9
54635013144 Thermostatcase cpl. 55deg. '98(As Required) |
54635013144 |
US $79.17 |
||
|
10
|
10
56535025001 Radiator hose 18x25 per metre(As Required) |
56535025001 |
US $42.30 |
||
|
11
|
11
56535025000 Preformed radiator hose 18x25(As Required) |
56535025000 |
US $22.92 |
||
|
12
|
12
10001020000 Hose Clamp 18-29(As Required) |
10001020000 |
US $4.71 |
||
|
13
|
13
54435024001 Hose Id 7,5 Per Meter(As Required) |
54435024001 |
US $27.40 |
||
|
14
|
14
50231005000 Hose clamp ydnac 10119 11mm(As Required) |
50231005000 |
US $1.68 |
||
|
15
|
15
55007016001 Pvc-hose 7x10 per meter(As Required) |
55007016001 |
US $5.98 |
||
|
16
|
16
44011076155
Superseded By 44011076200
(As Required) |
44011076155 |
— | ||
|
20
|
20
41001052000 Rubber Sleeve D=12Mm(As Required) |
41001052000 |
US $5.46 |
||
|
21
|
21
0021060003 Washer Din9021-A 6,4(As Required) |
0021060003 |
US $3.26 |
||
|
23
|
23
0015060253
Hh Collar Screw M6X25 Tx30
(As Required) |
0015060253 |
— | ||
| replacement | |||||
|
23
|
23
0025060256 Hh collar screw m6x25 tx30(As Required) |
0025060256 |
US $2.45 |
||
|
24
|
24
56535035000
Bushing 6,5 x 12 x 9
(As Required) |
56535035000 |
— | ||
|
25
|
25
54603048100 Range Change Metal Nut M6(As Required) |
54603048100 |
US $5.27 |
||
|
30
|
30
54635017000 Thermostat 55 degrees '94(As Required) |
54635017000 |
US $63.68 |
||
|
31
|
31
0770320020 O-ring 32,00x2,00(As Required) |
0770320020 |
US $2.09 |
||
|
32
|
32
58035025900 Preformed radiator hose(As Required) |
58035025900 |
US $20.74 |
||
|
35
|
35
54435025000 Radiator hose 18x25 130 degree(As Required) |
54435025000 |
US $26.54 |
||
