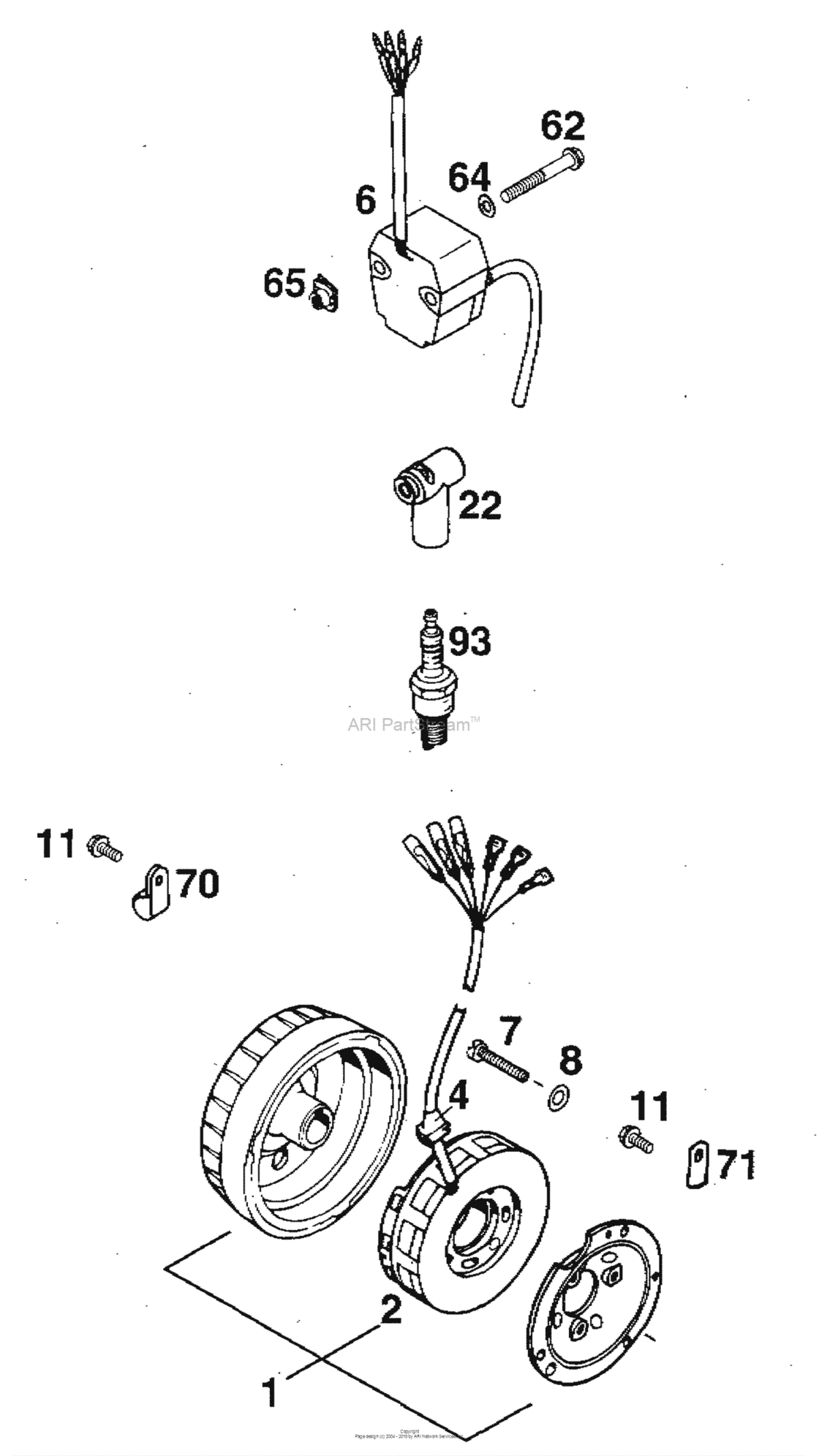

Ignition System Sem K10 Diagram KTM 550 MXC
- Year
- 1996
- Sales region
- US/EU
- Engine Capacity
- 550
- Model
- 550 MXC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
56531002000
Ignition sem k10/60 eg 13
(As Required) |
56531002000 |
— | ||
|
2
|
2
56531002051
Stator loose "6" k10/60 eg13
(As Required) |
56531002051 |
— | ||
|
4
|
4
51031004000
Cable guide
(As Required) |
51031004000 |
— | ||
|
6
|
6
54531006000
Ignition coil tm 11-09
(As Required) |
54531006000 |
— | ||
|
7
|
7
0085050303 Pan head screw din85 m5x30(As Required) |
0085050303 |
US $1.04 |
||
|
8
|
8
0125050003 Washer Din0125-A 5,3(As Required) |
0125050003 |
US $2.18 |
||
|
11
|
11
0015050123
Hh collar screw m 5x12 ws=8
(As Required) |
0015050123 |
— | ||
| replacement | |||||
|
11
|
11
0025050126 Hh collar screw m5x12 tx30(As Required) |
0025050126 |
US $3.38 |
||
|
22
|
22
54531010000 Spark Plug Protect(As Required) |
54531010000 |
US $34.54 |
||
| replacement | |||||
|
22
|
22
47039090000 Spark plug cap ngk reinforc.04(As Required) |
47039090000 |
US $24.26 |
||
|
62
|
62
0015060453
Hh collar screw m 6x45 ws=8
(As Required) |
0015060453 |
— | ||
| replacement | |||||
|
62
|
62
0025060456 Hh collar screw m6x45 tx30(As Required) |
0025060456 |
US $1.89 |
||
|
64
|
64
0137060003 Spring Washer Din0137-B 6(As Required) |
0137060003 |
US $0.43 |
||
|
65
|
65
50235033300
Snap-nut holder m6 kp142
(As Required) |
50235033300 |
— | ||
| replacement | |||||
|
65
|
65
54603048100 Range Change Metal Nut M6(As Required) |
54603048100 |
US $5.27 |
||
|
70
|
70
57013070000 Pvc-clamp 7/16" heyco 3377(As Required) |
57013070000 |
US $0.85 |
||
|
71
|
71
50031003000
Retaining plate
(As Required) |
50031003000 |
— | ||
|
93
|
93
56031093340 Spark plug ngk-b85-egv 440/550(As Required) |
56031093340 |
US $17.71 |
||
