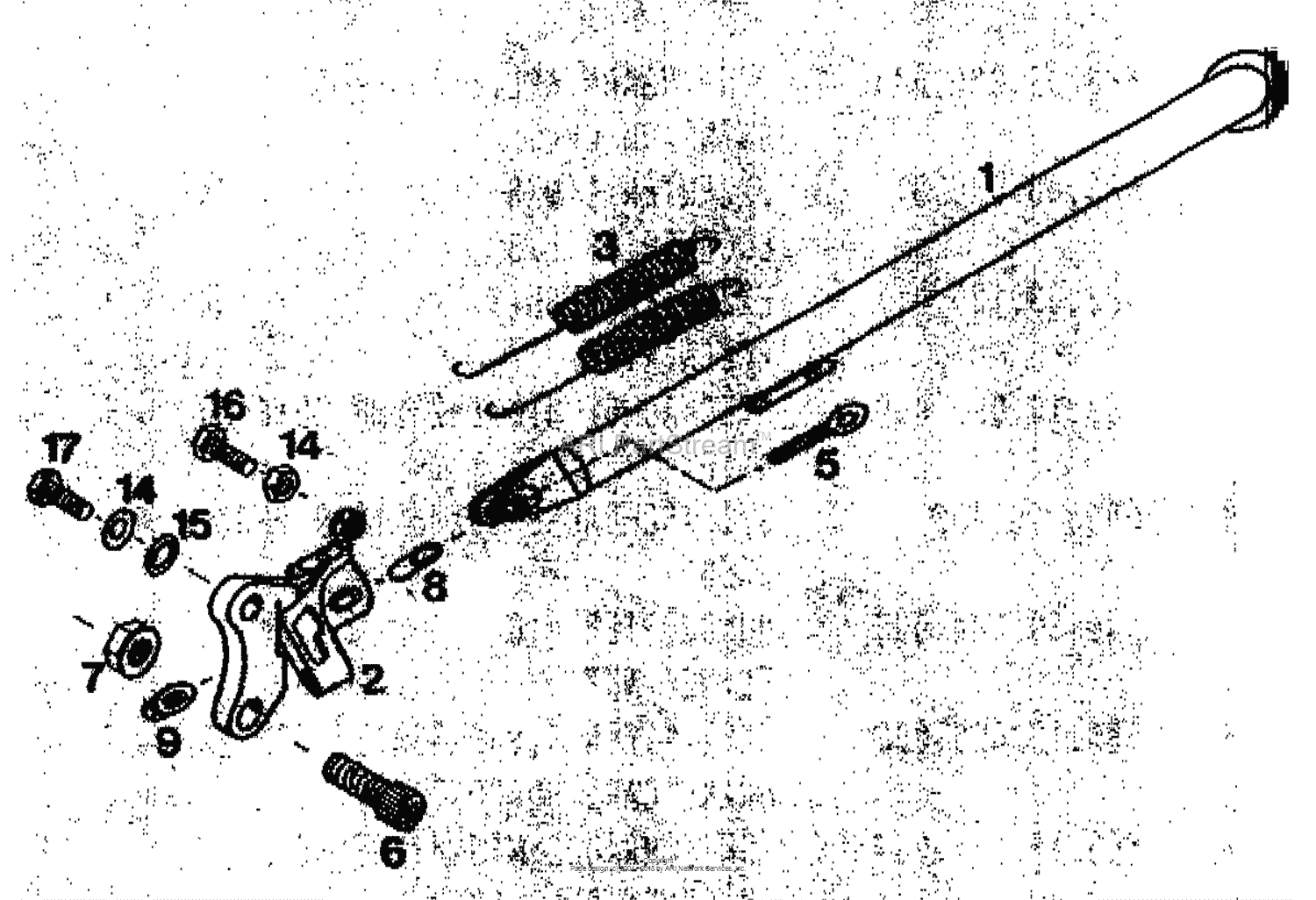

Side Stand Diagram KTM 620 620 Duke
- Year
- 1994
- Sales region
- US/EU
- Engine Capacity
- 620
- Model
- 620 Duke
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
58303023000
Side Stand
DUKE'94 |
58303023000 |
— | ||
|
2
|
2
58303026050
Side Stand Bracket
DUKE'94 |
58303026050 |
— | ||
|
3
|
3
51003021000 Sidestand spring longDUKE'94 |
51003021000 |
US $5.87 |
||
|
5
|
5
0991080353 Flat head screw din7991-m 8x35DUKE'94 |
0991080353 |
US $2.21 |
||
|
6
|
6
0984100253
A H Screw
DUKE'94 |
0984100253 |
— | ||
|
7
|
7
0331100003 Collar nut din6923-m10 ws=15SW=15 |
0331100003 |
US $2.02 |
||
|
8
|
8
57103225000 Bushing 8,2 x 12 x 10SW=15 |
57103225000 |
US $2.87 |
||
|
9
|
9
54310086000
Self Locking Nut M8 10.9
SW=15 |
54310086000 |
— | ||
| replacement | |||||
|
9
|
9
54310086200 Self Locking Nut M8 10.9SW=15 |
54310086200 |
US $1.56 |
||
|
14
|
14
0936080003 Hexagon nut din0936-m 8(As Required), SW=13 |
0936080003 |
US $0.39 |
||
|
15
|
15
0797080003 Toothlock washer din6797-j 8,4(As Required) |
0797080003 |
US $0.20 |
||
|
16
|
16
0933080163 Hh screw din933 m8x16(As Required) |
0933080163 |
US $0.85 |
||
|
17
|
17
0933080203
Hh screw din0933-m 8x20
(As Required) |
0933080203 |
— | ||
| replacement | |||||
|
17
|
17
0035080206S Ah-collar screw m8x20 isa45(As Required) |
0035080206S |
US $6.73 |
||
