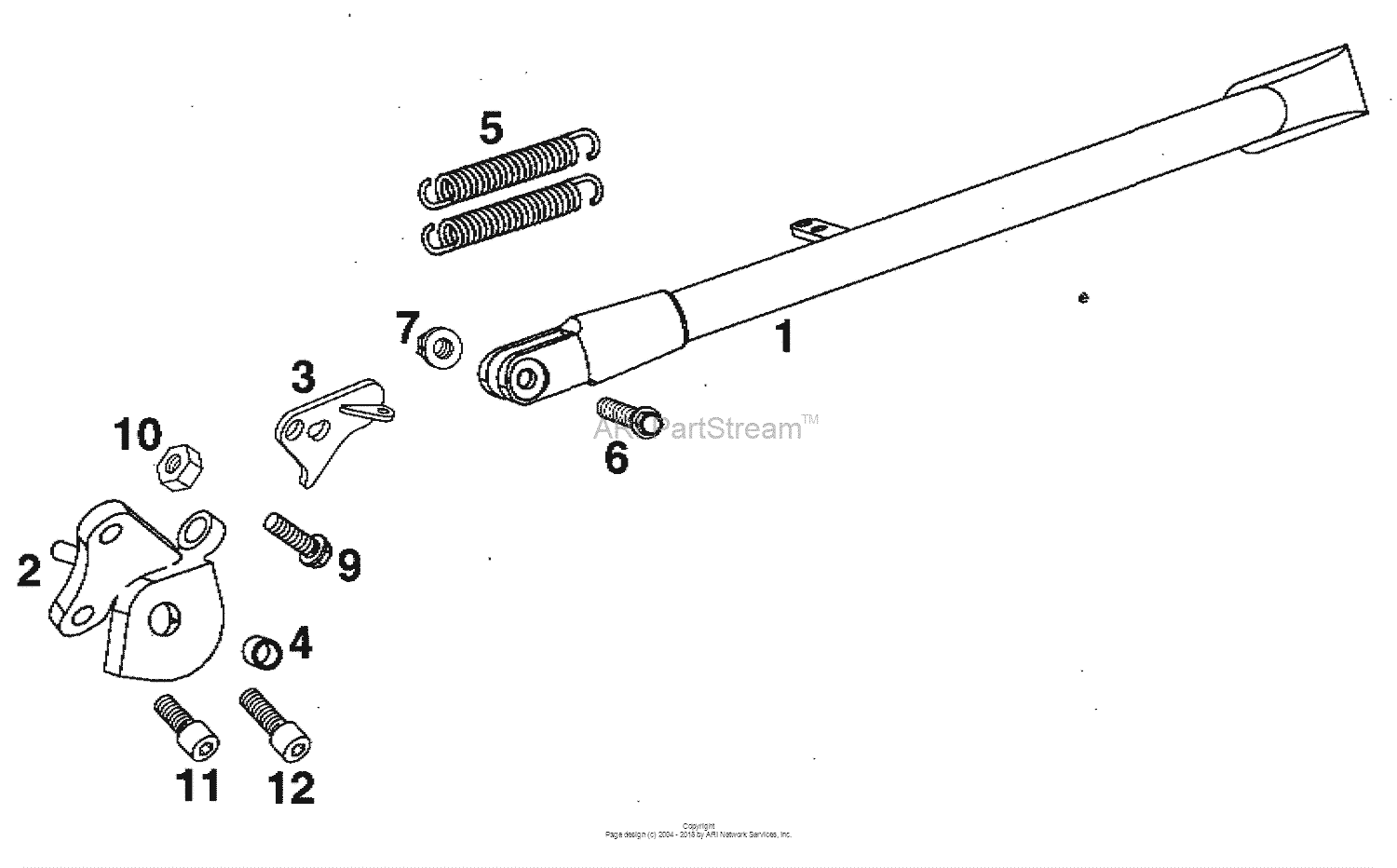

Side Stand Diagram KTM 620 620 Duke
- Year
- 1996
- Sales region
- US/EU
- Engine Capacity
- 620
- Model
- 620 Duke
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
58403023000
Side stand duke '96
96 |
58403023000 |
— | ||
|
2
|
2
58403026000 Side stand bracket duke '9696 |
58403026000 |
US $102.26 |
||
|
3
|
3
58303026154
Spring bracket duke'95
DUKE'95 |
58303026154 |
— | ||
|
4
|
4
58303023155
Bushing 8,5x13,5x12 '95
95 |
58303023155 |
— | ||
|
5
|
5
10003021000 Stand spring short95 |
10003021000 |
US $6.17 |
||
|
6
|
6
0015080353 Hh Collar Screw M 8X35 Ws=10SW=10 |
0015080353 |
US $7.12 |
||
|
7
|
7
54310086000
Self Locking Nut M8 10.9
SW=10 |
54310086000 |
— | ||
| replacement | |||||
|
7
|
7
54310086200 Self Locking Nut M8 10.9SW=10 |
54310086200 |
US $1.56 |
||
|
9
|
9
0015080203 Hh collar screw m 8x20 ws=10SW=10 |
0015080203 |
US $1.68 |
||
|
10
|
10
0934080003 Hexagon Nut Din0934-M 8SW=10 |
0934080003 |
US $3.26 |
||
|
11
|
11
0912100256 Ah screw din0912-m10x25 10.9SW=10 |
0912100256 |
US $2.53 |
||
|
12
|
12
0912100303 Ah screw din0912-m10x30SW=10 |
0912100303 |
US $2.01 |
||
