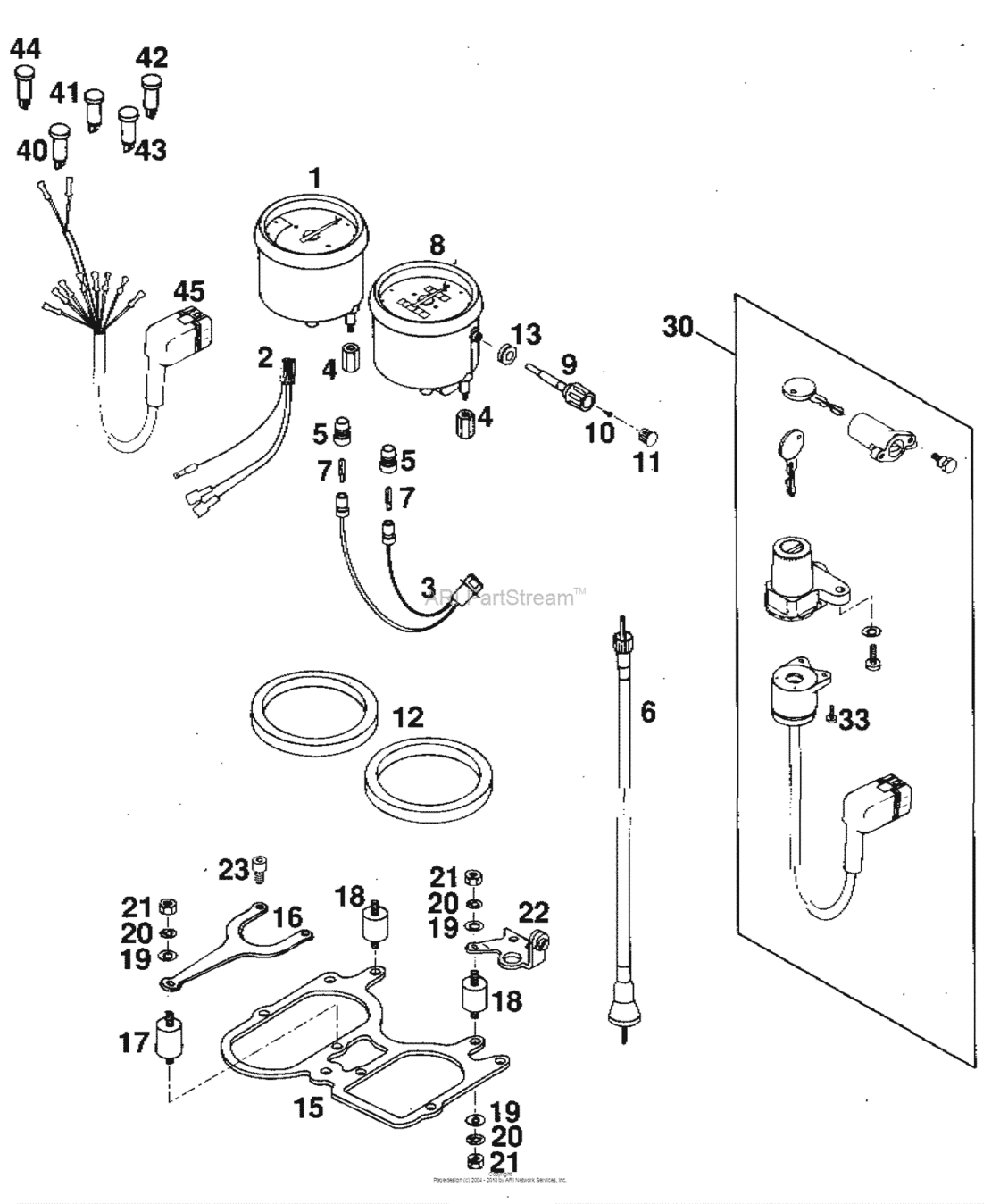

Speedometer, Tachometer Diagram KTM 620 620 Duke
- Year
- 1997
- Sales region
- US/EU
- Engine Capacity
- 620
- Model
- 620 Duke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
|
58311121100 Flasher support r/s duke'94DUKE'94 |
58311121100 |
US $20.89 |
||
|
1
|
1
58311065100
Tachometer 10000 rpm ┤96
97 |
58311065100 |
— | ||
|
2
|
2
58311065150 Cable for tachometer '9797 |
58311065150 |
US $16.69 |
||
|
3
|
3
58311029100 Instrument lights 12v97 |
58311029100 |
US $72.66 |
||
|
4
|
4
58311053000 Hexagon nut m5x15 ws=8WS=8 |
58311053000 |
US $2.53 |
||
|
5
|
5
58311088100
Reduction rubber
WS=8 |
58311088100 |
— | ||
|
6
|
6
58311188000
Speedometer cable m12/12 845mm
WS=8 |
58311188000 |
— | ||
|
7
|
7
49111425000 Bulb 12V 2,3W (W2X4,6D)WS=8 |
49111425000 |
US $4.18 |
||
| replacement | |||||
|
7
|
7
49111425200 Bulb 12v 2,3w (w2x4,6d)WS=8 |
49111425200 |
US $1.96 |
||
|
8
|
8
58311068100
Speedometer kmh duke'94
DUKE'94 |
58311068100 |
— | ||
|
8
|
8
58311068300 Speedometer miles duke'96DUKE'94 |
58311068300 |
US $138.72 |
||
|
9
|
9
58311052060 Tripmeter reset knobDUKE'94 |
58311052060 |
US $3.03 |
||
|
10
|
10
0984020051
Oval h.screw din7984-m 2x 5
DUKE'94 |
0984020051 |
— | ||
|
11
|
11
58301098100
Plastic cap 3/8" 2617
2617 |
58301098100 |
— | ||
|
12
|
12
58311054000
View Protection Tachom. Adv.02
2617 |
58311054000 |
— | ||
| replacement | |||||
|
12
|
12
58214067000 View protection tachom. adv.022617 |
58214067000 |
US $6.56 |
||
|
13
|
13
58312112000
Rubber ring 16 x 22 x 7
2617 |
58312112000 |
— | ||
|
15
|
15
58311051000
Instruments Bracket Duke'98
2617 |
58311051000 |
— | ||
| replacement | |||||
|
15
|
15
58311051100 Instruments bracket duke'982617 |
58311051100 |
US $30.18 |
||
|
16
|
16
58311051050
Bracket for instrument bracket
2617 |
58311051050 |
— | ||
|
17
|
17
54335031200
Rubber grommet 20x25-m6x10 (2)
2617 |
54335031200 |
— | ||
|
18
|
18
44012057000
Silentbl.20x20-m6x15(2)45shore
2617 |
44012057000 |
— | ||
|
19
|
19
0125060003 Washer Din0125-A 6,4(As Required) |
0125060003 |
US $0.37 |
||
|
20
|
20
0797060003 Tooth Lock Wash. Din6797-A 6,4(As Required) |
0797060003 |
US $0.29 |
||
|
21
|
21
0934060003 Hexagon Nut Din0934-M 6(As Required) |
0934060003 |
US $0.43 |
||
|
22
|
22
58311021100
Flasher support l/s duke'94
DUKE'94 |
58311021100 |
— | ||
|
23
|
23
0912060123
Ah screw din0912-m 6x12
DUKE'94 |
0912060123 |
— | ||
| replacement | |||||
|
23
|
23
0025060126 Hh collar screw m6x12 tx30DUKE'94 |
0025060126 |
US $3.96 |
||
|
30
|
30
58311066044
Lock set cpl. duke'94
DUKE'94 |
58311066044 |
— | ||
|
33
|
33
0985040123 Flat head screw din7985-m 4x12DUKE'94 |
0985040123 |
US $0.58 |
||
|
40
|
40
58011021200
High beam indicator light blue
DUKE'94 |
58011021200 |
— | ||
|
41
|
41
58011023200 Neutral indicator light greenDUKE'94 |
58011023200 |
US $10.91 |
||
|
42
|
42
58011022200
Temperature warning light red
DUKE'94 |
58011022200 |
— | ||
|
43
|
43
58011024200 Flasher indicator light greenDUKE'94 |
58011024200 |
US $13.35 |
||
|
44
|
44
58011022300 Indicator Lamp Yellow 12VDUKE'94 |
58011022300 |
US $12.19 |
||
| replacement | |||||
|
44
|
44
58011024100
Indicator lamp yellow 12v.
DUKE'94 |
58011024100 |
— | ||
|
45
|
45
58411078000
Indicator light wiring '96
96 |
58411078000 |
— | ||
