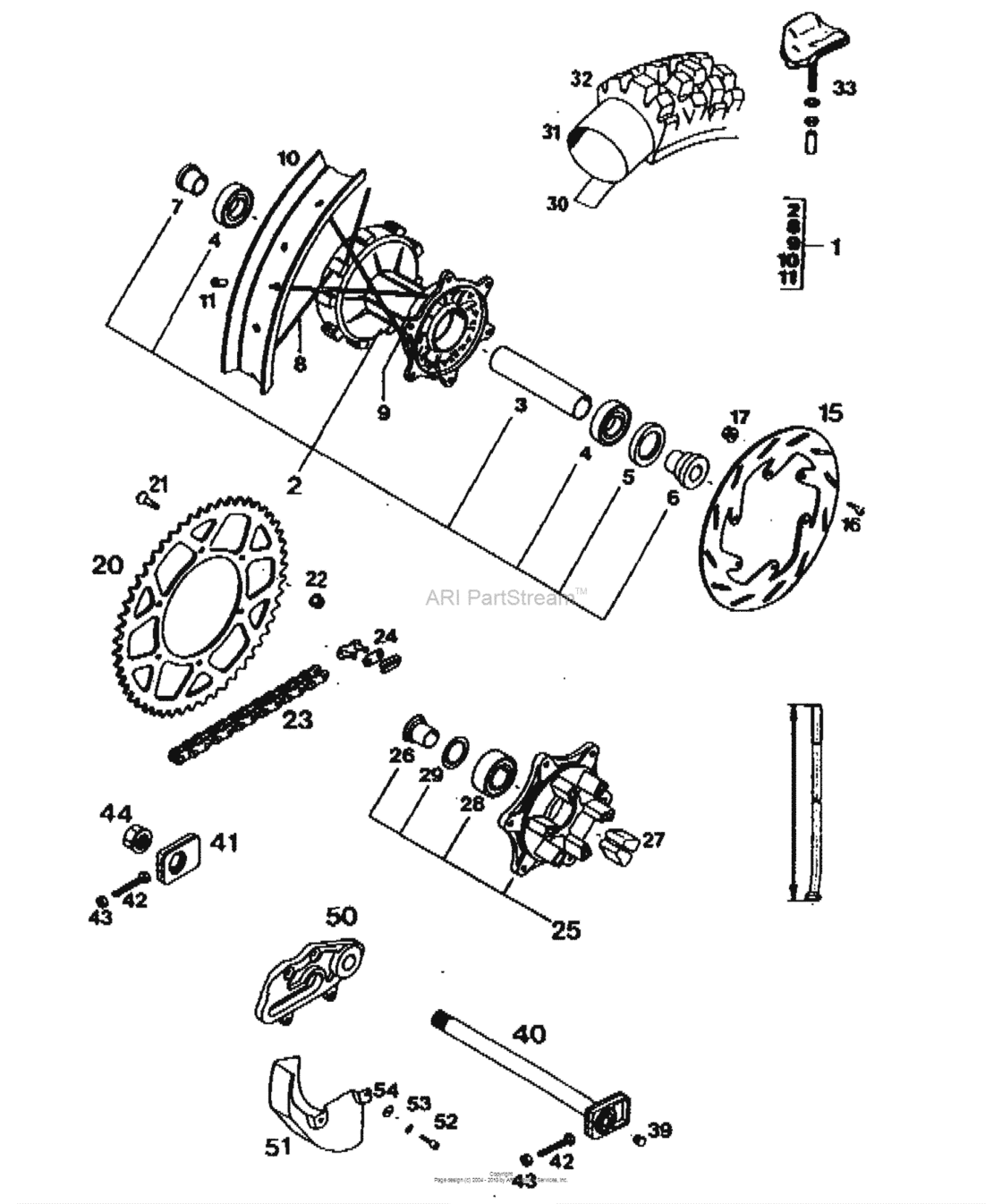

Rear Wheel Diagram KTM 620 620 EGS
- Year
- 1994
- Sales region
- US/EU
- Engine Capacity
- 620
- Model
- 620 EGS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
58310001044 Rear Wheel Cpl. Damped 2,5X18(As Required) |
58310001044 |
US $983.93 |
||
| replacement | |||||
|
1
|
1
58410001544 Rear wheel cpl. damped 2,5x18"(As Required) |
58410001544 |
US $677.54 |
||
|
2
|
2
58310010044
Rear Hub Cpl
93 |
58310010044 |
— | ||
| replacement | |||||
|
2
|
2
5841001034491 Rear Wheel Hub Damped Cpl. 0693 |
5841001034491 |
US $317.56 |
||
|
3
|
3
54610411100 Bushing Spacer Tube L=98,3Mm93 |
54610411100 |
US $20.45 |
||
| replacement | |||||
|
3
|
3
58410011000 Bushing Spacer Tube L=98,3Mm93 |
58410011000 |
US $15.67 |
||
|
4
|
4
0625062052 Gr.ball bear. 6205-2rshc3hmtf793 |
0625062052 |
US $30.99 |
||
|
5
|
5
0760325272 Shaft seal ring 32x52x7 b93 |
0760325272 |
US $16.49 |
||
|
6
|
6
54610016000
Bushing For Hub 08
93 |
54610016000 |
— | ||
| replacement | |||||
|
6
|
6
78010016000 Bushing for hub 0893 |
78010016000 |
US $29.68 |
||
|
7
|
7
54610416300 Bushing For Rear Damped Hub93 |
54610416300 |
US $18.79 |
||
|
8
|
8
54610471000 Spoke m5x223-10g 18"93 |
54610471000 |
US $4.66 |
||
|
9
|
9
58010071600
Superseded By 56510171600
93 |
58010071600 |
— | ||
|
10
|
10
58010470100
Rear rim 2,50x18" did
93 |
58010470100 |
— | ||
|
11
|
11
56509072000
Spoke Sipple Quadrax M5
Not Available
93 |
56509072000 |
— | ||
| replacement | |||||
|
11
|
11
60310072000
SPOKE NIPPLE QUADRAX M5
93 |
60310072000 |
— | ||
|
15
|
15
58010060600 Rear Brake Disk 220Mm Counters93 |
58010060600 |
US $192.27 |
||
|
16
|
16
0984060203 Ah screw din6912-m 6x20 8.893 |
0984060203 |
US $1.55 |
||
|
17
|
17
56509064000 Self Locking Nut M6 10.993 |
56509064000 |
US $1.14 |
||
| replacement | |||||
|
17
|
17
56509064100 Self Locking Nut M6 10.993 |
56509064100 |
US $1.04 |
||
|
20
|
20
54610051052 Sprocket 52 T(As Required) |
54610051052 |
US $92.53 |
||
| replacement | |||||
|
20
|
20
58310151052 Rear Sprocket 52-T(As Required) |
58310151052 |
US $84 |
||
|
20
|
20
54610051050
Rear Sprocket 50-T
(As Required) |
54610051050 |
— | ||
| replacement | |||||
|
20
|
20
58310151050 Rear Sprocket 50-T(As Required) |
58310151050 |
US $87.19 |
||
|
20
|
20
54610051048
Rear Sprocket 48-T
(As Required) |
54610051048 |
— | ||
| replacement | |||||
|
20
|
20
58310151048 Rear Sprocket 48-T(As Required) |
58310151048 |
US $87.19 |
||
|
20
|
20
54610051045
Rear Sprocket 45-T
(As Required) |
54610051045 |
— | ||
| replacement | |||||
|
20
|
20
58310151045
Rear Sprocket 45-T
(As Required) |
58310151045 |
— | ||
|
20
|
20
54610051040
Superseded By 58310151040
(As Required) |
54610051040 |
— | ||
|
21
|
21
54510052000
Counter-Sunk Screw Isa45 M8X26
(As Required) |
54510052000 |
— | ||
| replacement | |||||
|
21
|
21
0019080266S Counter-sunk screw isa45 m8x26(As Required) |
0019080266S |
US $2.23 |
||
|
22
|
22
54310086000
Self Locking Nut M8 10.9
(As Required) |
54310086000 |
— | ||
| replacement | |||||
|
22
|
22
54310086200 Self Locking Nut M8 10.9(As Required) |
54310086200 |
US $1.56 |
||
|
23
|
23
53010065001
Chain /m
(As Required) |
53010065001 |
— | ||
|
24
|
24
53010066000 Master link 5/8x1/4" o-ring(As Required) |
53010066000 |
US $10.12 |
||
|
25
|
25
58310050044 Sprocket Support Cpl(As Required) |
58310050044 |
US $197.32 |
||
|
26
|
26
54610417300 Bush. F.sprocketsupport L=25Mm(As Required) |
54610417300 |
US $15.27 |
||
|
27
|
27
54610459000 Rubber Damping Block '9191 |
54610459000 |
US $7.11 |
||
|
28
|
28
0625032057 Gr. ball bearing 3205b-2rsrtng91 |
0625032057 |
US $93.72 |
||
|
29
|
29
54610018000 Seal Washer 3205 Av91 |
54610018000 |
US $9.25 |
||
|
30
|
30
52010073000
Superseded By 51010073000
91 |
52010073000 |
— | ||
|
31
|
31
54010075000 Tube 110/100C-1891 |
54010075000 |
US $40.14 |
||
| replacement | |||||
|
31
|
31
50310075100
Hose 110/100c-18
91 |
50310075100 |
— | ||
|
32
|
32
58310074200
Tyre
91 |
58310074200 |
— | ||
|
32
|
32
57510074000
Tyre
91 |
57510074000 |
— | ||
|
32
|
32
58310074000
Tyre
(As Required) |
58310074000 |
— | ||
|
32
|
32
58010074100
Tyre
(As Required) |
58010074100 |
— | ||
|
32
|
32
54610074400
Tyre
(As Required) |
54610074400 |
— | ||
|
32
|
32
50210074500
Tyre
(As Required) |
50210074500 |
— | ||
|
33
|
33
56410100100 Rim lock vm4 (2.50")(As Required) |
56410100100 |
US $32.33 |
||
|
39
|
39
50210086000 Covering cap sfl16(As Required) |
50210086000 |
US $3.54 |
||
|
40
|
40
50210085044
Wheel spindle rear cpl.l=264mm
(As Required) |
50210085044 |
— | ||
|
41
|
41
56510084000
Superseded By 56510084100
(As Required) |
56510084000 |
— | ||
|
42
|
42
0933080404 Hh screw din0933-m 8x40 inox(As Required) |
0933080404 |
US $2.30 |
||
|
43
|
43
0934080003 Hexagon Nut Din0934-M 8(As Required) |
0934080003 |
US $3.26 |
||
|
44
|
44
54310099000 Hexagon Nut M20X1,5 '98(As Required) |
54310099000 |
US $27.71 |
||
| replacement | |||||
|
44
|
44
50310099000 Hexagon Nut M20X1,5 '98(As Required) |
50310099000 |
US $19.04 |
||
|
50
|
50
58110040500
Br calip.supp.brembo "x"'90
(As Required) |
58110040500 |
— | ||
|
51
|
51
58113081000 Cover brake disc rear(As Required) |
58113081000 |
US $26.30 |
||
|
52
|
52
0912060123
Ah screw din0912-m 6x12
(As Required) |
0912060123 |
— | ||
| replacement | |||||
|
52
|
52
0025060126 Hh collar screw m6x12 tx30(As Required) |
0025060126 |
US $3.96 |
||
|
53
|
53
0797060003 Tooth Lock Wash. Din6797-A 6,4(As Required) |
0797060003 |
US $0.29 |
||
|
54
|
54
0021060003 Washer Din9021-A 6,4(As Required) |
0021060003 |
US $3.26 |
||
