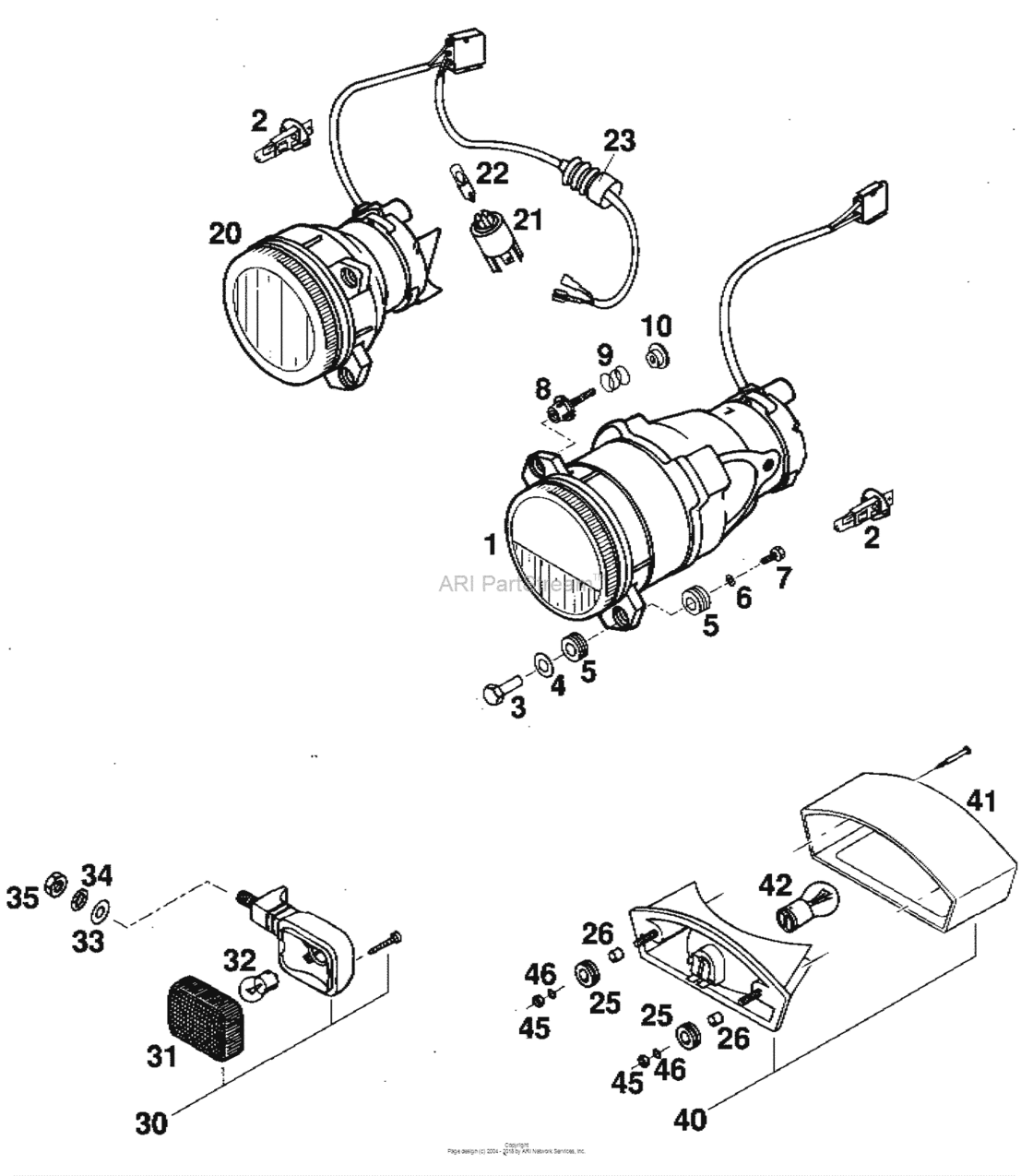

Head Light, Flasher, Rear Light Diagram KTM 620 620 EGS-E Adventure
- Year
- 1997
- Sales region
- US/EU
- Engine Capacity
- 620
- Model
- 620 EGS-E Adventure
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
|
58311112000
Flasher L/s
95 |
58311112000 |
— | ||
|
1
|
1
58311010000 Headlight low beam duke'94DUKE '94 |
58311010000 |
US $261.65 |
||
|
2
|
2
58311038000 Bulb h1 12v 55w whiteDUKE '94 |
58311038000 |
US $17.51 |
||
|
3
|
3
58311044000 Special nut m5x25 ws=10WS=10 |
58311044000 |
US $6.36 |
||
|
4
|
4
0125080003 Washer din0125-a 8,4WS=10 |
0125080003 |
US $2.02 |
||
|
5
|
5
31008060000 Rubber Sleeve D=8Mm OpenWS=10 |
31008060000 |
US $1.09 |
||
|
6
|
6
0797050003 Tooth lock wash. din6797-j 5,3WS=10 |
0797050003 |
US $0.27 |
||
|
7
|
7
0933050123 Hh screw din0933-m 5x12WS=10 |
0933050123 |
US $0.31 |
||
|
8
|
8
58311011000 Adjusting screw m5x30 cpl.WS=10 |
58311011000 |
US $3.50 |
||
|
9
|
9
12003007052
Spring l=16mm
WS=10 |
12003007052 |
— | ||
|
10
|
10
54603073000 Collar bushing 5 x 10 x 6 aluWS=10 |
54603073000 |
US $2.60 |
||
|
20
|
20
58311110000 Headlight highbeam duke '9494 |
58311110000 |
US $119.80 |
||
|
21
|
21
58311039000 Bulb socket ba9s94 |
58311039000 |
US $5.30 |
||
|
22
|
22
44111005100 Bulb 12v 2w ba9s94 |
44111005100 |
US $4.54 |
||
|
23
|
23
58302126000 Clutch lever boot '9595 |
58302126000 |
US $3.91 |
||
|
25
|
25
31008060000 Rubber Sleeve D=8Mm Open95 |
31008060000 |
US $1.09 |
||
|
26
|
26
58011039000 Spacer bushing 6,5 x 8 x 795 |
58011039000 |
US $1.79 |
||
|
30
|
30
58311012000
Flasher R/s
95 |
58311012000 |
— | ||
|
31
|
31
58311013000 Flasher lens l/s and r/s95 |
58311013000 |
US $6.68 |
||
|
32
|
32
44111015100 Bulb 12v 10w (ba15s)95 |
44111015100 |
US $2.30 |
||
|
33
|
33
0125100003 Washer Din0125-A10,595 |
0125100003 |
US $1.19 |
||
|
34
|
34
0797100003 Lock washer din6797-j10,5 zi95 |
0797100003 |
US $0.65 |
||
|
35
|
35
0934102003 Hexagon nut din0934-m10x1,2595 |
0934102003 |
US $1.04 |
||
|
40
|
40
58311040000 Rear Light Cpl. Cev 358 '9393 |
58311040000 |
US $45.66 |
||
|
41
|
41
58311041000 Lens '9393 |
58311041000 |
US $24.43 |
||
|
42
|
42
57011045000 Bulb 12V 21/5W (Bay15S)Reinfo93 |
57011045000 |
US $15.37 |
||
| replacement | |||||
|
42
|
42
58414042000 Bulb 12V 21/5W (Bay15S)Reinfo93 |
58414042000 |
US $12.56 |
||
|
45
|
45
0985060003 Self Lock. Nut Din0985-M 693 |
0985060003 |
US $2.60 |
||
|
46
|
46
0021060003 Washer Din9021-A 6,493 |
0021060003 |
US $3.26 |
||
