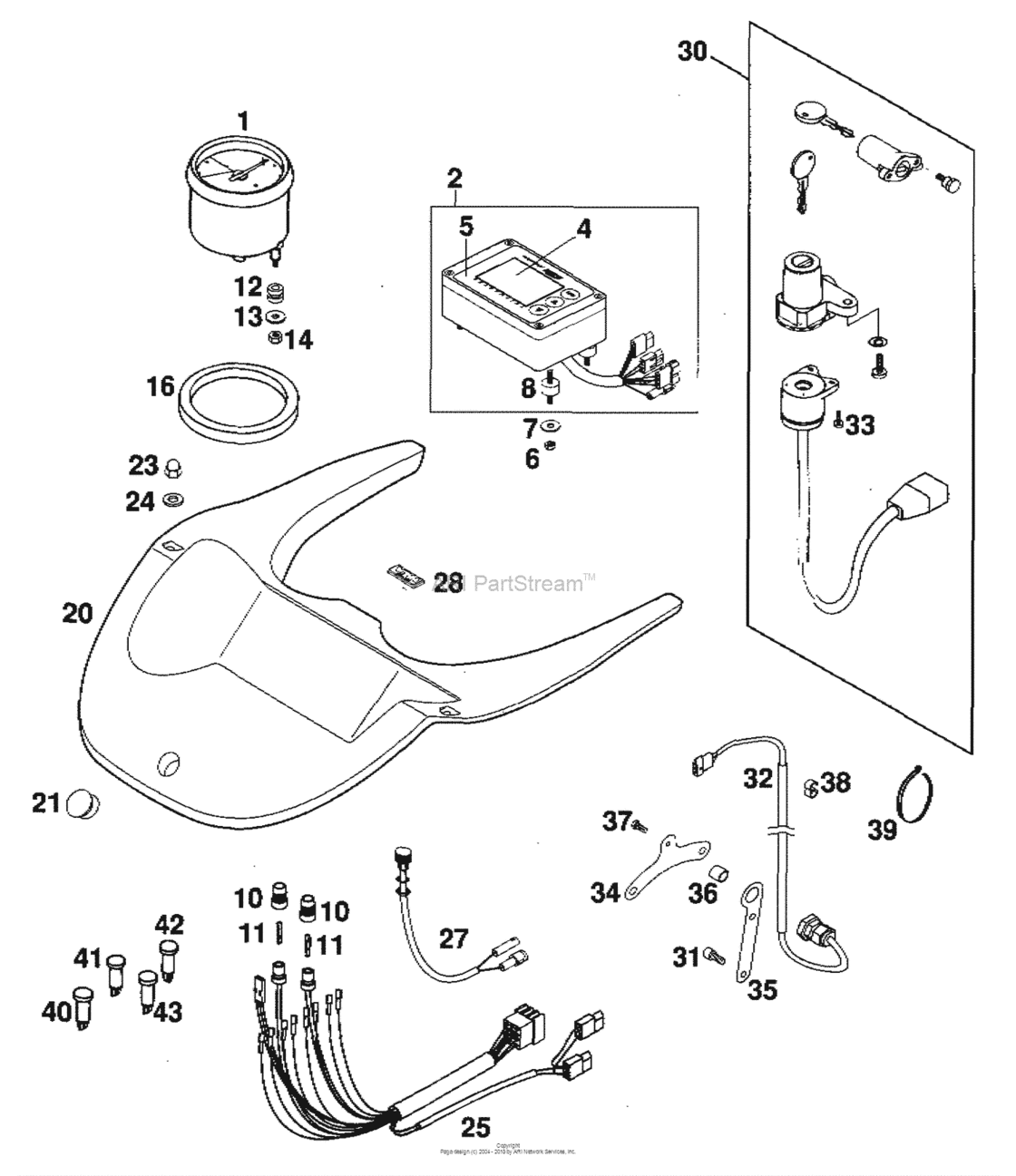

Tachometer, Trippmaster Diagram KTM 620 620 EGS-E Adventure
- Year
- 1997
- Sales region
- US/EU
- Engine Capacity
- 620
- Model
- 620 EGS-E Adventure
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
|
44011076200 Cable tie 200/3,6mm black(AsRequired) |
44011076200 |
US $0.39 |
||
|
1
|
1
58214075000
Tachometer 10000 Rpm Adv
97 |
58214075000 |
— | ||
| replacement | |||||
|
1
|
1
58714075044
Rev count. tuning adv. 97-00
97 |
58714075044 |
— | ||
|
2
|
2
58212085000
Tripmaster imo-100r cpl. '97
97 |
58212085000 |
— | ||
|
4
|
4
58212085050
Display lens for tripm.adv.'97
97 |
58212085050 |
— | ||
|
5
|
5
58212085051
Keyboard foil f.tripm. adv.'97
97 |
58212085051 |
— | ||
|
6
|
6
0985040003 Self locking nut din0985-m 497 |
0985040003 |
US $0.20 |
||
|
7
|
7
0021040003 Washer din9021-a 4,397 |
0021040003 |
US $0.29 |
||
|
8
|
8
58212085052
Rubber grommet 15x8-m4x10 (2)
97 |
58212085052 |
— | ||
|
10
|
10
58311088100
Reduction rubber
97 |
58311088100 |
— | ||
|
11
|
11
49111425000 Bulb 12V 2,3W (W2X4,6D)97 |
49111425000 |
US $4.18 |
||
| replacement | |||||
|
11
|
11
49111425200 Bulb 12v 2,3w (w2x4,6d)97 |
49111425200 |
US $1.96 |
||
|
12
|
12
58214079000 Rubber for tachometer adv.'9797 |
58214079000 |
US $1.82 |
||
|
13
|
13
0021050003 Washer din9021-a 5,397 |
0021050003 |
US $1.29 |
||
|
14
|
14
0985050003 Self Locking Nut Din0985-M 597 |
0985050003 |
US $3.26 |
||
|
16
|
16
58311054000
View Protection Tachom. Adv.02
97 |
58311054000 |
— | ||
| replacement | |||||
|
16
|
16
58214067000 View protection tachom. adv.0297 |
58214067000 |
US $6.56 |
||
|
20
|
20
58214070000 Cockpit cover adventure '9797 |
58214070000 |
US $393.92 |
||
|
21
|
21
71001012000
Pvc Cap D=22Mm
97 |
71001012000 |
— | ||
| replacement | |||||
|
21
|
21
71001012100 Pvc cap d=22mm97 |
71001012100 |
US $2.11 |
||
|
23
|
23
0587060001 Hh cap nut din1587-m 6 black97 |
0587060001 |
US $1.79 |
||
|
24
|
24
56032005100 Washer 6x17x1,5 black97 |
56032005100 |
US $1.02 |
||
|
25
|
25
58211078000
Wiring har. f.controls adv.'97
97 |
58211078000 |
— | ||
|
27
|
27
58212083000 Contrast potentiometer adv.'9797 |
58212083000 |
US $100.35 |
||
|
28
|
28
58214071000
Plate "ktm" for adventur '97
97 |
58214071000 |
— | ||
|
30
|
30
58211066000
Ignition-helmet lock adv. '97
97 |
58211066000 |
— | ||
|
31
|
31
0912050103 Ah Screw Din0912-M 5X1097 |
0912050103 |
US $0.54 |
||
|
32
|
32
58212084000 Sensor cable cpl. adventure'9797 |
58212084000 |
US $133.47 |
||
|
33
|
33
0985040123 Flat head screw din7985-m 4x1297 |
0985040123 |
US $0.58 |
||
|
34
|
34
58214050050 Bracket sensor magnet adv. '9797 |
58214050050 |
US $10.46 |
||
|
35
|
35
58214050051
Bracket for sensor adv. '97
97 |
58214050051 |
— | ||
|
36
|
36
58214050052 Sensor magnet for adventure'9797 |
58214050052 |
US $24.99 |
||
|
37
|
37
0933040083 Hh screw din0933-m 4x 897 |
0933040083 |
US $0.85 |
||
|
38
|
38
55011022000 Clamp d=6/8mm, black(AsRequired) |
55011022000 |
US $0.73 |
||
|
39
|
39
44011076100 Cable tie 100/2,5mm black(AsRequired) |
44011076100 |
US $0.39 |
||
| replacement | |||||
|
39
|
39
44011076140 Cable tie 140/2,5mm black(AsRequired) |
44011076140 |
US $0.29 |
||
|
40
|
40
58011021200
High beam indicator light blue
(AsRequired) |
58011021200 |
— | ||
|
41
|
41
58011023200 Neutral indicator light green(AsRequired) |
58011023200 |
US $10.91 |
||
|
42
|
42
58011022200
Temperature warning light red
(AsRequired) |
58011022200 |
— | ||
|
43
|
43
58011024200 Flasher indicator light green(AsRequired) |
58011024200 |
US $13.35 |
||
