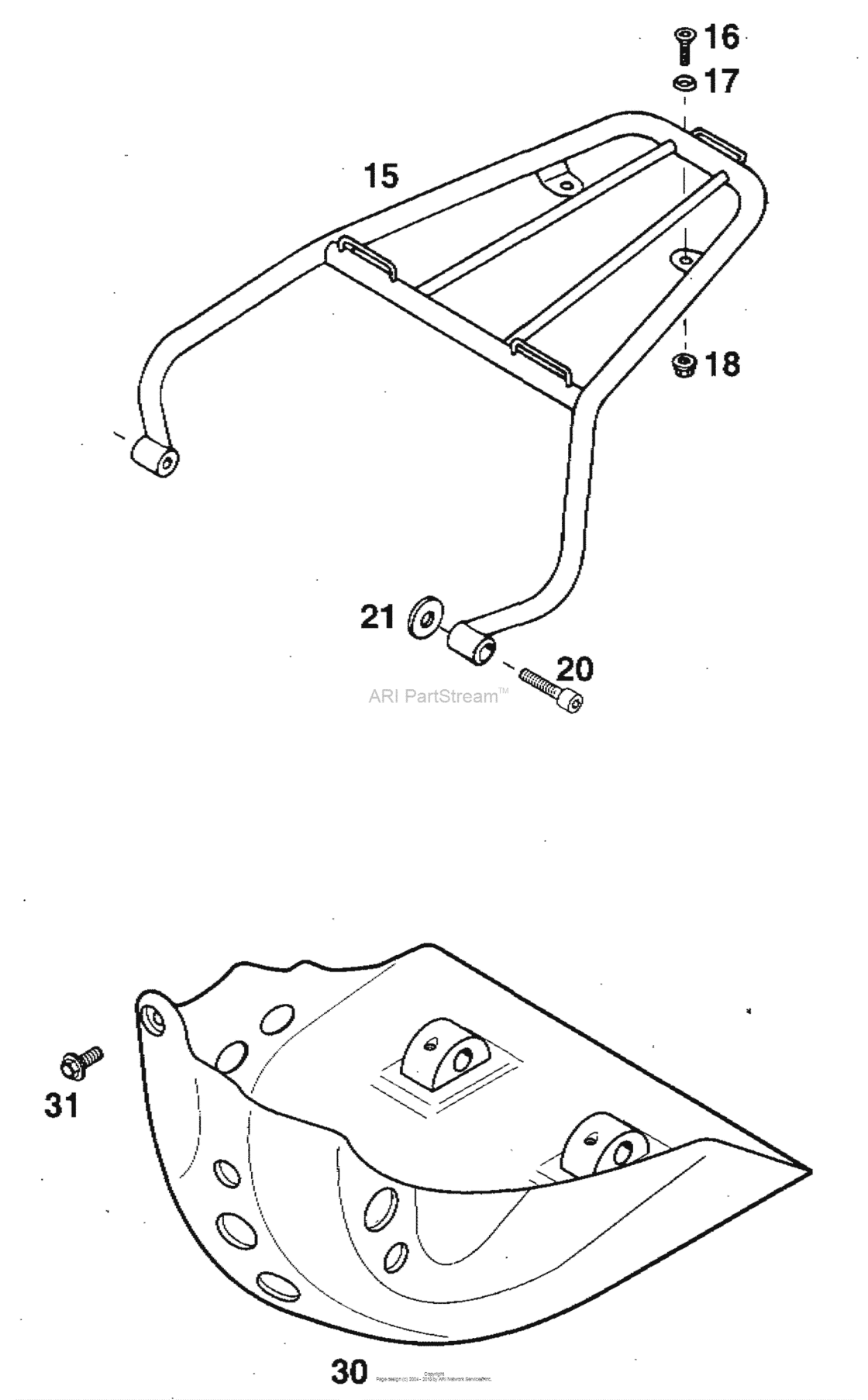

*accessories Diagram KTM 620 620 EXC
- Year
- 1996
- Sales region
- US/EU
- Engine Capacity
- 620
- Model
- 620 EXC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
15
|
15
58312011000 Baggage carrier '93(As Required) |
58312011000 |
US $181.97 |
||
|
16
|
16
0991060203 Flat Head Din7991-M 6X20(As Required) |
0991060203 |
US $2.99 |
||
| replacement | |||||
|
16
|
16
0991060202 Flat head din7991-m 6x20(As Required) |
0991060202 |
US $3.26 |
||
|
17
|
17
40006006000 Washer 6mm(As Required) |
40006006000 |
US $2.18 |
||
|
18
|
18
56509064000 Self Locking Nut M6 10.9(As Required) |
56509064000 |
US $1.14 |
||
| replacement | |||||
|
18
|
18
56509064100 Self Locking Nut M6 10.9(As Required) |
56509064100 |
US $1.04 |
||
|
20
|
20
0912060303 Ah screw din0912-m 6x30(As Required) |
0912060303 |
US $1.60 |
||
|
21
|
21
50232050001 Steel washer 6,4x17x3(As Required) |
50232050001 |
US $4.86 |
||
|
30
|
30
58303005044 Skid Plate Plastic(As Required) |
58303005044 |
US $122.79 |
||
| replacement | |||||
|
30
|
30
58303005244
Skid plate plastic
(As Required) |
58303005244 |
— | ||
|
31
|
31
0014060133
Hh collar screw m 6x13 ws=8
(As Required) |
0014060133 |
— | ||
| replacement | |||||
|
31
|
31
0024060136 Hh collar screw m6x13 tx30(As Required) |
0024060136 |
US $2.09 |
||
