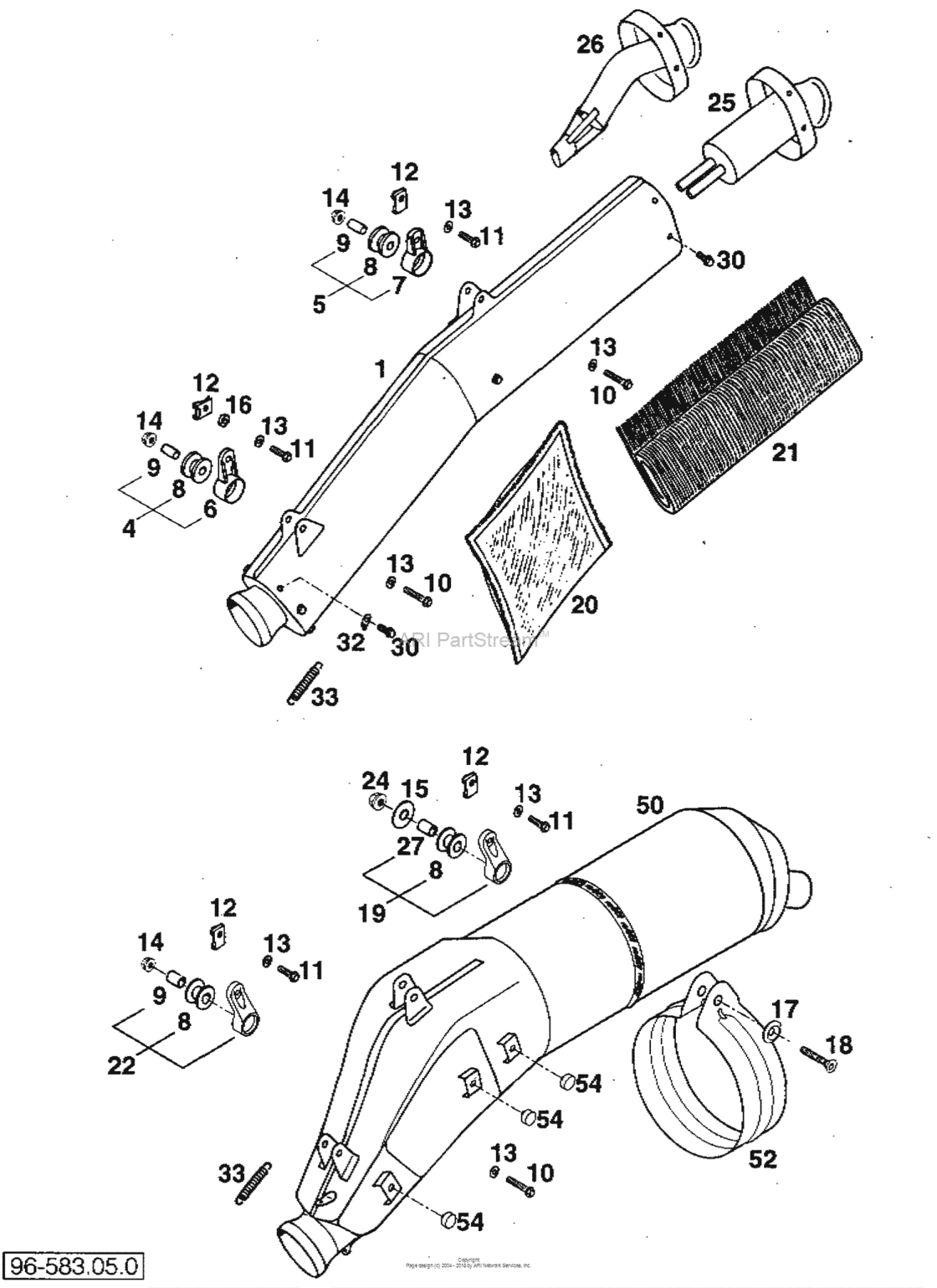

Exhaust Silencer Diagram KTM 620 620 EXC
- Year
- 1996
- Sales region
- US/EU
- Engine Capacity
- 620
- Model
- 620 EXC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
|
58005079055
Muffler Packing
(As Required) |
58005079055 |
— | ||
|
1
|
1
58305079000
Silencer Comp
(As Required) |
58305079000 |
— | ||
|
1
|
1
58305179000
Silencer "ktm hxc" '93
(As Required) |
58305179000 |
— | ||
|
4
|
4
54305065244 Sil. Bracket Cpl. Long Silicon(As Required) |
54305065244 |
US $28.88 |
||
|
5
|
5
54305065144
Superseded By 54305065344
(As Required) |
54305065144 |
— | ||
|
6
|
6
54305065000
Sil. Bracket Cpl. Long Silicon
(As Required) |
54305065000 |
— | ||
| replacement | |||||
|
6
|
6
54305065244 Sil. Bracket Cpl. Long Silicon(As Required) |
54305065244 |
US $28.88 |
||
|
7
|
7
54305065100
Silencer Bracket
(As Required) |
54305065100 |
— | ||
|
8
|
8
54305068100 Damp. component silicone grey(As Required) |
54305068100 |
US $14.26 |
||
|
9
|
9
54305069000 Bushing 7x12x15,4(As Required) |
54305069000 |
US $3.33 |
||
|
10
|
10
0015060303
Hh Collar Screw M6X30 Tx30
(As Required) |
0015060303 |
— | ||
| replacement | |||||
|
10
|
10
0025060306 Hh collar screw m6x30 tx30(As Required) |
0025060306 |
US $3.96 |
||
|
11
|
11
0015060203
Hh Collar Screw M 6X20 Ws=8
(As Required) |
0015060203 |
— | ||
| replacement | |||||
|
11
|
11
0025060206 Hh collar screw m6x20 tx30(As Required) |
0025060206 |
US $1.97 |
||
|
12
|
12
54603048100 Range Change Metal Nut M6(As Required) |
54603048100 |
US $5.27 |
||
|
13
|
13
0137060003 Spring Washer Din0137-B 6(As Required) |
0137060003 |
US $0.43 |
||
|
14
|
14
56509064000 Self Locking Nut M6 10.9(As Required) |
56509064000 |
US $1.14 |
||
| replacement | |||||
|
14
|
14
56509064100 Self Locking Nut M6 10.9(As Required) |
56509064100 |
US $1.04 |
||
|
15
|
15
0021080003 Washer din9021-a 8,4(As Required) |
0021080003 |
US $2.18 |
||
|
16
|
16
50232050001 Steel washer 6,4x17x3(As Required) |
50232050001 |
US $4.86 |
||
|
17
|
17
58303061000 Special washer alu 8 x 24 mm(As Required) |
58303061000 |
US $6.73 |
||
|
18
|
18
0991080353 Flat head screw din7991-m 8x35(As Required) |
0991080353 |
US $2.21 |
||
|
19
|
19
58305165144 Silencer bracket cpl. short(As Required) |
58305165144 |
US $31.18 |
||
|
20
|
20
58005079056 Stuffing yarn loose 300 gramm(As Required) |
58005079056 |
US $132.63 |
||
|
21
|
21
58005078108
Stuffing Yarn
(As Required) |
58005078108 |
— | ||
|
22
|
22
58305165244 Silencer bracket cpl. short'96(As Required) |
58305165244 |
US $32.03 |
||
|
24
|
24
54310086000
Self Locking Nut M8 10.9
(As Required) |
54310086000 |
— | ||
| replacement | |||||
|
24
|
24
54310086200 Self Locking Nut M8 10.9(As Required) |
54310086200 |
US $1.56 |
||
|
25
|
25
58305179080
Superseded By 58305179180
(As Required) |
58305179080 |
— | ||
|
26
|
26
58305079080
End Cap
(As Required) |
58305079080 |
— | ||
|
27
|
27
56505069000 Spacer bushing 8,4x12x16(As Required) |
56505069000 |
US $3.49 |
||
|
30
|
30
0009050103
Special screw m 5,0x10
(As Required) |
0009050103 |
— | ||
| replacement | |||||
|
30
|
30
0009050106 Ejot Spiral Screw Sf M5X10-K(As Required) |
0009050106 |
US $2.60 |
||
|
32
|
32
51005074000 Retaining plate(As Required) |
51005074000 |
US $2.11 |
||
|
33
|
33
51005063000 Tension spring l=55mm(As Required) |
51005063000 |
US $5.63 |
||
|
50
|
50
58305080300
Silencer 96
(As Required) |
58305080300 |
— | ||
|
52
|
52
58305161100
Retaining clamp f. silencer'96
(As Required) |
58305161100 |
— | ||
|
54
|
54
54308042000 Rubber Buffer(As Required) |
54308042000 |
US $2.89 |
||
