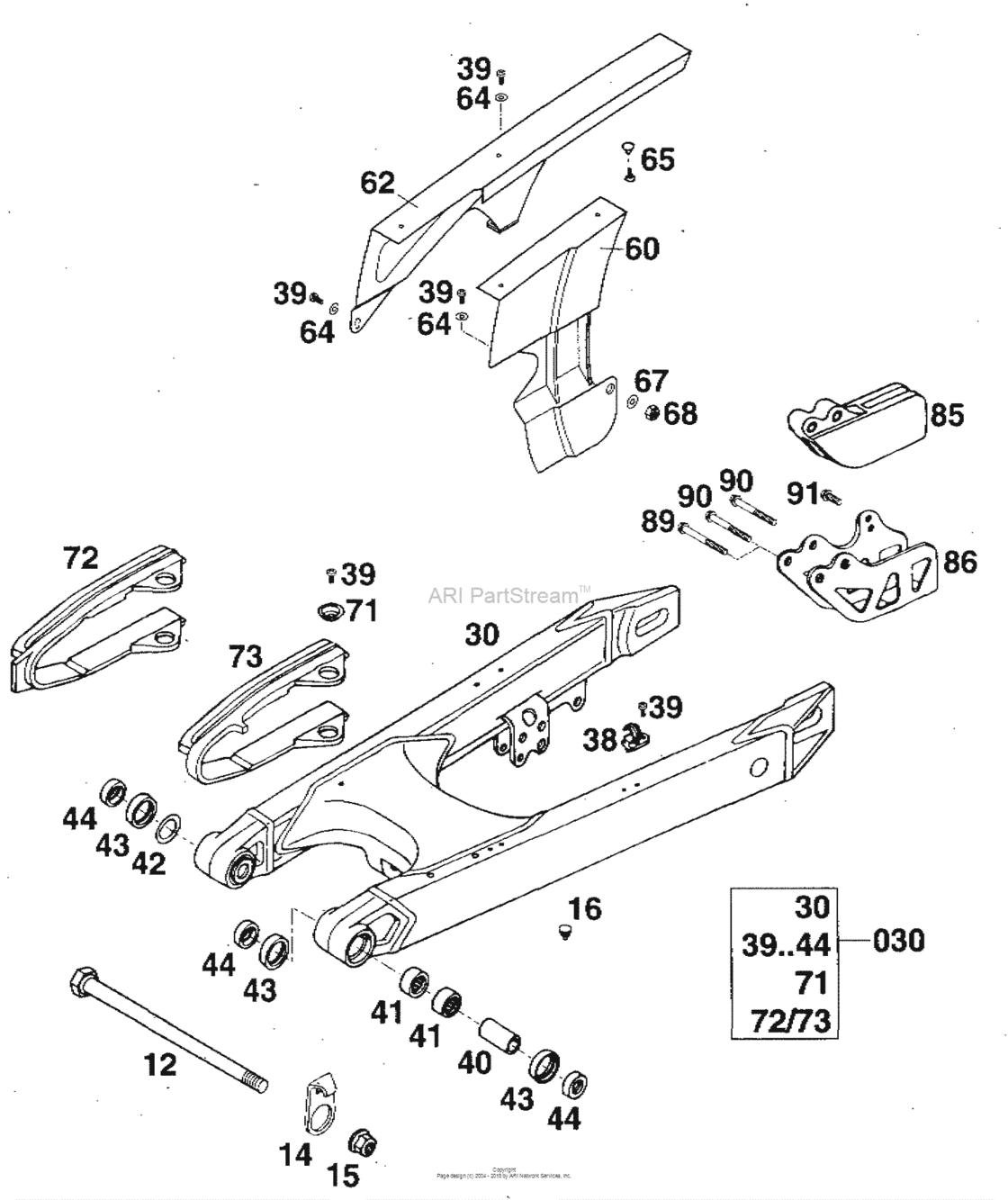

Swingarm, Chain Guard Diagram KTM 620 620 EXC
- Year
- 1996
- Sales region
- US/EU
- Engine Capacity
- 620
- Model
- 620 EXC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
12
|
12
54603014000 Swingarm Bolt Kpl. L=253(As Required) |
54603014000 |
US $91.09 |
||
| replacement | |||||
|
12
|
12
54603014100 Swingarm bolt kpl. l=253(As Required) |
54603014100 |
US $38.78 |
||
|
14
|
14
50230211000
Brake hose guide '89
(As Required) |
50230211000 |
— | ||
|
15
|
15
54603015000 Self locking nut m14x1,5 ws=19(As Required) |
54603015000 |
US $4.85 |
||
|
16
|
16
54403135000 Plastic cap sfl10(As Required) |
54403135000 |
US $1.31 |
||
|
30
|
30
58303030100
Superseded By 58303030144
(As Required) |
58303030100 |
— | ||
|
30
|
30
58303130200
Superseded By 58303130244
(As Required) |
58303130200 |
— | ||
|
30
|
30
58303030144
Swingarm cpl. 570mm "4" '94
(As Required) |
58303030144 |
— | ||
|
30
|
30
58303130244
Superseded By Multiple Items
(As Required) |
58303130244 |
— | ||
|
38
|
38
54611076000 Retaining clamp for brake hose(As Required) |
54611076000 |
US $0.99 |
||
|
38
|
38
54611076100 Retain.clamp For Brake Hose'96(As Required) |
54611076100 |
US $1.09 |
||
|
39
|
39
0010050103 Special Screw M 5,0X10(As Required) |
0010050103 |
US $0.85 |
||
|
40
|
40
50203081700 Bushing sleeve 15x20x38,75(As Required) |
50203081700 |
US $17.27 |
||
|
41
|
41
50203097000 Needle Bush Hk2012V(As Required) |
50203097000 |
US $16.08 |
||
| replacement | |||||
|
41
|
41
59004031000 Needle bush hk2012v(As Required) |
59004031000 |
US $9.88 |
||
|
42
|
42
54603036000 Stop Disk 22,2X31,7X1(As Required) |
54603036000 |
US $1.55 |
||
|
43
|
43
0760253270 Shaft seal ring 25x32x7(As Required) |
0760253270 |
US $6.51 |
||
|
44
|
44
54603090000 Bucket f.shaftsealring 15x25x9(As Required) |
54603090000 |
US $11.63 |
||
|
60
|
60
58307060000 Chainguard small '96(As Required) |
58307060000 |
US $23.10 |
||
|
62
|
62
58307060050 Chainguard Large 03(As Required) |
58307060050 |
US $25.57 |
||
| replacement | |||||
|
62
|
62
58307060250 Chainguard large 03(As Required) |
58307060250 |
US $7.75 |
||
|
64
|
64
0125050003 Washer Din0125-A 5,3(As Required) |
0125050003 |
US $2.18 |
||
|
65
|
65
20012062055 Hollow rivet two parts(As Required) |
20012062055 |
US $2.87 |
||
|
67
|
67
0125060003 Washer Din0125-A 6,4(As Required) |
0125060003 |
US $0.37 |
||
|
68
|
68
0985060003 Self Lock. Nut Din0985-M 6(As Required) |
0985060003 |
US $2.60 |
||
|
71
|
71
72210079000 Bucket(As Required) |
72210079000 |
US $2.72 |
||
|
72
|
72
50207073000
Chain sliding guard '92
(As Required) |
50207073000 |
— | ||
|
73
|
73
58307073100 Chain sliding component '96(As Required) |
58307073100 |
US $30.57 |
||
|
85
|
85
54607066100 Chain Guide Rear '94(As Required) |
54607066100 |
US $41.46 |
||
|
86
|
86
50207070000
Retain Plate
(As Required) |
50207070000 |
— | ||
| replacement | |||||
|
86
|
86
50207070044
RETAINING PLATE CHAIN GUIDE'94
(As Required) |
50207070044 |
— | ||
|
89
|
89
0015060553 Hh collar screw m 6x55 ws=8(As Required) |
0015060553 |
US $2.09 |
||
|
90
|
90
0015060503
Hh collar screw m 6x50 ws=8
(As Required) |
0015060503 |
— | ||
| replacement | |||||
|
90
|
90
0025060506 Hh collar screw m6x50 tx30(As Required) |
0025060506 |
US $3.30 |
||
|
91
|
91
0015060163 Hh Collar Screw M 6X16 Ws=8(As Required) |
0015060163 |
US $2.23 |
||
