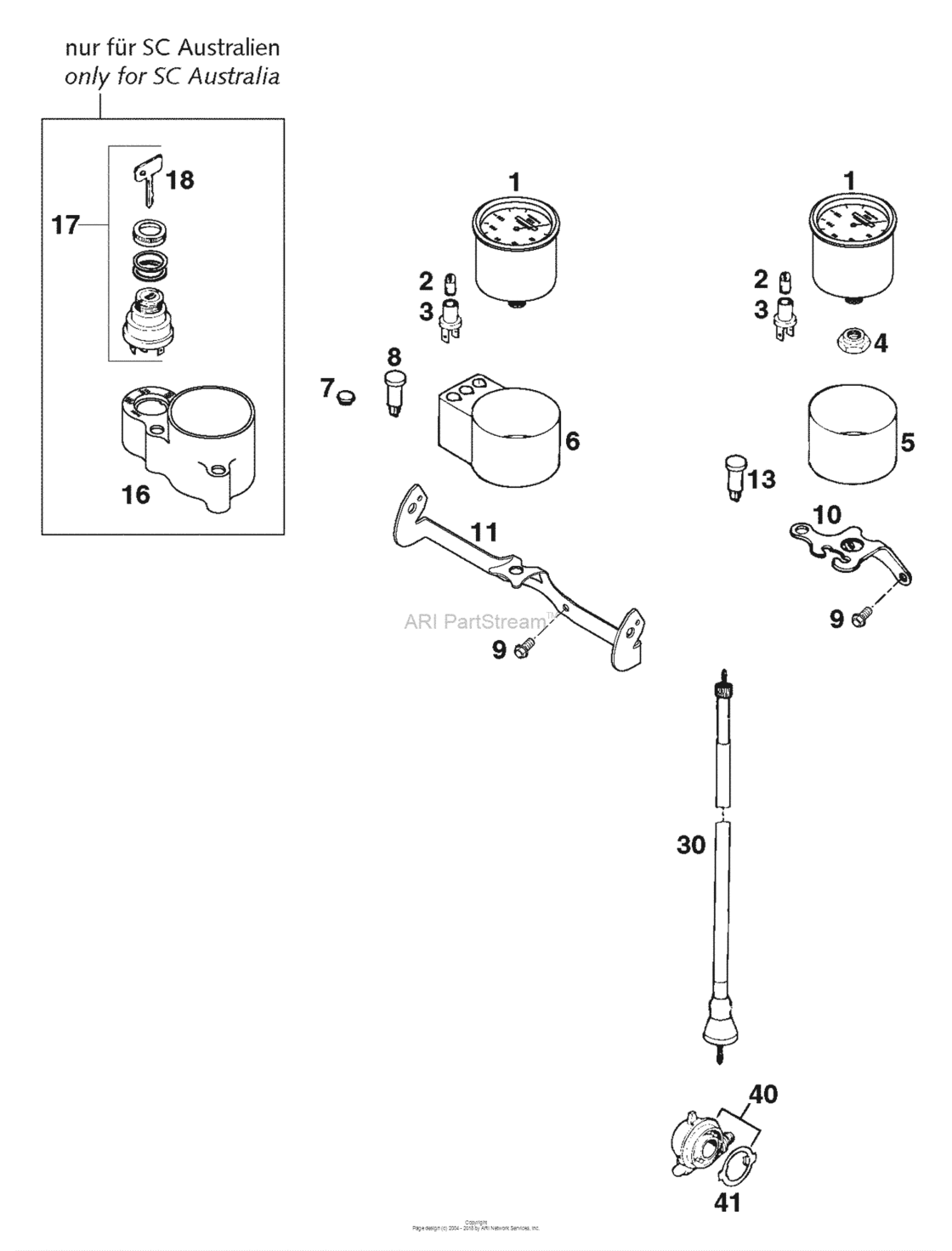

Speedometer Diagram KTM 620 620 LC4 Super Competition
- Year
- 1998
- Sales region
- US/EU
- Engine Capacity
- 620
- Model
- 620 LC4 Super Competition
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
55011080000
Speedometer vdo 140 km/h
97 |
55011080000 |
— | ||
|
2
|
2
44111025000
Bulb 125/250/300/440
97 |
44111025000 |
— | ||
|
3
|
3
33011069000
Socket
97 |
33011069000 |
— | ||
|
4
|
4
55011080050
Collar Nut
97 |
55011080050 |
— | ||
|
5
|
5
57011068000
Speedometer housing vdo
97 |
57011068000 |
— | ||
|
6
|
6
58011068000
Speedom.case
97 |
58011068000 |
— | ||
|
7
|
7
36111021000 Plug97 |
36111021000 |
US $0.61 |
||
|
8
|
8
58011021200
High beam indicator light blue
97 |
58011021200 |
— | ||
|
8
|
8
58011022200
Temperature warning light red
97 |
58011022200 |
— | ||
|
8
|
8
58011024200 Flasher indicator light green97 |
58011024200 |
US $13.35 |
||
|
9
|
9
0015060123
Hh Collar Screw M 6X12 Ws=8
97 |
0015060123 |
— | ||
| replacement | |||||
|
9
|
9
0025060126 Hh collar screw m6x12 tx3097 |
0025060126 |
US $3.96 |
||
|
10
|
10
54611120200 Speedometer Bracket Vdo/odo'9597 |
54611120200 |
US $8.52 |
||
|
11
|
11
54611120400
Support
97 |
54611120400 |
— | ||
|
13
|
13
58011021100 Indicator light blue 12v round97 |
58011021100 |
US $14.23 |
||
|
16
|
16
50211068000
Speedometer Case
97 |
50211068000 |
— | ||
|
17
|
17
44611466000
Ignition lock 7-p cev
97 |
44611466000 |
— | ||
|
18
|
18
40011166000
Key blank red "o" grip
97 |
40011166000 |
— | ||
|
30
|
30
56511188700
Speedom.cable m10/m12 960mm'96
97 |
56511188700 |
— | ||
|
40
|
40
58111152100
Speedometer Drive
97 |
58111152100 |
— | ||
|
41
|
41
58111053100 Driving dog f.speedom.drive'9297 |
58111053100 |
US $6.83 |
||
