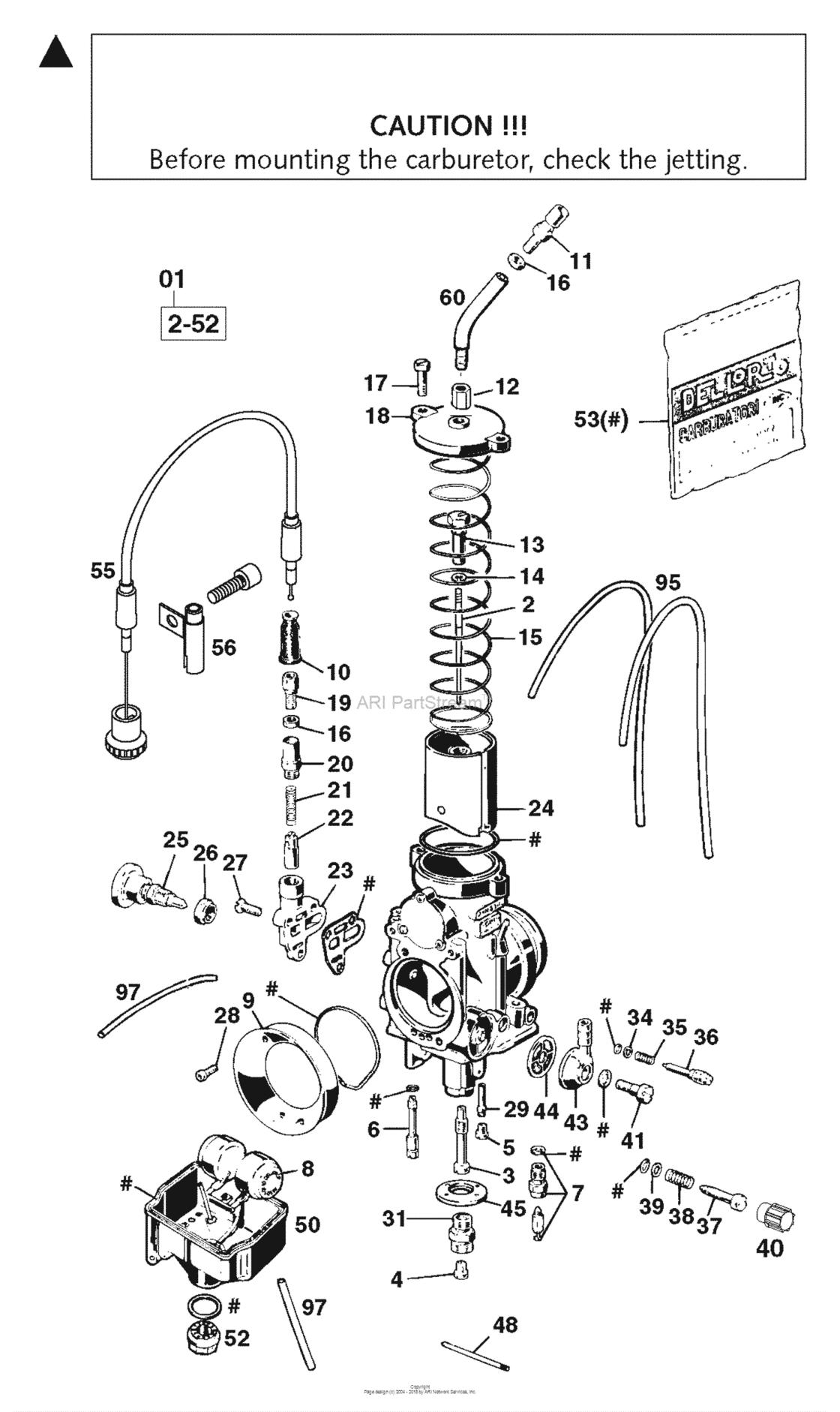

Carburetor Diagram KTM 620 620 LC4 SX
- Year
- 1999
- Sales region
- US/EU
- Engine Capacity
- 620
- Model
- 620 LC4 SX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
58031901044
Carburetor phm 40 sd (4934)
LC4'94 |
58031901044 |
— | ||
|
2
|
2
49031134051
K51 Needle
LC4'94 |
49031134051 |
— | ||
|
3
|
3
58031121272
Needle Jet 272D
LC4'94 |
58031121272 |
— | ||
|
3
|
3
58031121270 Needle Jet Dr 270LC4'94 |
58031121270 |
US $36.57 |
||
|
3
|
3
58031121268 Needle jet dr 268LC4'94 |
58031121268 |
US $34.51 |
||
|
3
|
3
58031121266 Needle jet dr 266LC4'94 |
58031121266 |
US $31.20 |
||
|
3
|
3
58031121264
Needle Jet Dr 264
LC4'94 |
58031121264 |
— | ||
|
4
|
4
57031523200 Main Jet 200LC4'94 |
57031523200 |
US $7.34 |
||
|
4
|
4
57031523195
Main Jet
LC4'94 |
57031523195 |
— | ||
|
4
|
4
57031523192
Main jet 192
LC4'94 |
57031523192 |
— | ||
|
4
|
4
57031523190
Main Jet
LC4'94 |
57031523190 |
— | ||
|
4
|
4
57031523188 Main jet 188LC4'94 |
57031523188 |
US $6.27 |
||
|
4
|
4
57031523185 Main Jet 185LC4'94 |
57031523185 |
US $5.81 |
||
|
4
|
4
57031523182 Main jet 182LC4'94 |
57031523182 |
US $9.57 |
||
|
4
|
4
57031523180 Main Jet 180LC4'94 |
57031523180 |
US $5.95 |
||
|
4
|
4
57031523178 Main jet 178LC4'94 |
57031523178 |
US $6.02 |
||
|
4
|
4
57031523175 Main Jet 175LC4'94 |
57031523175 |
US $6.56 |
||
|
4
|
4
57031523170
Main jet 170
LC4'94 |
57031523170 |
— | ||
|
4
|
4
57031523168 Main jet 168LC4'94 |
57031523168 |
US $5.87 |
||
|
4
|
4
57031523165
Main jet 165
LC4'94 |
57031523165 |
— | ||
|
4
|
4
57031523162 Main jet 162LC4'94 |
57031523162 |
US $5.03 |
||
|
4
|
4
57031523160
Main jet 160
LC4'94 |
57031523160 |
— | ||
|
4
|
4
57031523155 Main jet 155LC4'94 |
57031523155 |
US $5.87 |
||
|
4
|
4
57031523150 Main jet 150LC4'94 |
57031523150 |
US $5.17 |
||
|
5
|
5
15131123038
Jet 38
LC4'94 |
15131123038 |
— | ||
|
5
|
5
15131123040 Jet 40LC4'94 |
15131123040 |
US $7.16 |
||
|
5
|
5
15131123043
Jet 43
LC4'94 |
15131123043 |
— | ||
|
5
|
5
15131123045 Jet 45LC4'94 |
15131123045 |
US $6.46 |
||
|
5
|
5
15131123048 Jet 48LC4'94 |
15131123048 |
US $7 |
||
|
5
|
5
15131123050 Jet 50LC4'94 |
15131123050 |
US $6.55 |
||
|
5
|
5
15131123052 Jet 52LC4'94 |
15131123052 |
US $7.77 |
||
|
6
|
6
57031551045 Starting Jet 45LC4'94 |
57031551045 |
US $9.64 |
||
|
7
|
7
57231120300 Needle Valve 300LC4'94 |
57231120300 |
US $52.39 |
||
|
8
|
8
57031509000
Float 8,5 gramme
LC4'94 |
57031509000 |
— | ||
|
8
|
8
58331509000 FloatLC4'94 |
58331509000 |
US $37.11 |
||
|
9
|
9
58031140040 Intake trumpet 40 620lc4/dukeLC4'94 |
58031140040 |
US $75.45 |
||
|
10
|
10
52031138000 Rubber sleeveLC4'94 |
52031138000 |
US $2.21 |
||
|
11
|
11
57031525100 Adjustment screw m6x0,75LC4'94 |
57031525100 |
US $19.81 |
||
|
12
|
12
58031528000
Support bushing m6x0,75 ws=10
LC4'94 |
58031528000 |
— | ||
|
13
|
13
49031131000 Nipple For Throttle ValveLC4'94 |
49031131000 |
US $38.23 |
||
|
14
|
14
0799025055 Tab Washer Din6799-Rs 2,5LC4'94 |
0799025055 |
US $2.24 |
||
|
15
|
15
54431530000 Sliding Spring 1,25X190LC4'94 |
54431530000 |
US $24.68 |
||
|
16
|
16
52031126000 Hexagon nut m 6x0,75 din0439LC4'94 |
52031126000 |
US $8.35 |
||
|
17
|
17
57031524000
Hexagon Nut M 5X16
LC4'94 |
57031524000 |
— | ||
|
18
|
18
58031127000 Carburetor Cover PlateLC4'94 |
58031127000 |
US $45.65 |
||
|
19
|
19
57031525000 Adjustment screw m6x0,75LC4'94 |
57031525000 |
US $4.47 |
||
|
20
|
20
57231155000 PlugLC4'94 |
57231155000 |
US $9.08 |
||
|
21
|
21
58031153000 SpringLC4'94 |
58031153000 |
US $1.51 |
||
|
22
|
22
57031549000 Starting deviceLC4'94 |
57031549000 |
US $5.90 |
||
|
23
|
23
57231150100 Start.device body 4sLC4'94 |
57231150100 |
US $58.67 |
||
|
24
|
24
58031135040 Throttle Valve N0.40LC4'94 |
58031135040 |
US $188.36 |
||
|
25
|
25
58031180000
Warm start button
LC4'94 |
58031180000 |
— | ||
|
26
|
26
58031181000 Hexagon nut m 9x0,75LC4'94 |
58031181000 |
US $7.79 |
||
|
27
|
27
0964040143 Oval Head Screw Din0964-M 4X14LC4'94 |
0964040143 |
US $0.37 |
||
|
28
|
28
0912040123 Ah screw din0912-m 4x12LC4'94 |
0912040123 |
US $0.71 |
||
|
29
|
29
49031122000
Idle mixing tube nr.1 cd
LC4'94 |
49031122000 |
— | ||
|
31
|
31
57031522000
Jet Holder
LC4'94 |
57031522000 |
— | ||
|
34
|
34
57031572000 Washer 3,3 x 5,8 x 0,5LC4'94 |
57031572000 |
US $1.63 |
||
|
35
|
35
57031515000
Spring Air Adjust.screw
LC4'94 |
57031515000 |
— | ||
|
36
|
36
57031517000 Mixture Regulat.screw M7X0,75LC4'94 |
57031517000 |
US $5.90 |
||
|
37
|
37
57031519000
Idle Adjust Screw
LC4'94 |
57031519000 |
— | ||
| replacement | |||||
|
37
|
37
45131019000 Idle adjust screwLC4'94 |
45131019000 |
US $5.93 |
||
|
38
|
38
52031116000
Spring
LC4'94 |
52031116000 |
— | ||
| replacement | |||||
|
38
|
38
45131518000 SpringLC4'94 |
45131518000 |
US $2.94 |
||
|
39
|
39
57031573000 Washer 5,1 x 8 x 0,8LC4'94 |
57031573000 |
US $1.21 |
||
|
40
|
40
57031519100
Knurled Cap
LC4'94 |
57031519100 |
— | ||
|
41
|
41
0933060163 Hh Screw Din0933-M 6X16LC4'94 |
0933060163 |
US $0.61 |
||
|
43
|
43
57031513000 Hose ConnectorLC4'94 |
57031513000 |
US $7.16 |
||
|
44
|
44
15131112000 Fuel FilterLC4'94 |
15131112000 |
US $5 |
||
|
45
|
45
50131174000
Filter
LC4'94 |
50131174000 |
— | ||
|
48
|
48
57031508000
Pin
LC4'94 |
57031508000 |
— | ||
|
50
|
50
57031511100
Float chamber with run over t.
LC4'94 |
57031511100 |
— | ||
|
52
|
52
57031514000
Plug
LC4'94 |
57031514000 |
— | ||
|
53
|
53
58031199000 Gasket Set Phm38Sd/phm40SdLC4'94 |
58031199000 |
US $36.81 |
||
|
55
|
55
58302095200
Choke Cable Cpl. Sx,sxc,sc'97
LC4'94 |
58302095200 |
— | ||
|
56
|
56
58302095251 Sleeve For Choke CableLC4'94 |
58302095251 |
US $15.67 |
||
|
60
|
60
58031160000
Tube With Thread
LC4'94 |
58031160000 |
— | ||
| replacement | |||||
|
60
|
60
58031160100 Tube for carburetor cpl. '99LC4'94 |
58031160100 |
US $29.05 |
||
|
95
|
95
31007007001 Pvc-hose 5 x 8 mmLC4'94 |
31007007001 |
US $4.98 |
||
|
97
|
97
52031137001 Pvc-hose 3x5mmLC4'94 |
52031137001 |
US $6 |
||
