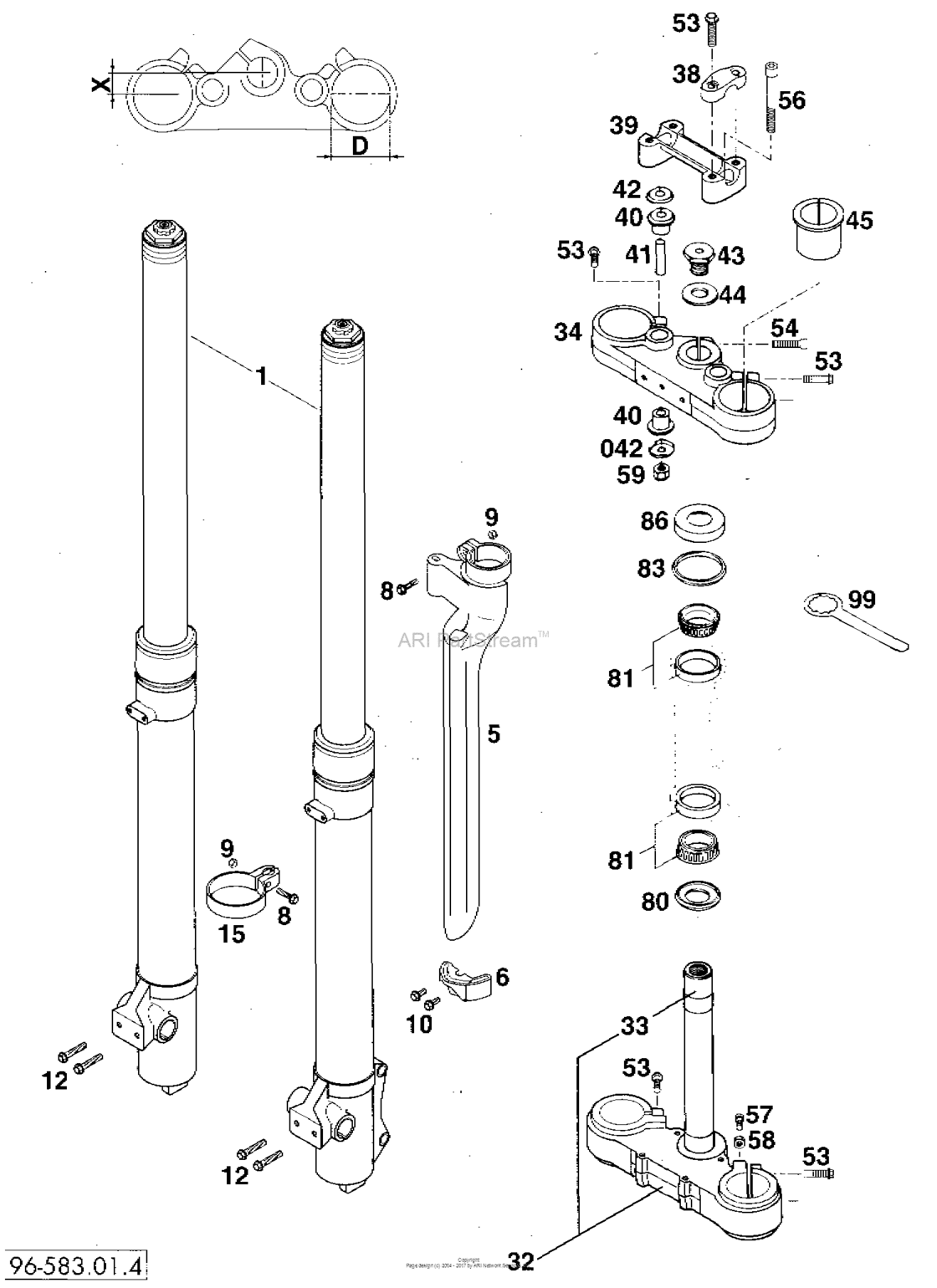

Front Fork Marzocchi Diagram KTM 620 620 RXC
- Year
- 1996
- Sales region
- US/EU
- Engine Capacity
- 620
- Model
- 620 RXC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
|
54601391000 Fork protector r/s marzocchi9696 |
54601391000 |
US $12.84 |
||
|
|
54601390000 Fork protectoion guide r/s '9696 |
54601390000 |
US $3.98 |
||
|
1
|
1
124734
Fork Legs Cfl
96 |
124734 |
— | ||
|
1
|
1
124731
Fork Legs Cpl
96 |
124731 |
— | ||
|
5
|
5
54601291000
Fork protector l/s '96
96 |
54601291000 |
— | ||
|
6
|
6
54601290000 Fork protection guide l/s '9696 |
54601290000 |
US $4.39 |
||
|
8
|
8
0015050203
Hh Collar Screw M5X20 Tx30
SW=8 |
0015050203 |
— | ||
| replacement | |||||
|
8
|
8
0025050206 Hh collar screw m5x20 tx30SW=8 |
0025050206 |
US $1.33 |
||
|
9
|
9
0985050003 Self Locking Nut Din0985-M 5SW=8 |
0985050003 |
US $3.26 |
||
|
10
|
10
0015050123
Hh collar screw m 5x12 ws=8
SW=8 |
0015050123 |
— | ||
| replacement | |||||
|
10
|
10
0025050126 Hh collar screw m5x12 tx30SW=8 |
0025050126 |
US $3.38 |
||
|
12
|
12
520196
H H Collar Screw
SW-10 |
520196 |
— | ||
|
15
|
15
546001099000
Speedo Cable Guide
SW-10 |
546001099000 |
— | ||
|
32
|
32
50201132044
Bot.fork plate x=18mm/d=45mm
SW-10 |
50201132044 |
— | ||
|
33
|
33
50101033100 Fork Tube L=24491 |
50101033100 |
US $120.89 |
||
| replacement | |||||
|
33
|
33
54801133000 FORK TUBE L=24491 |
54801133000 |
US $78.15 |
||
|
34
|
34
54601034000
Superseded By 54601034100
91 |
54601034000 |
— | ||
|
38
|
38
54601038000
Handlebar Clamp
95 |
54601038000 |
— | ||
| replacement | |||||
|
38
|
38
50301038000 Handlebar clamp d=22mm 200195 |
50301038000 |
US $21.54 |
||
|
39
|
39
58301039100 Handlebar support '9595 |
58301039100 |
US $61.20 |
||
|
40
|
40
56401040000 Rubber bushing95 |
56401040000 |
US $6.73 |
||
|
41
|
41
56401041100 Spacer tube 10,2x12x4495 |
56401041100 |
US $5.25 |
||
|
42
|
42
56401042000 Washer 10,5x32x295 |
56401042000 |
US $4.71 |
||
|
43
|
43
56401043000 Hh screw m20x1,595 |
56401043000 |
US $25.01 |
||
| replacement | |||||
|
43
|
43
50301036000 Steer.head screw m20x1,5 ws=2795 |
50301036000 |
US $12.65 |
||
|
44
|
44
56401044000
Washer 21x38x3
95 |
56401044000 |
— | ||
|
45
|
45
54601034050
Sleeve marzo.fork top 45x54x41
95 |
54601034050 |
— | ||
|
53
|
53
0015080303
Hh Collar Screw M8X30 Tx40
95 |
0015080303 |
— | ||
| replacement | |||||
|
53
|
53
0025080306 Hh collar screw m8x30 tx4095 |
0025080306 |
US $3.89 |
||
|
54
|
54
0912080353 Ah screw din0912-m 8x3595 |
0912080353 |
US $1.65 |
||
|
56
|
56
0984100703 Ah screw din6912-m10x7095 |
0984100703 |
US $6.92 |
||
|
57
|
57
0933070203 Hh screw din0933-m 7x2095 |
0933070203 |
US $1.58 |
||
|
58
|
58
0934070003 Hexagon nut din0934-m 795 |
0934070003 |
US $0.61 |
||
|
59
|
59
0985100003 Self locking nut din0985-m1095 |
0985100003 |
US $1.22 |
||
|
80
|
80
54601084100 O-Ring Support W. Sealing Lip91 |
54601084100 |
US $21.28 |
||
| replacement | |||||
|
80
|
80
77701084000 O-Ring Support W. Sealing Lip91 |
77701084000 |
US $21.15 |
||
|
81
|
81
54201081000 Tapered Roller Bearing Cpl. 0691 |
54201081000 |
US $62.54 |
||
| replacement | |||||
|
81
|
81
54201081100 Tapered Roller Bearing Cpl. 0691 |
54201081100 |
US $53.18 |
||
|
83
|
83
54601184000 Stearing head gasket top91 |
54601184000 |
US $7.74 |
||
|
86
|
86
54201086000 Steering Head Cover91 |
54201086000 |
US $8.11 |
||
| replacement | |||||
|
86
|
86
78101086000 Steering Head Cover91 |
78101086000 |
US $5.08 |
||
|
99
|
99
54212035000
Ring wrench ws=32
SW=32 |
54212035000 |
— | ||
