Parts list

Difficulties in parts search?

	Description	OEM Part #	Price
1	1 48600020S Screw Cap M51X1,5 Cpl 94	48600020S	—
	replacement
1	1 48600020S1 Screw Cap M51X1,5 Cpl 94	48600020S1	—
2	2 46810016 O-ring nbr 48x2 94	46810016	US $4.66
3	3 48600018 Knob reboung adjuster 94	48600018	US $6
5	5 40540603 Steel ball d=3mm 94	40540603	US $1.22
6	6 48600028 Spring d=2,9 l=7,9 94	48600028	US $3.03
7	7 48600044 O-ring nbr 6x1,5 94	48600044	US $1.14
8	8 48600058 Vent screw m4x6 94	48600058	US $2.09
9	9 48600009 O-ring nbr 3,7x1,6 94	48600009	US $0.90
10	10 48600043 O-ring nbr 12x1,5 94	48600043	US $2.24
11	11 48600019 Holder f.adjustment tube d=4mm 94	48600019	US $3.69
12	12 43570125 Outer tube l=577mm d=54/57mm 94	43570125	US $433.45
13	13 43570099 Guiding ring d=53mm 94	43570099	US $26.25
15	15 43570019 Du-bush 47 x 43 x 20 94	43570019	US $27.86
16	16 43570092 Support ring 45 x 52,5 x 1,5 94	43570092	US $16.83
17	17 43570140 Oil Seal Ring 43 X 52,9 X 9,5 94	43570140	—
	replacement
17	17 43570201 Oil Seal Ring 43 X 52,9 X 9,5 94	43570201	US $26.45
18	18 43570008 Lock washer sb53 94	43570008	US $2.89
19	19 43570094 Dust Stripper 43 X 53,4 X 11,8 94	43570094	—
	replacement
19	19 43570202 Dust Stripper 43 X 53,4 X 11,8 94	43570202	US $23.36
22	22 43570020 Du-bush 43,8 x 43 x 20 94	43570020	US $26.57
	replacement
22	22 43570617 Guide Bushing 42X44X20 R11 94	43570617	US $13.91
23	23 43570145 Superseded By 43570221 94	43570145	—
24	24 43570142S Hydr.stop L=200 D=27,5 Cpl. 05 94	43570142S	—
	replacement
24	24 43570142S1 Hydr.stop l=200 d=27,5 cpl. 05 94	43570142S1	US $60.74
30	30 48600014 Adjustment tube l=512mm 94	48600014	US $17.41
30	30 48600094 Adjustment tube l=492mm 94	48600094	US $16.95
31	31 48600023 Pistonr. d=14mm l=546mm m11x1 94	48600023	US $79.78
31	31 48600093 Pistonrod D=14Mm L=526Mm M11X1 94	48600093	—
33	33 48600003 Rebound needle 94	48600003	US $7.94
34	34 48600046 O-ring nbr 3x1,5 94	48600046	US $2.47
35	35 48600033 Spring rebound needle c=4n/mm 94	48600033	US $15.81
36	36 48600036 Spacer 42x26,5x2,5 94	48600036	US $6.48
36	36 48600037 Spacer 42x26,5x5 94	48600037	US $6.41
36	36 48600038 Spacer 42x26,5x10 94	48600038	US $8.04
36	36 48600053 Spacer 42X26,5X1,5 94	48600053	US $7.09
37	37 48600039 Spacer 42X26,5X1,5 94	48600039	—
	replacement
37	37 48600053 Spacer 42X26,5X1,5 94	48600053	US $7.09
38	38 95010010S Spring 3,6 n/mm set d=4,6mm 94	95010010S	US $217.69
38	38 95010001S Spring 3,8 n/mm set d=4,75 94	95010001S	—
38	38 95010002S Spring 4,0 n/mm set d=4,75mm 94	95010002S	US $217.69
38	38 95010003S Spring 4,2 n/mm set d=4,9mm 94	95010003S	US $223.13
38	38 95010004S Spring 4,4 n/mm set d=4,9mm 94	95010004S	US $223.13
38	38 95010022S Spring 5,0 n/mm set d=5,0mm 94	95010022S	US $223.13
39	39 43570131 Interm. ring 26,2x38,5x3 94	43570131	US $15.28
42	42 43570132S Screw sleeve m29,3x1+bush 94	43570132S	—
43	43 46810651 Du-bush 14x16x12 94	46810651	US $7.06
44	44 48600015 Rebound spring d=14,6mm l=22mm 94	48600015	—
45	45 48600025 Tap rebound 94	48600025	—
47	47 48600059 Spring check valve d=0,25 94	48600059	US $8.79
49	49 48600062 Check valve 8x24x0,1 94	48600062	US $3.26
49	49 40541408 Shim 6x8,0x0,30 94	40541408	US $2.52
49	49 40541414 Shim 6x8,0x0,10 94	40541414	US $2.43
50	50 40540400 Shim 6x12x0,1 94	40540400	US $3.67
50	50 40540401 Shim 6x14x0,1 94	40540401	US $3.49
50	50 40540402 Shim 6x16x0,1 94	40540402	US $2.72
50	50 40540403 Shim 6x18x0,1 94	40540403	US $2.87
50	50 40540404 Shim 6x12x0,15 94	40540404	US $3.40
50	50 40540405 Shim 6x14x0,15 94	40540405	US $3.62
50	50 40540406 Shim 6x16x0,15 94	40540406	US $3.49
50	50 40540407 Shim 6x18x0,15 94	40540407	US $4.59
50	50 40540411 Shim 6x18x0,2 94	40540411	US $3.79
50	50 40540414 Shim 6x16x0,25 94	40540414	US $3.72
50	50 40540447 Shim 6x10x0,3 94	40540447	US $2.23
50	50 40541383 Shim 6x11x0,1 94	40541383	US $2.87
50	50 40541391 Shim 6x11x0,3 94	40541391	US $3.23
50	50 48600063 Shim 6x24x0,1 94	48600063	US $2.77
50	50 48600064 Shim 6x22x0,1 94	48600064	US $4.17
50	50 48600065 Shim 6x20x0,1 94	48600065	US $3.67
50	50 48600116 Shim 6X24X0,1 Delta 94	48600116	US $5.95
50	50 48600139 Shim 6X22X0,1 Delta 94	48600139	US $3.88
51	51 48600060 Piston ring 5x1x84 94	48600060	US $6
52	52 48600042 Piston rebound d=27,7 94	48600042	US $48.96
55	55 40540486 Nut m6x0,5 rebound 94	40540486	US $5.20
58	58 48600081 Tube 29,3x1x390 d=8,5mm 94	48600081	US $119.51
58	58 48600140 Tube 29,3x1x385 alu 94	48600140	US $94.13
59	59 43570023 O-ring nbr 41x2 94	43570023	US $3.69
60	60 43570124 Axle clamp l/s 260mm m8 2000 94	43570124	US $252.42
61	61 43570123 Axle Clamp R/s Cpl. Usd 43 04 94	43570123	—
	replacement
61	61 43570123S Axle clamp r/s cpl. usd 43 04 94	43570123S	US $281.38
62	62 50600061 Hh Collar Screw M8X30 Tx40 94	50600061	US $5.20
	replacement
62	62 0025080306 Hh collar screw m8x30 tx40 94	0025080306	US $3.89
63	63 40541241 Check valve nut m6x0,5 94	40541241	US $8.14
64	64 40541278 Spring check valve d=0,5mm 94	40541278	US $7.87
70	70 48600061 Check valve 8x24x0,4 94	48600061	US $4.32
70	70 40541408 Shim 6x8,0x0,30 94	40541408	US $2.52
71	71 48600047 Piston compression d=27,9 94	48600047	US $49.96
72	72 46811499 O-ring nbr 21x2 94	46811499	US $1.48
73	73 35480320 O-ring nbr 24x2 94	35480320	US $2.70
74	74 48600027S Tap Compression Cpl 94	48600027S	US $65.81
	replacement
74	74 48600586E Tap Compression Cpl 94	48600586E	US $96.46
75	75 48600035 Needle compression m10x1 94	48600035	—
76	76 48600049 O-ring nbr 8x2 94	48600049	US $3.67
79	79 48600051 Lock washer rb12 94	48600051	US $1.39
80	80 48600034 Compression adj. screw 94	48600034	—
81	81 48600004 Copper washer 29,5x33,5x1 94	48600004	US $1.65
90	90 40540882 Forkoil Rez 71 Sae 5 94	40540882	—
95	95 48600074S Pre-load adjuster cpl.(2 pcs.) 94	48600074S	—

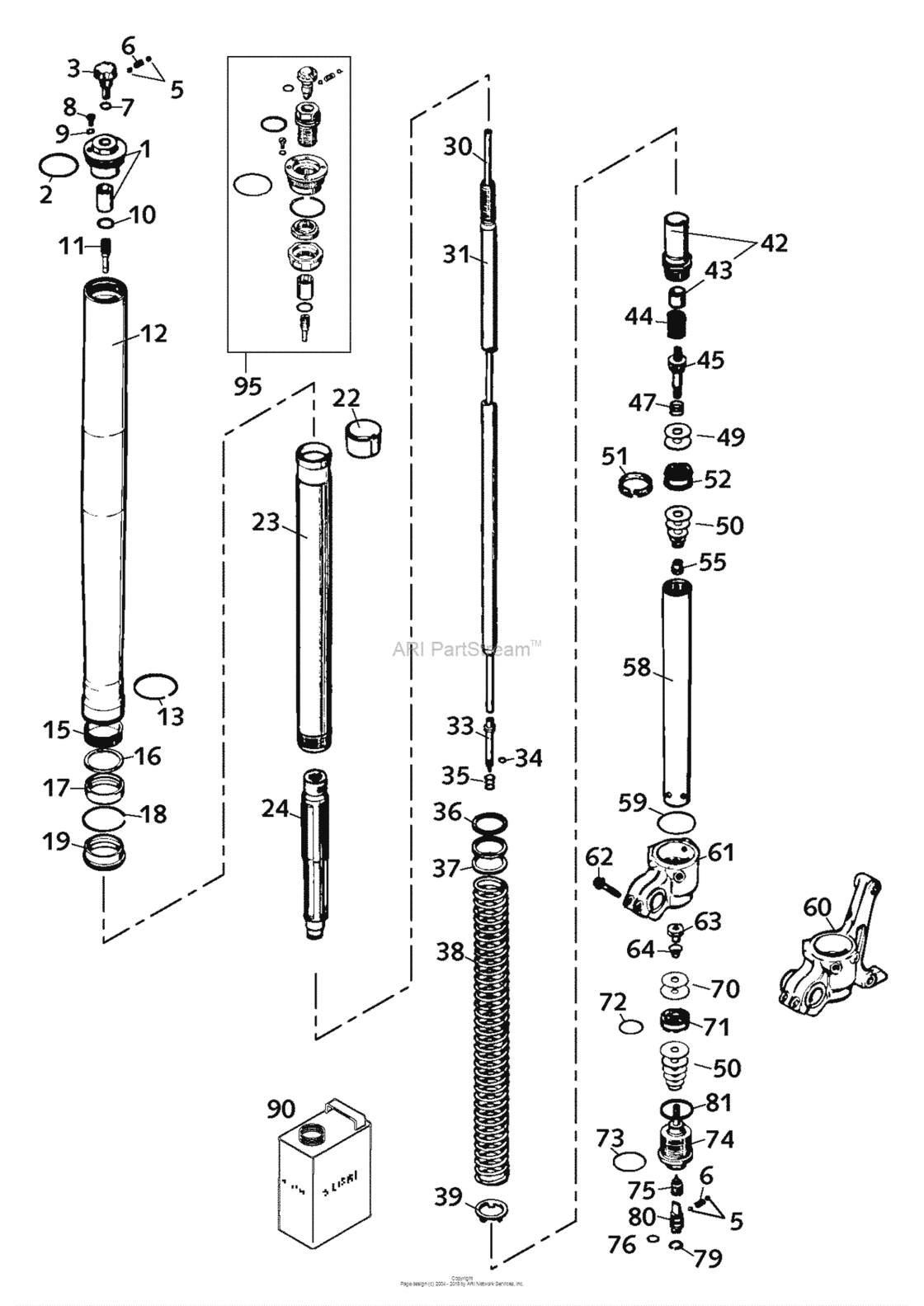

Fork Legs Wp Usd 43 Diagram KTM 620 620 SC Super Moto US/EU 18102460-940512

Fork Legs Wp Usd 43 Diagram KTM 620 620 SC Super Moto US/EU 18102460-940512
