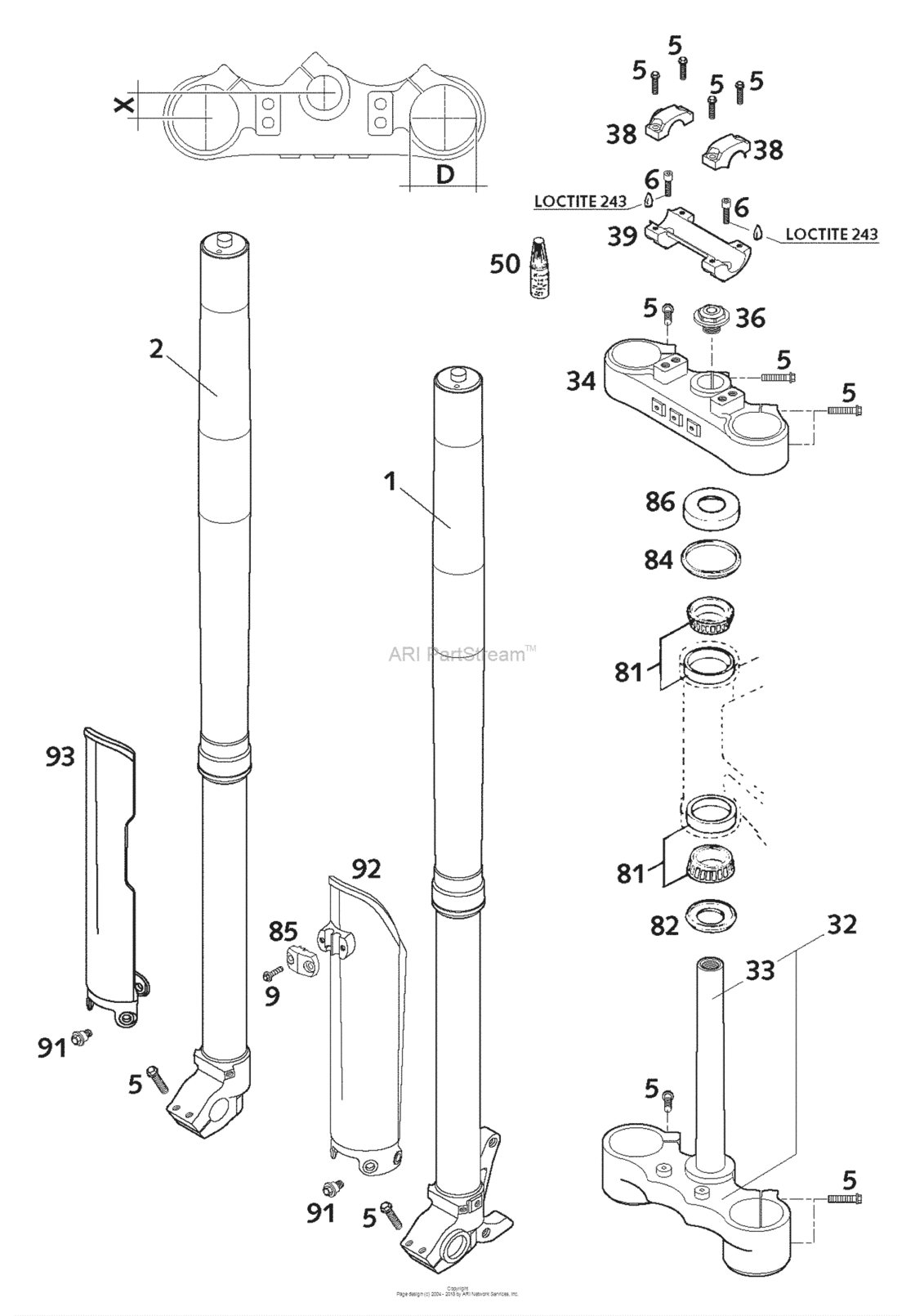

Front Fork Wp Usd 43 Diagram KTM 620 620 SC Super Moto
- Year
- 2001
- Sales region
- US/EU
- Engine Capacity
- 620
- Model
- 620 SC Super Moto
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
0518V706LS
Fork leg l/s wp43 exc rac.2001
94 |
0518V706LS |
— | ||
|
1
|
1
0518V721LS
Fork Leg L/s Wp Supermoto 2001 (640 Lc4-E Supermoto)
94 |
0518V721LS |
— | ||
|
2
|
2
0518V706RS
Fork Leg R/s Wp43 Exc Rac.2001 (400/520 Mxc, Exc Racing)
94 |
0518V706RS |
— | ||
|
2
|
2
0518V721RS
Fork Leg R/s Wp Supermoto 2001 (640 Lc4-E Supermoto)
94 |
0518V721RS |
— | ||
|
5
|
5
0015080303
Hh Collar Screw M8X30 Tx40
94 |
0015080303 |
— | ||
| replacement | |||||
|
5
|
5
0025080306 Hh collar screw m8x30 tx4094 |
0025080306 |
US $3.89 |
||
|
6
|
6
0912100250
Ah-Collar Screw M10X25 Isa45
94 |
0912100250 |
— | ||
| replacement | |||||
|
6
|
6
0032100256S Ah-collar screw m10x25 isa4594 |
0032100256S |
US $5.12 |
||
|
9
|
9
0017060203
Screw For Plastic K60X20 Sw6
94 |
0017060203 |
— | ||
| replacement | |||||
|
9
|
9
0017060205 Screw For Plastic K60X20 Sw694 |
0017060205 |
US $2.24 |
||
|
32
|
32
59001132020
Bot.trip.cl.cpl. X=20Mm/d=57M
94 |
59001132020 |
— | ||
| replacement | |||||
|
32
|
32
59001132220 Bot.trip.cl.cpl. X=20Mm/d=57M94 |
59001132220 |
US $403.17 |
||
|
33
|
33
50101033100 Fork Tube L=24494 |
50101033100 |
US $120.89 |
||
| replacement | |||||
|
33
|
33
54801133000 FORK TUBE L=24494 |
54801133000 |
US $78.15 |
||
|
34
|
34
59001034020
Top Fork Plate X=20Mm/d=54Mm
94 |
59001034020 |
— | ||
| replacement | |||||
|
34
|
34
59001234020 Top fork plate x=20mm/d=54mm94 |
59001234020 |
US $163.37 |
||
|
36
|
36
50301036000 Steer.head screw m20x1,5 ws=2794 |
50301036000 |
US $12.65 |
||
|
38
|
38
59001038200 Handlebar Clamp D=28Mm 200094 |
59001038200 |
US $21.10 |
||
|
39
|
39
59001039100 Handlebar Support 28Mm Sc'9994 |
59001039100 |
US $64.89 |
||
|
50
|
50
6899785 Loctite 243 Blue 6Ccm94 |
6899785 |
US $40.61 |
||
|
81
|
81
54201081000 Tapered Roller Bearing Cpl. 0694 |
54201081000 |
US $62.54 |
||
| replacement | |||||
|
81
|
81
54201081100 Tapered Roller Bearing Cpl. 0694 |
54201081100 |
US $53.18 |
||
|
82
|
82
54601084100 O-Ring Support W. Sealing Lip94 |
54601084100 |
US $21.28 |
||
| replacement | |||||
|
82
|
82
77701084000 O-Ring Support W. Sealing Lip94 |
77701084000 |
US $21.15 |
||
|
84
|
84
54601184000 Stearing head gasket top94 |
54601184000 |
US $7.74 |
||
|
85
|
85
59001085100 Clamp f.speed.cable d=6mm 200194 |
59001085100 |
US $2.30 |
||
|
86
|
86
54201086000 Steering Head Cover94 |
54201086000 |
US $8.11 |
||
| replacement | |||||
|
86
|
86
78101086000 Steering Head Cover94 |
78101086000 |
US $5.08 |
||
|
91
|
91
59001092050 Special Screw M6X12,5 Ws=894 |
59001092050 |
US $2.35 |
||
|
92
|
92
59001092100
Fork Prot. L/s+R/s Black 10
94 |
59001092100 |
— | ||
| replacement | |||||
|
92
|
92
5900109410030 FORK PROT. L/S+R/S BLACK 1094 |
5900109410030 |
US $49.79 |
||
|
93
|
93
59001093100
Fork Prot. L/s+R/s Black 10
94 |
59001093100 |
— | ||
| replacement | |||||
|
93
|
93
5900109410030 FORK PROT. L/S+R/S BLACK 1094 |
5900109410030 |
US $49.79 |
||
