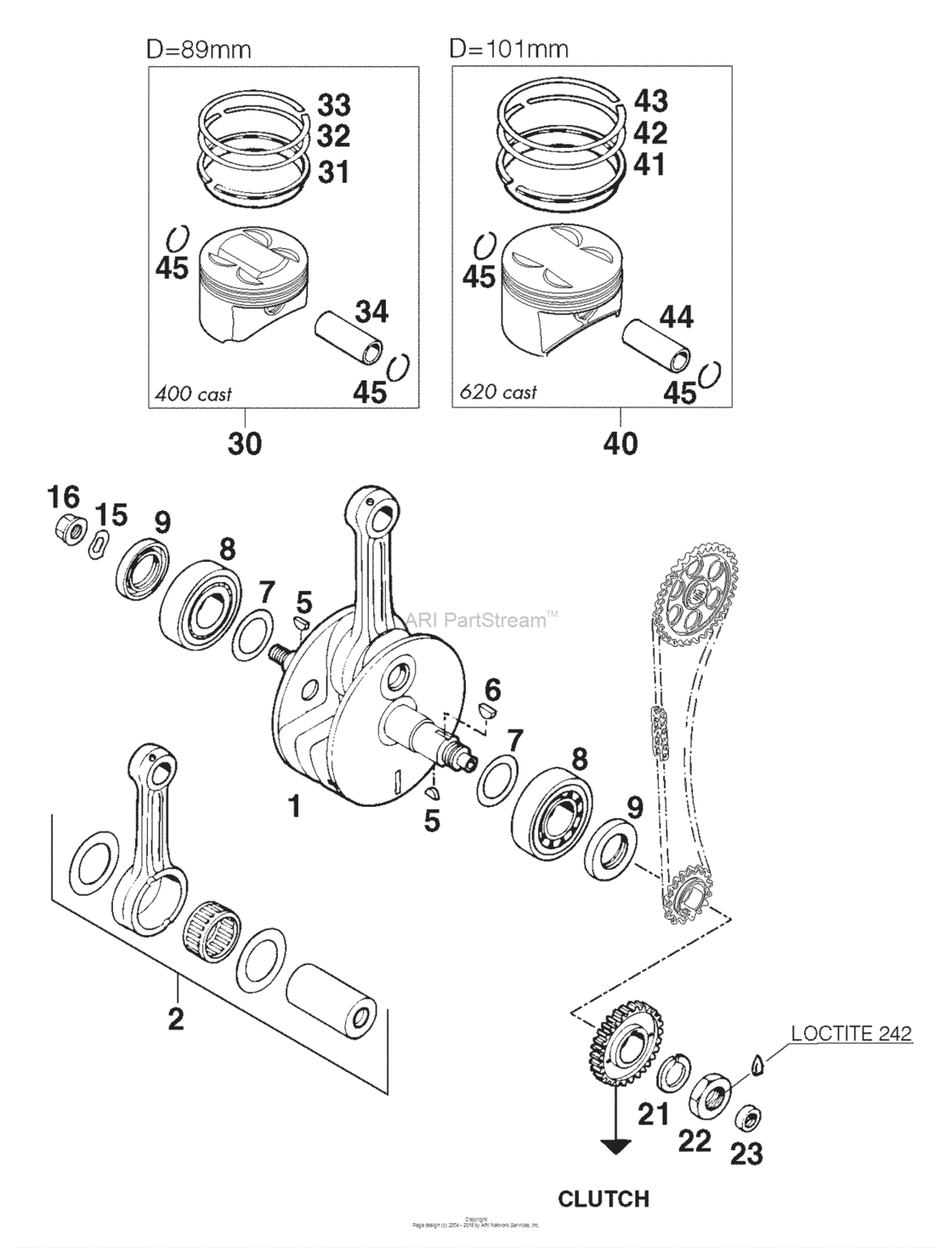

Crankshaft, Piston Diagram KTM 620 620 Super Competition
- Year
- 2000
- Sales region
- US/EU
- Engine Capacity
- 620
- Model
- 620 Super Competition
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
57630018000
Crankshaft cpl. 400 lc4 '97
94 |
57630018000 |
— | ||
|
1
|
1
58330018100 Crankshaft cpl. 540/620 lc4'9994 |
58330018100 |
US $1,017.20 |
||
|
2
|
2
58030015044 Connecting rod repair set lc494 |
58030015044 |
US $521.12 |
||
|
2
|
2
58330015044 Con.rod Repair Kit94 |
58330015044 |
US $447.80 |
||
| replacement | |||||
|
2
|
2
58430015044 Con.rod repair kit94 |
58430015044 |
US $369.73 |
||
|
5
|
5
0888030050 Woodruff Key Din6888-3X5X1394 |
0888030050 |
US $2.60 |
||
|
6
|
6
6946005 Woodruff Key 5X6,5 Harded94 |
6946005 |
US $0.92 |
||
|
7
|
7
56030081000 Thrust washer 30,5x45x0,1094 |
56030081000 |
US $0.43 |
||
|
7
|
7
56030081100 Thrust washer 30,7x47x0,1594 |
56030081100 |
US $0.94 |
||
|
7
|
7
56030081200 Thrust washer 30,5x45x0,3094 |
56030081200 |
US $1.21 |
||
|
8
|
8
58030082000 Cyl.roller bearing nj 306 c394 |
58030082000 |
US $118.75 |
||
|
9
|
9
0760304771 Sh.seal Ring 30X47X7 Bsl Viton94 |
0760304771 |
US $27.30 |
||
| replacement | |||||
|
9
|
9
0760304772 Sh.seal Ring 30X47X7 Bsl Viton94 |
0760304772 |
US $26.23 |
||
|
15
|
15
0137120000 Spring washer din0137-b1294 |
0137120000 |
US $0.39 |
||
|
16
|
16
51030028100 Collar Nut M12X1 Left Ws=1794 |
51030028100 |
US $10.35 |
||
|
21
|
21
58030019000 Locking ring vsk 2094 |
58030019000 |
US $1.70 |
||
|
22
|
22
0936200155 Hexagon nut din0936-m20x1,594 |
0936200155 |
US $8.52 |
||
|
23
|
23
0760122270 Shaft Seal Ring 12 X 22 X 7 B94 |
0760122270 |
US $15.86 |
||
|
30
|
30
57730007000I
Piston i 89mm cpl. cast '99
94 |
57730007000I |
— | ||
|
30
|
30
57730007000II
Piston ii 89mm cpl. cast '99
94 |
57730007000II |
— | ||
|
31
|
31
57530031000 Oil scraper ring 89mm94 |
57530031000 |
US $24.31 |
||
|
32
|
32
57530132000
Tapered compr.piston ring 89mm
94 |
57530132000 |
— | ||
|
33
|
33
57530032000 Rectangular ring 89mm94 |
57530032000 |
US $46.75 |
||
|
34
|
34
57730033000
Piston Bolt 22X13X54,2 '99
94 |
57730033000 |
— | ||
|
40
|
40
58330007500I
Superseded By 58430007100 I
94 |
58330007500I |
— | ||
|
40
|
40
58330007500II
Superseded By 58430007100 Ii
94 |
58330007500II |
— | ||
|
41
|
41
58330031300 Oil scraper ring 101x2,594 |
58330031300 |
US $35.56 |
||
|
42
|
42
58330932100 Tap.compr.piston ring 101x1,2594 |
58330932100 |
US $33.47 |
||
|
43
|
43
58330832000
Rectangular ring 101x1,25
94 |
58330832000 |
— | ||
|
44
|
44
58330833000 Piston pin 22 x 13 x 6094 |
58330833000 |
US $47.82 |
||
|
45
|
45
58030074100 Circlip c 22 x 1,594 |
58030074100 |
US $2.14 |
||
