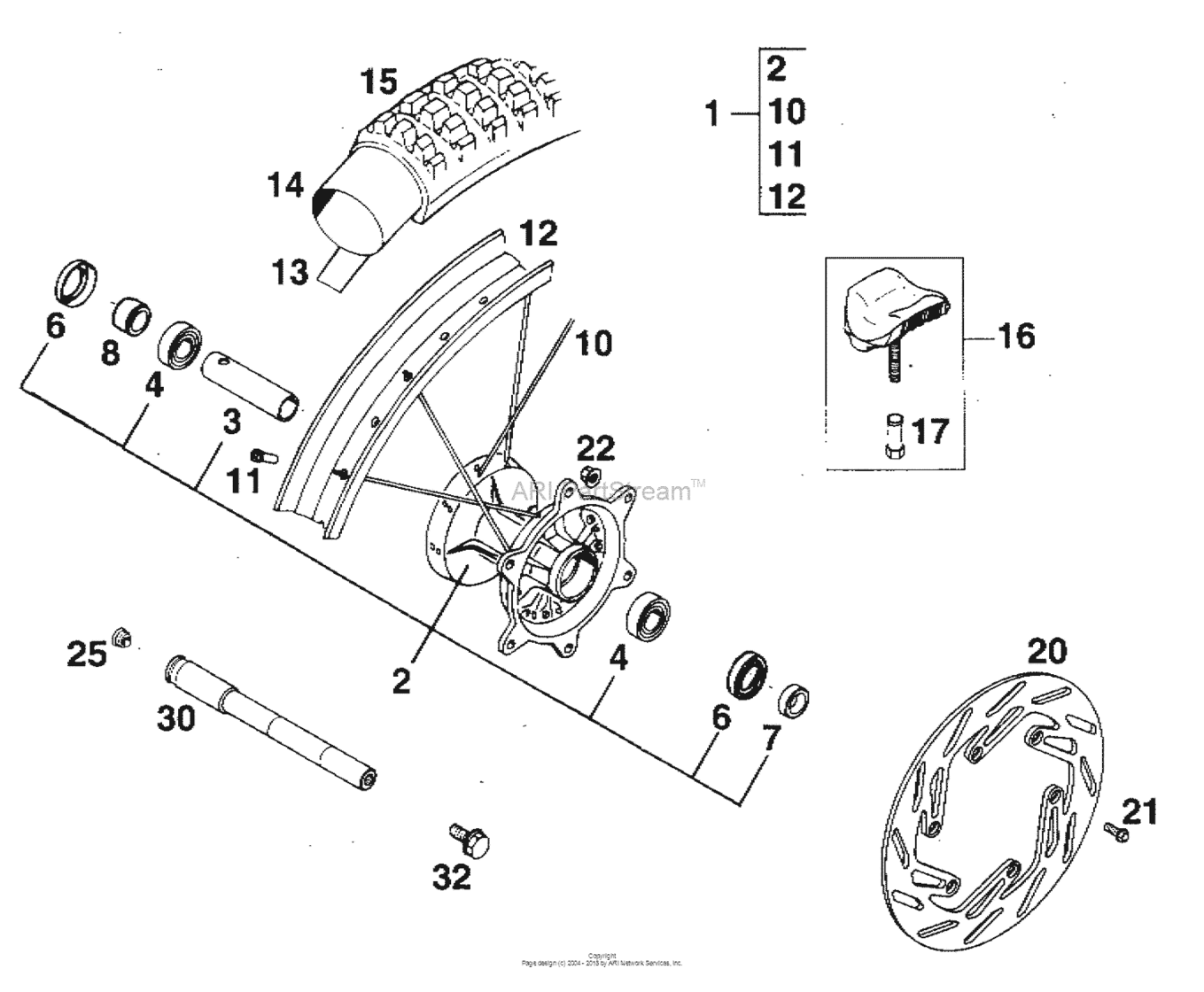

Front Wheel Sx Diagram KTM 620 620 SX
- Year
- 1996
- Sales region
- US/EU
- Engine Capacity
- 620
- Model
- 620 SX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
54609001544
Front wheel 1,6x21"excel sx'94
SX'94 |
54609001544 |
— | ||
|
2
|
2
56509010944
Front Hub
SX'94 |
56509010944 |
— | ||
| replacement | |||||
|
2
|
2
5460911004490 Front wheel hub cpl. sil.17mmSX'94 |
5460911004490 |
US $266.10 |
||
|
3
|
3
56509011400 Bushing spacer tube 17,5x22x82SX'94 |
56509011400 |
US $23.51 |
||
|
4
|
4
0625060037 Gr.ball bear. 6003-2rsh/c3hmtfSX'94 |
0625060037 |
US $27.20 |
||
|
6
|
6
0760253571
Seal Ring
SX'94 |
0760253571 |
— | ||
|
7
|
7
54609051000
Spacer ring 17x25x7,5
SX'94 |
54609051000 |
— | ||
|
8
|
8
54609051100
Spacer bushing 17x25x15
SX'94 |
54609051100 |
— | ||
|
10
|
10
58309071234 Spoke m5x234-15g 21" ddeSX'94 |
58309071234 |
US $4.28 |
||
|
11
|
11
56509072000
Spoke Sipple Quadrax M5
Not Available
SX'94 |
56509072000 |
— | ||
| replacement | |||||
|
11
|
11
60310072000
SPOKE NIPPLE QUADRAX M5
SX'94 |
60310072000 |
— | ||
|
12
|
12
54609070100 Front Rim 1,6X21 Excel Al4SX'94 |
54609070100 |
US $309.26 |
||
|
13
|
13
51009073000 Rim Band 21SX'94 |
51009073000 |
US $15.27 |
||
| replacement | |||||
|
13
|
13
50309073000 Rim Band 21SX'94 |
50309073000 |
US $8.59 |
||
|
14
|
14
54509075000
Inner Tube 80/100-21
SX'94 |
54509075000 |
— | ||
|
15
|
15
54609174300
Tyre
SX'94 |
54609174300 |
— | ||
|
16
|
16
51009100100 Rim Lock 1,60SX'94 |
51009100100 |
US $20.55 |
||
| replacement | |||||
|
16
|
16
78109090000 Rim Lock 1,60SX'94 |
78109090000 |
US $20.43 |
||
|
17
|
17
50310090050 Nut for wheel holder '9696 |
50310090050 |
US $4.01 |
||
| replacement | |||||
|
17
|
17
77110090050 Nut For Wheel Holder96 |
77110090050 |
US $3.60 |
||
|
20
|
20
56509060700 Brake Disc 260Mm96 |
56509060700 |
US $219.37 |
||
| replacement | |||||
|
20
|
20
54809060200 BRAKE DISC FRONT D=260MM 0596 |
54809060200 |
US $155.92 |
||
|
21
|
21
0912060166 Ah Screw Din6912-M 6X1696 |
0912060166 |
US $1.31 |
||
| replacement | |||||
|
21
|
21
0984060163 Ah Screw Din6912-M 6X1696 |
0984060163 |
US $1.24 |
||
|
22
|
22
56509064000 Self Locking Nut M6 10.996 |
56509064000 |
US $1.14 |
||
| replacement | |||||
|
22
|
22
56509064100 Self Locking Nut M6 10.996 |
56509064100 |
US $1.04 |
||
|
25
|
25
55009086000 Plug sfl1396 |
55009086000 |
US $1.39 |
||
|
30
|
30
58009181600
Wheel spindle frt l=226mm'95
96 |
58009181600 |
— | ||
|
32
|
32
49032011000 Hh collar screw m10x20 ws=1796 |
49032011000 |
US $5.73 |
||
