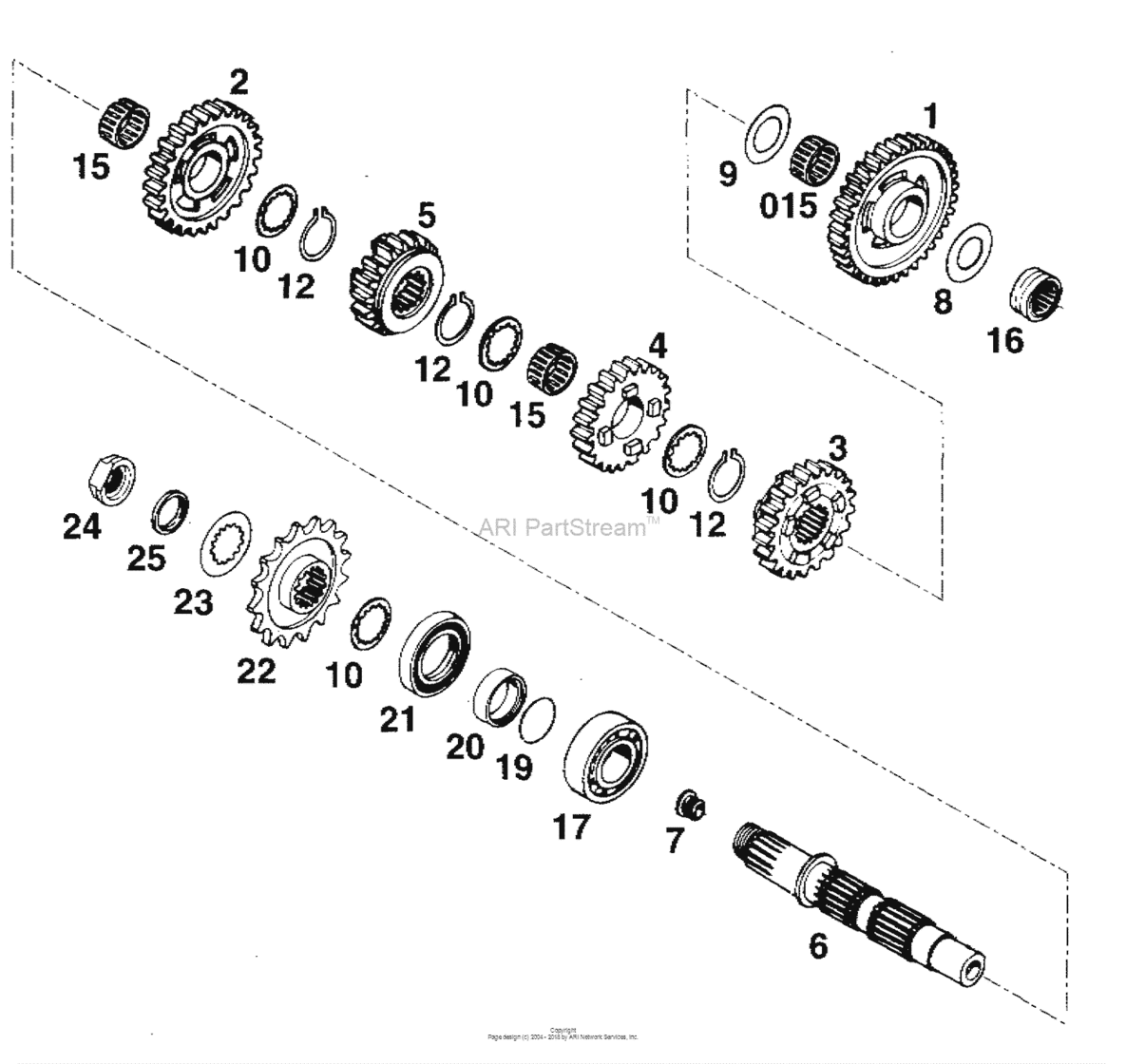

Transmission Ll Diagram KTM 620 620 SX
- Year
- 1996
- Sales region
- US/EU
- Engine Capacity
- 620
- Model
- 620 SX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
57533005000 Idler gear 1st gear 33t(1m4)9393 |
57533005000 |
US $100.45 |
||
|
2
|
2
56533013400 2nd gear countershaft 24 t 2m493 |
56533013400 |
US $113.73 |
||
|
2
|
2
56533013300 2nd gear countershaft 24 t 2g393 |
56533013300 |
US $190.49 |
||
|
3
|
3
56533007300
3rd gear countershaft 21 t 3m3
93 |
56533007300 |
— | ||
|
4
|
4
56533009300
4th gear mainshaft 19 t 4m3
93 |
56533009300 |
— | ||
|
5
|
5
56533011300 5th gear countershaft 21 t 5m393 |
56533011300 |
US $113.20 |
||
|
6
|
6
58033003100 Countershaft93 |
58033003100 |
US $238.02 |
||
|
7
|
7
50033001000 Plastic cap93 |
50033001000 |
US $1.21 |
||
|
8
|
8
56533015000
Stop disk 20,2 x 35 x 1
93 |
56533015000 |
— | ||
|
9
|
9
56533018300 Stop disk 22,2 x 35 x 1,593 |
56533018300 |
US $4.39 |
||
|
10
|
10
56533016300 Stop disk 22,7 x 32 x 1,593 |
56533016300 |
US $5.68 |
||
|
12
|
12
52033096000 Lock ring din0471-25x1,64sd93 |
52033096000 |
US $4.17 |
||
|
15
|
15
56533099000 Needle Bear. K 22X26X13 Tn93 |
56533099000 |
US $11.36 |
||
| replacement | |||||
|
15
|
15
0405222613 Needle Bear. K 22X26X13 Tn93 |
0405222613 |
US $9.52 |
||
|
015
|
015
56533098000 Needle bearing k22x26x13h93 |
56533098000 |
US $13.74 |
||
|
16
|
16
56533093000 Needle bearing rna 4902 kse93 |
56533093000 |
US $22.32 |
||
|
17
|
17
49030023000 Cyl.roll Bearing Nj20593 |
49030023000 |
US $67.86 |
||
|
19
|
19
0770250021 O-ring 25,00x2,00 silicone93 |
0770250021 |
US $4.35 |
||
|
20
|
20
58033017000
Spacer bushing
93 |
58033017000 |
— | ||
|
21
|
21
0760324771 Shaft Seal Ring 32X47X7 Bsl93 |
0760324771 |
US $17.20 |
||
|
22
|
22
58033029014 Engine sprocket 14 t93 |
58033029014 |
US $33.90 |
||
|
22
|
22
58033029015 Engine sprocket 15 t93 |
58033029015 |
US $34.58 |
||
|
22
|
22
58033029016 Engine sprocket 16 t93 |
58033029016 |
US $34.60 |
||
|
23
|
23
51033031000 Lock washer93 |
51033031000 |
US $6.73 |
||
|
24
|
24
58033032100
Superseded By 58033032200
LC4'91 |
58033032100 |
— | ||
|
25
|
25
58033030000
Spacer ring
LC4'91 |
58033030000 |
— | ||
