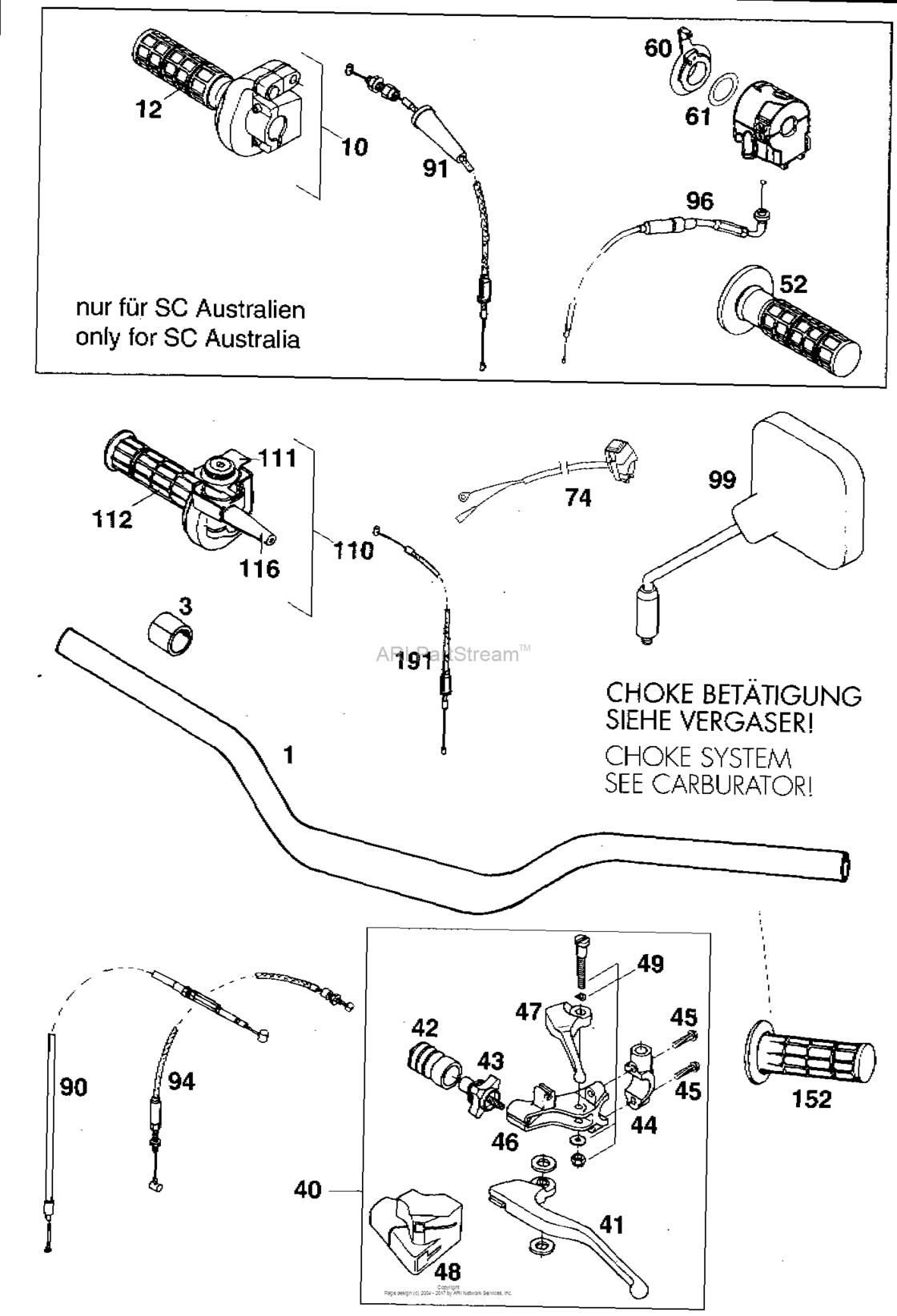

Handlebar, Controls Diagram KTM 620 620 SXC
- Year
- 1997
- Sales region
- US/EU
- Engine Capacity
- 620
- Model
- 620 SXC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
|
58012140000 Rear mirror r/s(As Required) |
58012140000 |
US $42.67 |
||
|
1
|
1
58302001300 Alu-handlebar sx,sc,advent.'97SX.SC97 |
58302001300 |
US $167.13 |
||
|
3
|
3
50202010000
Spacer bushing 22x28x22pvc
(As Required) |
50202010000 |
— | ||
|
10
|
10
58302010000 Throttle Grip Cpl.domino '9393 |
58302010000 |
US $118.37 |
||
|
12
|
12
58302003000
Gripp Set Full Waffle
93 |
58302003000 |
— | ||
| replacement | |||||
|
12
|
12
58302021000 Gripp set full waffle93 |
58302021000 |
US $28.88 |
||
|
40
|
40
58302040100 Clutch lever assy cpl.domino93 |
58302040100 |
US $112.85 |
||
|
41
|
41
58302055000 Clutch Lever Loose Silver '9793 |
58302055000 |
US $49.42 |
||
| replacement | |||||
|
41
|
41
58402042000 Clutch lever loose silver '9793 |
58402042000 |
US $45.36 |
||
|
42
|
42
54602126000 Bellows clutch lever '9191 |
54602126000 |
US $14.35 |
||
|
43
|
43
58302043000 Adjustment Screw Cpl.m791 |
58302043000 |
US $22.42 |
||
|
44
|
44
58302044000 Clamp mirrow m10x1,2591 |
58302044000 |
US $11.41 |
||
|
45
|
45
015060253
Hh Collar Screw M 6X25
WS=8 |
015060253 |
— | ||
|
46
|
46
58302023000 Joint dominoWS=8 |
58302023000 |
US $51.48 |
||
|
47
|
47
58302047000 Decompression lever looseWS=8 |
58302047000 |
US $12.19 |
||
|
48
|
48
58302048000 Protecting coverWS=8 |
58302048000 |
US $8.30 |
||
|
49
|
49
58302049000 Lever screw cpl.WS=8 |
58302049000 |
US $6 |
||
|
52
|
52
58302052000
Rubber Grip
93 |
58302052000 |
— | ||
| replacement | |||||
|
52
|
52
58302021000 Gripp set full waffle93 |
58302021000 |
US $28.88 |
||
|
60
|
60
58302050100 Choke lever domino '9494 |
58302050100 |
US $9.04 |
||
|
61
|
61
0988253505 Thrust wash. din0988-25x35x0,594 |
0988253505 |
US $3.33 |
||
|
74
|
74
50311089000
Short Circuit Button 02
97 |
50311089000 |
— | ||
| replacement | |||||
|
74
|
74
50311089200 Short Circuit Button 0297 |
50311089200 |
US $50.97 |
||
|
90
|
90
50202090200 Clutch Cable94 |
50202090200 |
US $40.48 |
||
| replacement | |||||
|
90
|
90
58402090000 Clutch cable 4t l=1115mm '9994 |
58402090000 |
US $36.65 |
||
|
91
|
91
58302091000
Throttle cable domino/dellorto
94 |
58302091000 |
— | ||
|
94
|
94
58302094000 Decompression cable lc4 '9393 |
58302094000 |
US $37.81 |
||
|
96
|
96
58302095100 Choke cable lc4 '9494 |
58302095100 |
US $41.38 |
||
|
99
|
99
58012040000 Rear mirror l/s94 |
58012040000 |
US $41.60 |
||
|
110
|
110
58002010000
Throttle Twist Grip Cpl.black
(As Required) |
58002010000 |
— | ||
| replacement | |||||
|
110
|
110
56502010000 Throttle twist grip cpl.black(As Required) |
56502010000 |
US $115.41 |
||
|
111
|
111
58002011000
Cover with knurled screw
(As Required) |
58002011000 |
— | ||
|
112
|
112
56502003000
Twist Grip Cover Long Black
(As Required) |
56502003000 |
— | ||
|
116
|
116
54002016000 Protection cap(As Required) |
54002016000 |
US $10.71 |
||
|
152
|
152
56502052000
Grip
(As Required) |
56502052000 |
— | ||
|
191
|
191
58002091100 Throttle cable magura/dellorto(As Required) |
58002091100 |
US $29.14 |
||
