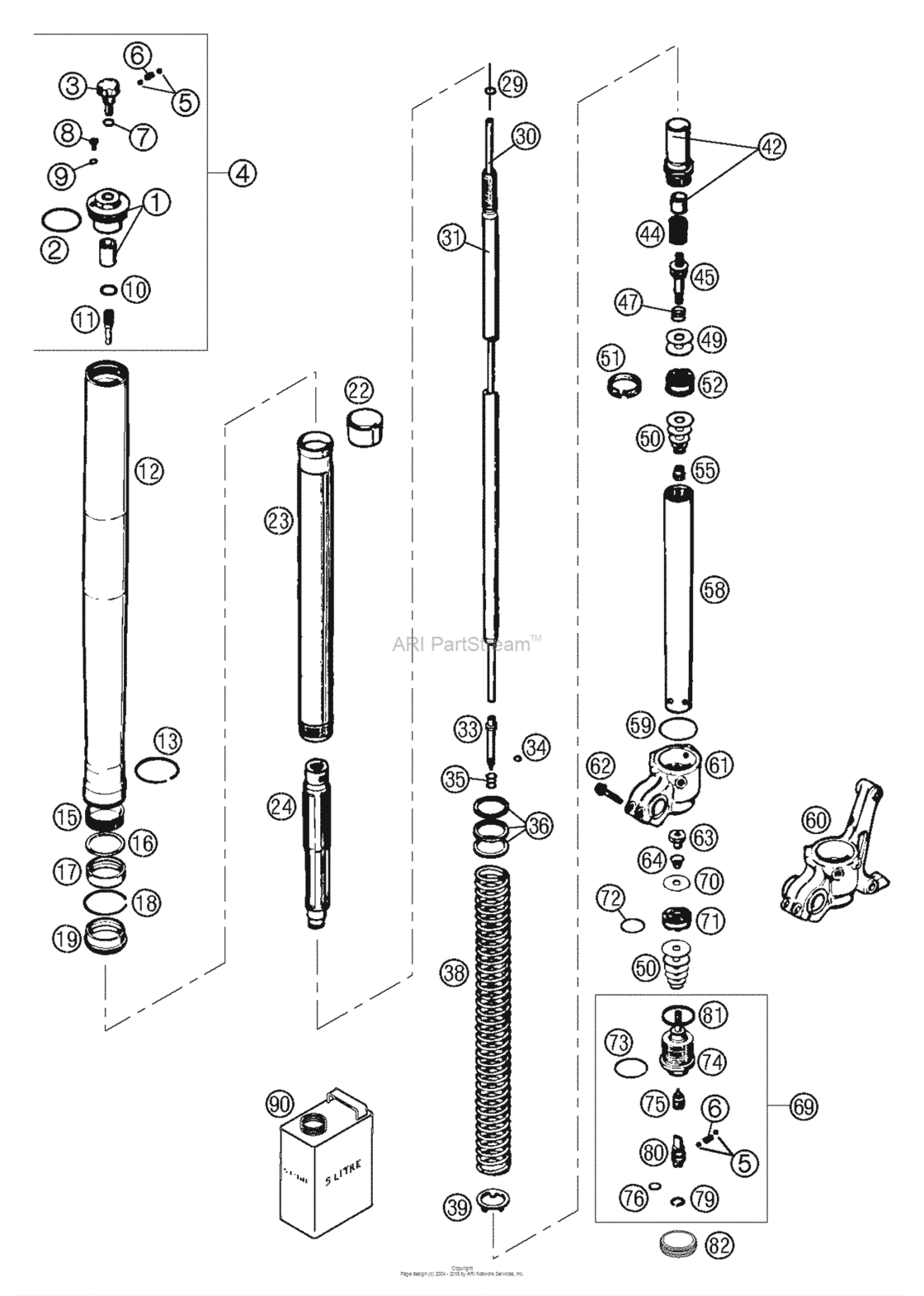

Fork Legs Wp Usd 43 Diagram KTM 625 625 LC4 Super Competition
- Year
- 2002
- Sales region
- US/EU
- Engine Capacity
- 625
- Model
- 625 LC4 Super Competition
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
48600020S
Screw Cap M51X1,5 Cpl
625 SC |
48600020S |
— | ||
| replacement | |||||
|
1
|
1
48600020S1
Screw Cap M51X1,5 Cpl
625 SC |
48600020S1 |
— | ||
|
2
|
2
46810340 O-ring nbr 45x2625 SC |
46810340 |
US $4.01 |
||
|
3
|
3
48600018 Knob reboung adjuster625 SC |
48600018 |
US $6 |
||
|
4
|
4
48600020S1
Screw Cap M51X1,5 Cpl
625 SC |
48600020S1 |
— | ||
|
5
|
5
40540603 Steel ball d=3mm625 SC |
40540603 |
US $1.22 |
||
|
6
|
6
48600028 Spring d=2,9 l=7,9625 SC |
48600028 |
US $3.03 |
||
|
7
|
7
48600044 O-ring nbr 6x1,5625 SC |
48600044 |
US $1.14 |
||
|
8
|
8
48600058 Vent screw m4x6625 SC |
48600058 |
US $2.09 |
||
|
9
|
9
48600009 O-ring nbr 3,7x1,6625 SC |
48600009 |
US $0.90 |
||
|
10
|
10
48600043 O-ring nbr 12x1,5625 SC |
48600043 |
US $2.24 |
||
|
11
|
11
48600019 Holder f.adjustment tube d=4mm625 SC |
48600019 |
US $3.69 |
||
|
12
|
12
43570125 Outer tube l=577mm d=54/57mm625 SC |
43570125 |
US $433.45 |
||
|
13
|
13
43570099 Guiding ring d=53mm625 SC |
43570099 |
US $26.25 |
||
|
15
|
15
43570019 Du-bush 47 x 43 x 20625 SC |
43570019 |
US $27.86 |
||
|
16
|
16
43570092 Support ring 45 x 52,5 x 1,5625 SC |
43570092 |
US $16.83 |
||
|
17
|
17
43570140
Oil Seal Ring 43 X 52,9 X 9,5
625 SC |
43570140 |
— | ||
| replacement | |||||
|
17
|
17
43570201 Oil Seal Ring 43 X 52,9 X 9,5625 SC |
43570201 |
US $26.45 |
||
|
18
|
18
43570008 Lock washer sb53625 SC |
43570008 |
US $2.89 |
||
|
19
|
19
43570094
Dust Stripper 43 X 53,4 X 11,8
625 SC |
43570094 |
— | ||
| replacement | |||||
|
19
|
19
43570202 Dust Stripper 43 X 53,4 X 11,8625 SC |
43570202 |
US $23.36 |
||
|
22
|
22
43570020 Du-bush 43,8 x 43 x 20625 SC |
43570020 |
US $26.57 |
||
| replacement | |||||
|
22
|
22
43570617 Guide Bushing 42X44X20 R11625 SC |
43570617 |
US $13.91 |
||
|
23
|
23
43570145
Superseded By 43570221
625 SC |
43570145 |
— | ||
|
24
|
24
43570142S
Hydr.stop L=200 D=27,5 Cpl. 05
625 SC |
43570142S |
— | ||
| replacement | |||||
|
24
|
24
43570142S1 Hydr.stop l=200 d=27,5 cpl. 05625 SC |
43570142S1 |
US $60.74 |
||
|
29
|
29
48600175
O-Ring Nbr 6,3X2,4
625 SC |
48600175 |
— | ||
|
30
|
30
48600014 Adjustment tube l=512mm625 SC |
48600014 |
US $17.41 |
||
|
30
|
30
48600094 Adjustment tube l=492mm625 SC SUPERMOTO |
48600094 |
US $16.95 |
||
|
31
|
31
48600023 Pistonr. d=14mm l=546mm m11x1625 SC |
48600023 |
US $79.78 |
||
|
31
|
31
48600093
Pistonrod D=14Mm L=526Mm M11X1
625 SC SUPERMOTO |
48600093 |
— | ||
|
33
|
33
48600150
Rebound needle
625 SC SUPERMOTO |
48600150 |
— | ||
|
34
|
34
48600046 O-ring nbr 3x1,5625 SC SUPERMOTO |
48600046 |
US $2.47 |
||
|
35
|
35
48600033 Spring rebound needle c=4n/mm625 SC SUPERMOTO |
48600033 |
US $15.81 |
||
|
36
|
36
48600036 Spacer 42x26,5x2,5625 SC SUPERMOTO |
48600036 |
US $6.48 |
||
|
36
|
36
48600037 Spacer 42x26,5x5625 SC SUPERMOTO |
48600037 |
US $6.41 |
||
|
36
|
36
48600038 Spacer 42x26,5x10625 SC SUPERMOTO |
48600038 |
US $8.04 |
||
|
36
|
36
48600053 Spacer 42X26,5X1,5625 SC SUPERMOTO |
48600053 |
US $7.09 |
||
|
38
|
38
95010010S Spring 3,6 n/mm set d=4,6mm625 SC SUPERMOTO |
95010010S |
US $217.69 |
||
|
38
|
38
95010002S Spring 4,0 n/mm set d=4,75mm625 SC SUPERMOTO |
95010002S |
US $217.69 |
||
|
38
|
38
95010003S Spring 4,2 n/mm set d=4,9mm625 SC |
95010003S |
US $223.13 |
||
|
38
|
38
95010012S Spring 4,4 n/mm set d=4,9mm625 SC |
95010012S |
US $217.69 |
||
|
38
|
38
95010022S Spring 5,0 n/mm set d=5,0mm625 SC SUPERMOTO |
95010022S |
US $223.13 |
||
|
39
|
39
43570131 Interm. ring 26,2x38,5x3625 SC SUPERMOTO |
43570131 |
US $15.28 |
||
|
42
|
42
43570132S
Screw sleeve m29,3x1+bush
625 SC SUPERMOTO |
43570132S |
— | ||
|
44
|
44
48600015
Rebound spring d=14,6mm l=22mm
625 SC SUPERMOTO |
48600015 |
— | ||
|
45
|
45
48600151
Tab rebound
625 SC SUPERMOTO |
48600151 |
— | ||
|
47
|
47
35480377 Spring check valve d=0,5625 SC SUPERMOTO |
35480377 |
US $2.53 |
||
|
49
|
49
48600062 Check valve 8x24x0,1625 SC SUPERMOTO |
48600062 |
US $3.26 |
||
|
50
|
50
40540401 Shim 6x14x0,1625 SC SUPERMOTO |
40540401 |
US $3.49 |
||
|
50
|
50
40540402 Shim 6x16x0,1625 SC SUPERMOTO |
40540402 |
US $2.72 |
||
|
50
|
50
40540403 Shim 6x18x0,1625 SC SUPERMOTO |
40540403 |
US $2.87 |
||
|
50
|
50
40540405 Shim 6x14x0,15625 SC SUPERMOTO |
40540405 |
US $3.62 |
||
|
50
|
50
40540411 Shim 6x18x0,2625 SC SUPERMOTO |
40540411 |
US $3.79 |
||
|
50
|
50
40540414 Shim 6x16x0,25625 SC SUPERMOTO |
40540414 |
US $3.72 |
||
|
50
|
50
40540447 Shim 6x10x0,3625 SC SUPERMOTO |
40540447 |
US $2.23 |
||
|
50
|
50
40541402 Shim 6x11x0,2625 SC SUPERMOTO |
40541402 |
US $3.15 |
||
|
50
|
50
40541417 Shim 6x11x0,25625 SC SUPERMOTO |
40541417 |
US $3.15 |
||
|
50
|
50
48600063 Shim 6x24x0,1625 SC SUPERMOTO |
48600063 |
US $2.77 |
||
|
50
|
50
48600064 Shim 6x22x0,1625 SC SUPERMOTO |
48600064 |
US $4.17 |
||
|
50
|
50
48600065 Shim 6x20x0,1625 SC SUPERMOTO |
48600065 |
US $3.67 |
||
|
50
|
50
48600116 Shim 6X24X0,1 Delta625 SC SUPERMOTO |
48600116 |
US $5.95 |
||
|
50
|
50
48600139 Shim 6X22X0,1 Delta625 SC SUPERMOTO |
48600139 |
US $3.88 |
||
|
51
|
51
48600060 Piston ring 5x1x84625 SC SUPERMOTO |
48600060 |
US $6 |
||
|
52
|
52
48600042 Piston rebound d=27,7625 SC SUPERMOTO |
48600042 |
US $48.96 |
||
|
55
|
55
40540486 Nut m6x0,5 rebound625 SC SUPERMOTO |
40540486 |
US $5.20 |
||
|
58
|
58
48600081 Tube 29,3x1x390 d=8,5mm625 SC |
48600081 |
US $119.51 |
||
|
58
|
58
48600140 Tube 29,3x1x385 aluSC SUPERMOTO |
48600140 |
US $94.13 |
||
|
59
|
59
43570023 O-ring nbr 41x2SC SUPERMOTO |
43570023 |
US $3.69 |
||
|
60
|
60
43570124 Axle clamp l/s 260mm m8 2000SC SUPERMOTO |
43570124 |
US $252.42 |
||
|
61
|
61
43570123
Axle Clamp R/s Cpl. Usd 43 04
SC SUPERMOTO |
43570123 |
— | ||
| replacement | |||||
|
61
|
61
43570123S Axle clamp r/s cpl. usd 43 04SC SUPERMOTO |
43570123S |
US $281.38 |
||
|
62
|
62
50600061 Hh Collar Screw M8X30 Tx40SC SUPERMOTO |
50600061 |
US $5.20 |
||
| replacement | |||||
|
62
|
62
0025080306 Hh collar screw m8x30 tx40SC SUPERMOTO |
0025080306 |
US $3.89 |
||
|
63
|
63
40541241 Check valve nut m6x0,5SC SUPERMOTO |
40541241 |
US $8.14 |
||
|
64
|
64
40541278 Spring check valve d=0,5mmSC SUPERMOTO |
40541278 |
US $7.87 |
||
|
69
|
69
48600152S Tap Compression CplSC SUPERMOTO |
48600152S |
US $70.04 |
||
| replacement | |||||
|
69
|
69
48600586E Tap Compression CplSC SUPERMOTO |
48600586E |
US $96.46 |
||
|
70
|
70
48600061 Check valve 8x24x0,4SC SUPERMOTO |
48600061 |
US $4.32 |
||
|
71
|
71
48600047 Piston compression d=27,9SC SUPERMOTO |
48600047 |
US $49.96 |
||
|
72
|
72
46811499 O-ring nbr 21x2SC SUPERMOTO |
46811499 |
US $1.48 |
||
|
73
|
73
35480320 O-ring nbr 24x2SC SUPERMOTO |
35480320 |
US $2.70 |
||
|
74
|
74
48600152
Tap Compression Cpl
SC SUPERMOTO |
48600152 |
— | ||
| replacement | |||||
|
74
|
74
48600586E Tap Compression CplSC SUPERMOTO |
48600586E |
US $96.46 |
||
|
75
|
75
48600153 Needle compression m10x1SC SUPERMOTO |
48600153 |
US $6.21 |
||
|
76
|
76
48600049 O-ring nbr 8x2SC SUPERMOTO |
48600049 |
US $3.67 |
||
|
79
|
79
48600051 Lock washer rb12SC SUPERMOTO |
48600051 |
US $1.39 |
||
|
80
|
80
48600034
Compression adj. screw
SC SUPERMOTO |
48600034 |
— | ||
|
81
|
81
48600004 Copper washer 29,5x33,5x1SC SUPERMOTO |
48600004 |
US $1.65 |
||
|
82
|
82
48600141 Rubber cap d=35mmSC SUPERMOTO |
48600141 |
US $3.42 |
||
|
90
|
90
40540882S1
Forkoil Sae 5 5L
SC SUPERMOTO |
40540882S1 |
— | ||
