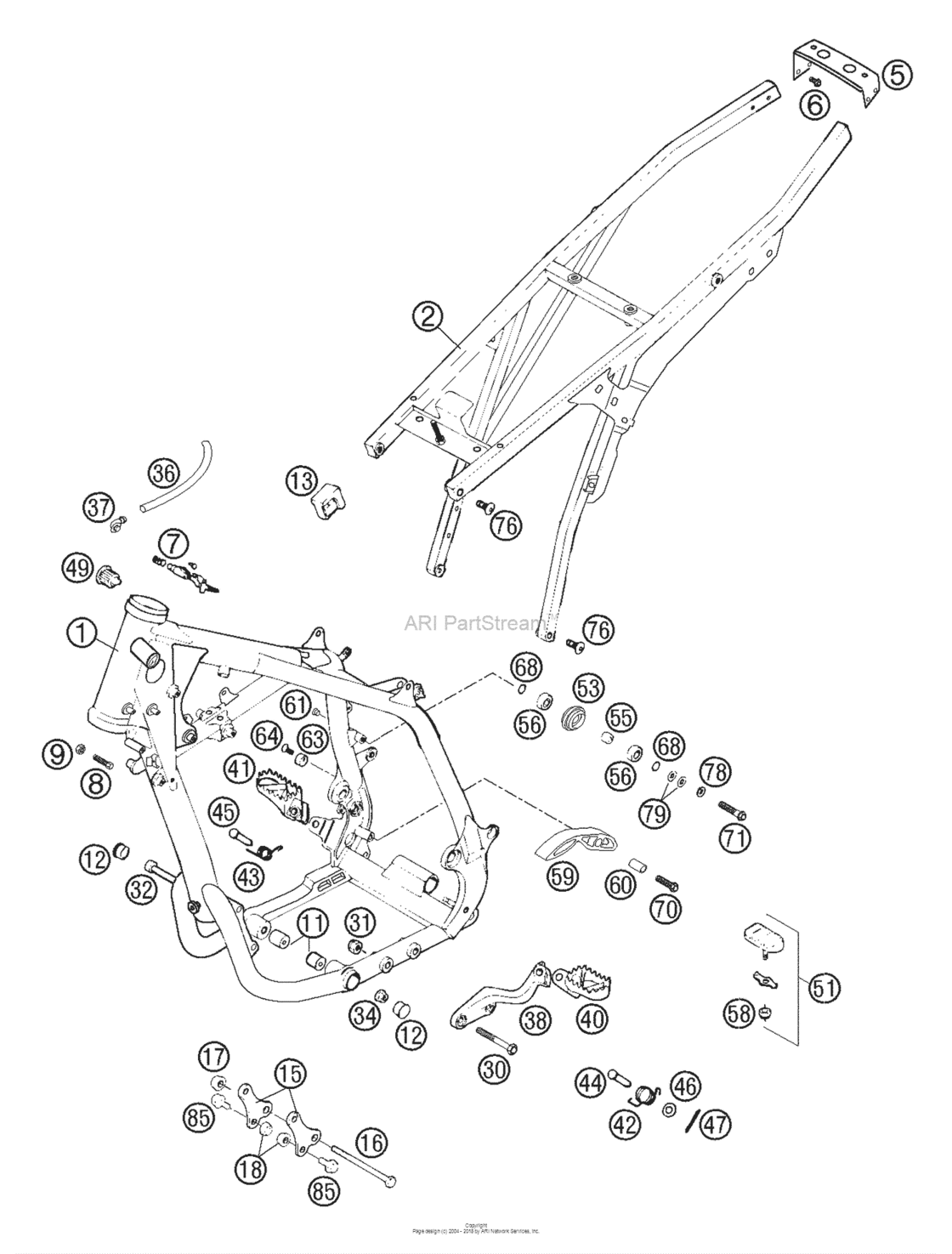

Frame, Sub Frame Diagram KTM 625 625 LC4 Super Competition
- Year
- 2002
- Sales region
- US/EU
- Engine Capacity
- 625
- Model
- 625 LC4 Super Competition
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5830310144490
Frame 625 Sc Silver 2002 With Bearings
FOR LINKING |
5830310144490 |
— | ||
|
2
|
2
58303102544
Sub Frame Cpl.alu 400/620Sc 99
FOR LINKING |
58303102544 |
— | ||
|
5
|
5
58403002152
Overlap Metal Sheet S.frame ’99
FOR LINKING |
58403002152 |
— | ||
|
6
|
6
0015060103
Hh collar screw m 6x10 ws=8
FOR LINKING |
0015060103 |
— | ||
| replacement | |||||
|
6
|
6
0025060106 Hh collar screw m6x10 tx30FOR LINKING |
0025060106 |
US $1.58 |
||
|
7
|
7
71003007000 Steering head lock cpl. zadiFOR LINKING |
71003007000 |
US $28.07 |
||
|
8
|
8
59001037000 Special screw m8x26 ws=10FOR LINKING |
59001037000 |
US $2.09 |
||
|
9
|
9
0934080003 Hexagon Nut Din0934-M 8FOR LINKING |
0934080003 |
US $3.26 |
||
|
11
|
11
58003012000 Spacer roller 10,3x20x22FOR LINKING |
58003012000 |
US $10.39 |
||
|
12
|
12
71001012100 Pvc cap d=22mmFOR LINKING |
71001012100 |
US $2.11 |
||
|
13
|
13
58307015000 Tank support '93FOR LINKING |
58307015000 |
US $7.28 |
||
|
15
|
15
58303055000 Engine support agw '94FOR LINKING |
58303055000 |
US $13.55 |
||
|
16
|
16
0931101103 Hh screw din0931-m10x110FOR LINKING |
0931101103 |
US $2.23 |
||
|
17
|
17
49009082000 Self locking nut m10 fk8FOR LINKING |
49009082000 |
US $2.31 |
||
|
18
|
18
54310086200 Self Locking Nut M8 10.9FOR LINKING |
54310086200 |
US $1.56 |
||
|
30
|
30
0931100603
Hh screw din0931-m10x60
FOR LINKING |
0931100603 |
— | ||
|
31
|
31
0985100003 Self locking nut din0985-m10FOR LINKING |
0985100003 |
US $1.22 |
||
|
32
|
32
0912101603 Ah screw din0912-m10x160FOR LINKING |
0912101603 |
US $8.33 |
||
|
34
|
34
54630044000 Collar nut m10 ws=13FOR LINKING |
54630044000 |
US $2.16 |
||
|
36
|
36
55007016001 Pvc-hose 7x10 per meterFOR LINKING |
55007016001 |
US $5.98 |
||
|
37
|
37
50303089000 Angle piece '97FOR LINKING |
50303089000 |
US $4.52 |
||
|
38
|
38
5830303800090
Footrest bracket l/s silver'99
FOR LINKING |
5830303800090 |
— | ||
|
40
|
40
5830304000090 Footrest l/s silver '99FOR LINKING |
5830304000090 |
US $46.82 |
||
|
41
|
41
5460314000090 Foot rest r/s silver '98FOR LINKING |
5460314000090 |
US $43.61 |
||
|
42
|
42
58303041000 Footrest spring l/s '93FOR LINKING |
58303041000 |
US $6.41 |
||
|
43
|
43
54603041000 Footrest Spring L/s & R/sFOR LINKING |
54603041000 |
US $3.52 |
||
|
44
|
44
58303044000 Bolt for footrestFOR LINKING |
58303044000 |
US $8.14 |
||
|
45
|
45
54603044000 Bolt for footrest 9,8 x 50FOR LINKING |
54603044000 |
US $7.62 |
||
|
46
|
46
0125100003 Washer Din0125-A10,5FOR LINKING |
0125100003 |
US $1.19 |
||
|
47
|
47
0094032253 Pin din0094-3,2x25 steelFOR LINKING |
0094032253 |
US $1.12 |
||
| replacement | |||||
|
47
|
47
0094032250 Pin din0094-3,2x25 steelFOR LINKING |
0094032250 |
US $1.12 |
||
|
49
|
49
42007049000
Plastic cap
FOR LINKING |
42007049000 |
— | ||
|
51
|
51
58303045044 Footrest rubber cpl. '94FOR LINKING |
58303045044 |
US $17.27 |
||
|
53
|
53
52303053000 Chain roll d=30mm 125-380 '99FOR LINKING |
52303053000 |
US $6.75 |
||
|
55
|
55
74003021000 Bushing 8.2 x 12 x 6FOR LINKING |
74003021000 |
US $2.14 |
||
|
56
|
56
0625006087 Grooved Ball Bear. 608 2Rs C3FOR LINKING |
0625006087 |
US $19.19 |
||
|
58
|
58
0985060003 Self Lock. Nut Din0985-M 6FOR LINKING |
0985060003 |
US $2.60 |
||
|
59
|
59
51103053000 Chain sliding piece below '97FOR LINKING |
51103053000 |
US $13.24 |
||
|
60
|
60
51103053051 Bushing 8,2x10x20FOR LINKING |
51103053051 |
US $3.06 |
||
|
61
|
61
54403135000 Plastic cap sfl10FOR LINKING |
54403135000 |
US $1.31 |
||
|
63
|
63
58303063000 Brake lever stop '93FOR LINKING |
58303063000 |
US $5.07 |
||
|
64
|
64
0991060203 Flat Head Din7991-M 6X20FOR LINKING |
0991060203 |
US $2.99 |
||
| replacement | |||||
|
64
|
64
0991060202 Flat head din7991-m 6x20FOR LINKING |
0991060202 |
US $3.26 |
||
|
68
|
68
36003014000 Lock washer 8mmFOR LINKING |
36003014000 |
US $0.46 |
||
|
70
|
70
0015080303
Hh Collar Screw M8X30 Tx40
FOR LINKING |
0015080303 |
— | ||
| replacement | |||||
|
70
|
70
0025080306 Hh collar screw m8x30 tx40FOR LINKING |
0025080306 |
US $3.89 |
||
|
71
|
71
0015080403
Hh Collar Screw M8X40 Tx40
FOR LINKING |
0015080403 |
— | ||
| replacement | |||||
|
71
|
71
0025080406 Hh collar screw m8x40 tx40FOR LINKING |
0025080406 |
US $2.62 |
||
|
76
|
76
54510052100
Counter-Sunk Screw Isa45 M8X26
FOR LINKING |
54510052100 |
— | ||
| replacement | |||||
|
76
|
76
0019080266S Counter-sunk screw isa45 m8x26FOR LINKING |
0019080266S |
US $2.23 |
||
|
78
|
78
0797080003 Toothlock washer din6797-j 8,4FOR LINKING |
0797080003 |
US $0.20 |
||
|
79
|
79
0125080003 Washer din0125-a 8,4FOR LINKING |
0125080003 |
US $2.02 |
||
|
85
|
85
49109481052 Hh collar screw m 8x16 ws=13FOR LINKING |
49109481052 |
US $2.06 |
||
