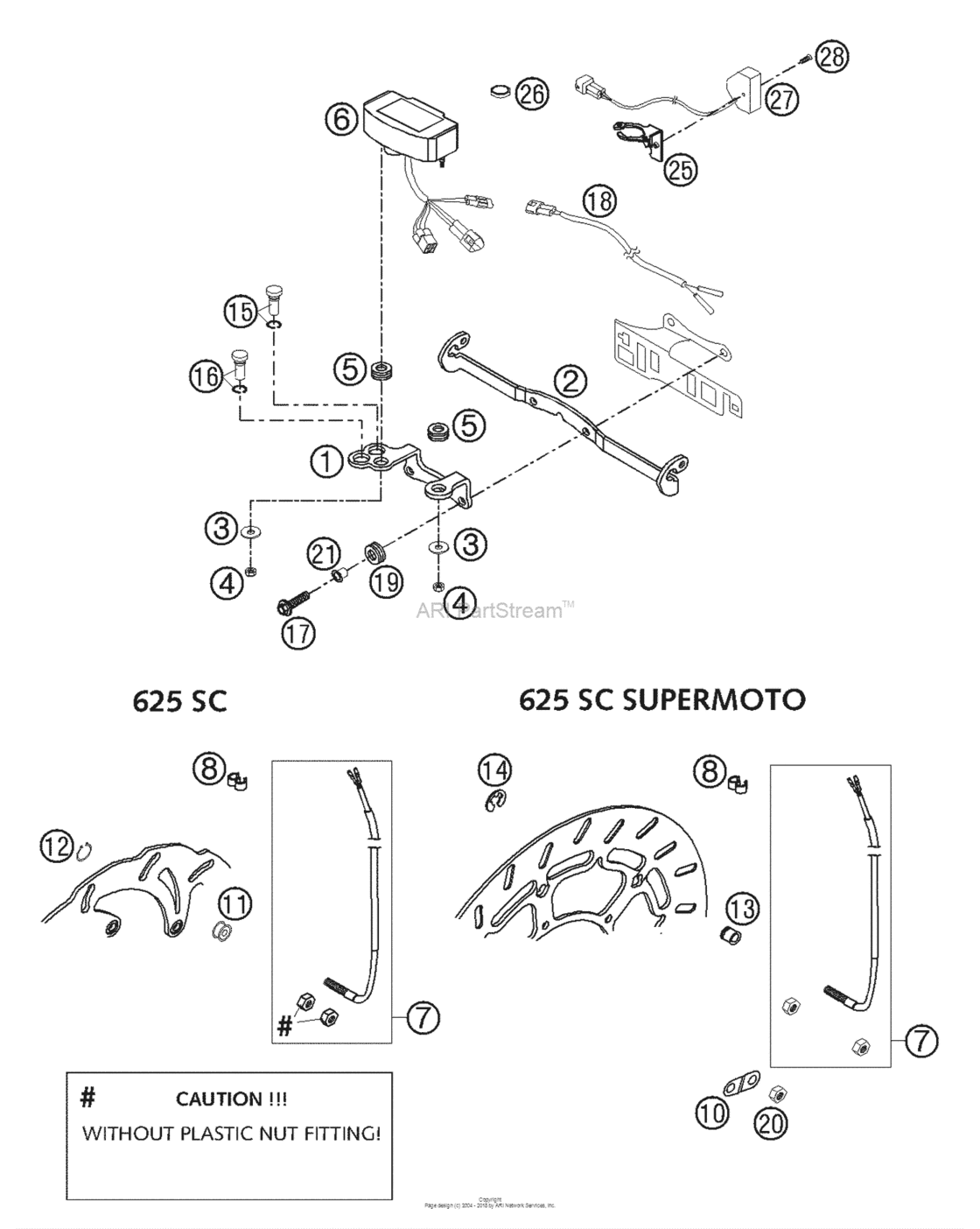

Speedometer M.a.e. Diagram KTM 625 625 LC4 Super Competition
- Year
- 2002
- Sales region
- US/EU
- Engine Capacity
- 625
- Model
- 625 LC4 Super Competition
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
58314060000
Speedomet.bracket M.a.e. 2002
625 SC SUPERMOTO |
58314060000 |
— | ||
|
2
|
2
58314033100
Flasher Bracket 2002
625 SC SUPERMOTO |
58314033100 |
— | ||
|
3
|
3
0021050003 Washer din9021-a 5,3625 SC SUPERMOTO |
0021050003 |
US $1.29 |
||
|
4
|
4
0985050003 Self Locking Nut Din0985-M 5625 SC SUPERMOTO |
0985050003 |
US $3.26 |
||
|
5
|
5
58214069051 Rubber Grommet 16X10,8X3 02625 SC SUPERMOTO |
58214069051 |
US $4.52 |
||
|
6
|
6
58314069100 Speedometer km/h f. 21" 02625 SC |
58314069100 |
US $374.58 |
||
|
6
|
6
58314069400
Speedometer Km/h F. 17In. 02
625 SC SUPERMOTO |
58314069400 |
— | ||
|
6
|
6
58314069300 Speedometer mph f. 21" 02625 SC |
58314069300 |
US $329.80 |
||
|
6
|
6
58314069500
Speedometer mph f. 17" 02
625 SC SUPERMOTO |
58314069500 |
— | ||
|
7
|
7
58314069151 Cable for sigma 500 '98FOR SIGMA 500 '98 |
58314069151 |
US $115.80 |
||
|
8
|
8
55011022100 Clamp d=6/8mm, blackFOR SIGMA 500 '98 |
55011022100 |
US $1.07 |
||
|
10
|
10
58314069152
Bracket F. Trigger Sc-Sm 02
625 SC SUPERMOTO |
58314069152 |
— | ||
|
11
|
11
50314069050 Magnet For Digitalspeedom.2000625 SC |
50314069050 |
US $21.44 |
||
|
12
|
12
0471009104 Circlip Din0471- 9X1 Inox625 SC |
0471009104 |
US $2.35 |
||
|
13
|
13
58214069050 Sensor magnet adventure 01625 SC SUPERMOTO |
58214069050 |
US $15.11 |
||
|
14
|
14
0799070000 Tab washer din6799-rs 7,0625 SC SUPERMOTO |
0799070000 |
US $0.56 |
||
|
15
|
15
58011021300 H.beam Indicator Light Blue'98625 SC SUPERMOTO |
58011021300 |
US $6.17 |
||
|
16
|
16
58011024300 Flasher Indicat.light Green'98625 SC SUPERMOTO |
58011024300 |
US $7.72 |
||
|
17
|
17
0014060203 Hh Collar Screw M 6X20 Ws=8625 SC SUPERMOTO |
0014060203 |
US $3.26 |
||
|
18
|
18
58314069155
Adapt.cable Speedom. M.a.e. 02
625 SC SUPERMOTO |
58314069155 |
— | ||
|
19
|
19
31008060000 Rubber Sleeve D=8Mm Open625 SC SUPERMOTO |
31008060000 |
US $1.09 |
||
|
20
|
20
0934080003 Hexagon Nut Din0934-M 8625 SC SUPERMOTO |
0934080003 |
US $3.26 |
||
|
21
|
21
58314060050
Collar Bushing 6,3X8X13X9,5
625 SC SUPERMOTO |
58314060050 |
— | ||
| replacement | |||||
|
21
|
21
45239060050 Collar bushing 6,3x8x13x9,5625 SC SUPERMOTO |
45239060050 |
US $5.12 |
||
|
25
|
25
58314069350
Bracket tripmaster switch 02
625 SC SUPERMOTO |
58314069350 |
— | ||
|
26
|
26
58314068000 Battery f. speedom. m.a.e. 02TYPE CR 2430 |
58314068000 |
US $9.64 |
||
|
27
|
27
58314069200
Tripmaster-switch digi-speedo.
TYPE CR 2430 |
58314069200 |
— | ||
|
28
|
28
0963040253
Flat Head Screw Din963 M4X25
TYPE CR 2430 |
0963040253 |
— | ||
