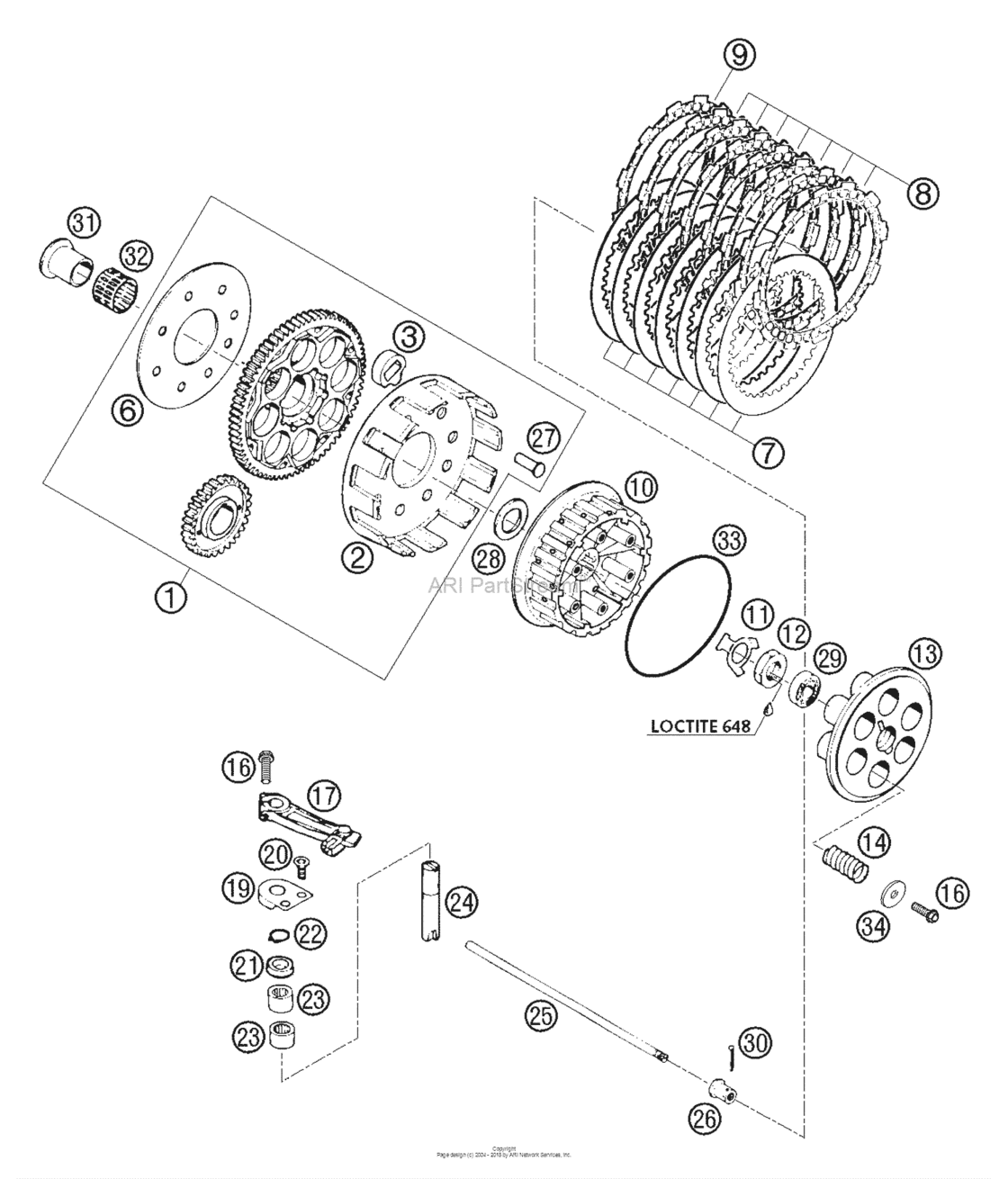

Clutch Diagram KTM 625 625 LC4 Super Competition
- Year
- 2002
- Sales region
- US/EU
- Engine Capacity
- 625
- Model
- 625 LC4 Super Competition
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
58332001081 Primary Gear 30TTYPE CR 2430 |
58332001081 |
US $413.34 |
||
| replacement | |||||
|
1
|
1
58032000030
Primary gear 30t
TYPE CR 2430 |
58032000030 |
— | ||
|
2
|
2
58332001000
Outer Clhub Loose D=160Mm
TYPE CR 2430 |
58332001000 |
— | ||
| replacement | |||||
|
2
|
2
58432001000 Outer clutch hub loose lc4 03TYPE CR 2430 |
58432001000 |
US $130.93 |
||
|
3
|
3
58332026000 Damping element '94TYPE CR 2430 |
58332026000 |
US $12.14 |
||
|
6
|
6
58332028000 Bracket 57 x 132 x 1,5 '94TYPE CR 2430 |
58332028000 |
US $7.48 |
||
|
7
|
7
58332112000 Steel disk 1,5 mm lc4'94TYPE CR 2430 |
58332112000 |
US $12.12 |
||
|
8
|
8
58332011300 Lining disk 2,7mm fcc 02TYPE CR 2430 |
58332011300 |
US $26.47 |
||
|
9
|
9
58332111300 Lining disk turn out fcc 02TYPE CR 2430 |
58332111300 |
US $31.03 |
||
|
10
|
10
58332002200
Inner Clutch Hub Lc4/lc4-E 04
TYPE CR 2430 |
58332002200 |
— | ||
| replacement | |||||
|
10
|
10
58332002300 Inner clutch hub lc4/lc4-e 04TYPE CR 2430 |
58332002300 |
US $105.45 |
||
|
11
|
11
58332018000
Lock washer '94
TYPE CR 2430 |
58332018000 |
— | ||
|
12
|
12
0936181505 Hexagon Nut Din0936-M18X1,5 RTYPE CR 2430 |
0936181505 |
US $7.60 |
||
|
13
|
13
58332003200 Pressure Cap Lc4/lc4-E 04TYPE CR 2430 |
58332003200 |
US $86.55 |
||
| replacement | |||||
|
13
|
13
58332003300 Pressure cap lc4/lc4-e 04TYPE CR 2430 |
58332003300 |
US $49.91 |
||
|
14
|
14
58332080000 Clutch spring 2,8 x 37TYPE CR 2430 |
58332080000 |
US $7.38 |
||
|
16
|
16
0015060203
Hh Collar Screw M 6X20 Ws=8
TYPE CR 2430 |
0015060203 |
— | ||
| replacement | |||||
|
16
|
16
0025060206 Hh collar screw m6x20 tx30TYPE CR 2430 |
0025060206 |
US $1.97 |
||
|
17
|
17
58332014044 Cl.release lever l=51,5mm '94TYPE CR 2430 |
58332014044 |
US $51.07 |
||
|
19
|
19
54532013000
Retaining plate for releasing
TYPE CR 2430 |
54532013000 |
— | ||
|
20
|
20
0991060123
Counterst.screw
TYPE CR 2430 |
0991060123 |
— | ||
|
21
|
21
54532093000
Nut ring nis 12x20x5,5
TYPE CR 2430 |
54532093000 |
— | ||
|
22
|
22
0471120010 Circlip din0471-12x1TYPE CR 2430 |
0471120010 |
US $1.12 |
||
|
23
|
23
50332095000 Needle bearing hk 1212TYPE CR 2430 |
50332095000 |
US $8.55 |
||
| replacement | |||||
|
23
|
23
46034027000 Needle bearing 12x18x12 2002TYPE CR 2430 |
46034027000 |
US $6.73 |
||
|
24
|
24
57532015000 Disengaging shaft 12 x 66 '93TYPE CR 2430 |
57532015000 |
US $41.65 |
||
|
25
|
25
58332017000 Push rod 224 mm lc4'94TYPE CR 2430 |
58332017000 |
US $21.62 |
||
|
26
|
26
58332032000 Pressure bolt lc4'94TYPE CR 2430 |
58332032000 |
US $19.91 |
||
|
27
|
27
58332007000 Rivet 6 x 23 x 11,2TYPE CR 2430 |
58332007000 |
US $3.03 |
||
|
28
|
28
57532013000 Supportwasher 22,2x35x3 harde.TYPE CR 2430 |
57532013000 |
US $22.51 |
||
|
29
|
29
0625060016 Groov.ball bear. 6001.2rsr c3TYPE CR 2430 |
0625060016 |
US $23.89 |
||
|
30
|
30
0094020163 Pin din0094-2,0x16TYPE CR 2430 |
0094020163 |
US $1.31 |
||
|
31
|
31
50332070000 Inner ring with collarTYPE CR 2430 |
50332070000 |
US $47.52 |
||
|
32
|
32
56532095000 Needle bearing k26x30x22zw.kseTYPE CR 2430 |
56532095000 |
US $21.51 |
||
|
33
|
33
0770116030 O-ring 116,00x3,00 hnbr 70TYPE CR 2430 |
0770116030 |
US $8.69 |
||
|
34
|
34
58432081000 Washer 6,5 x 20 x 2TYPE CR 2430 |
58432081000 |
US $2.14 |
||
