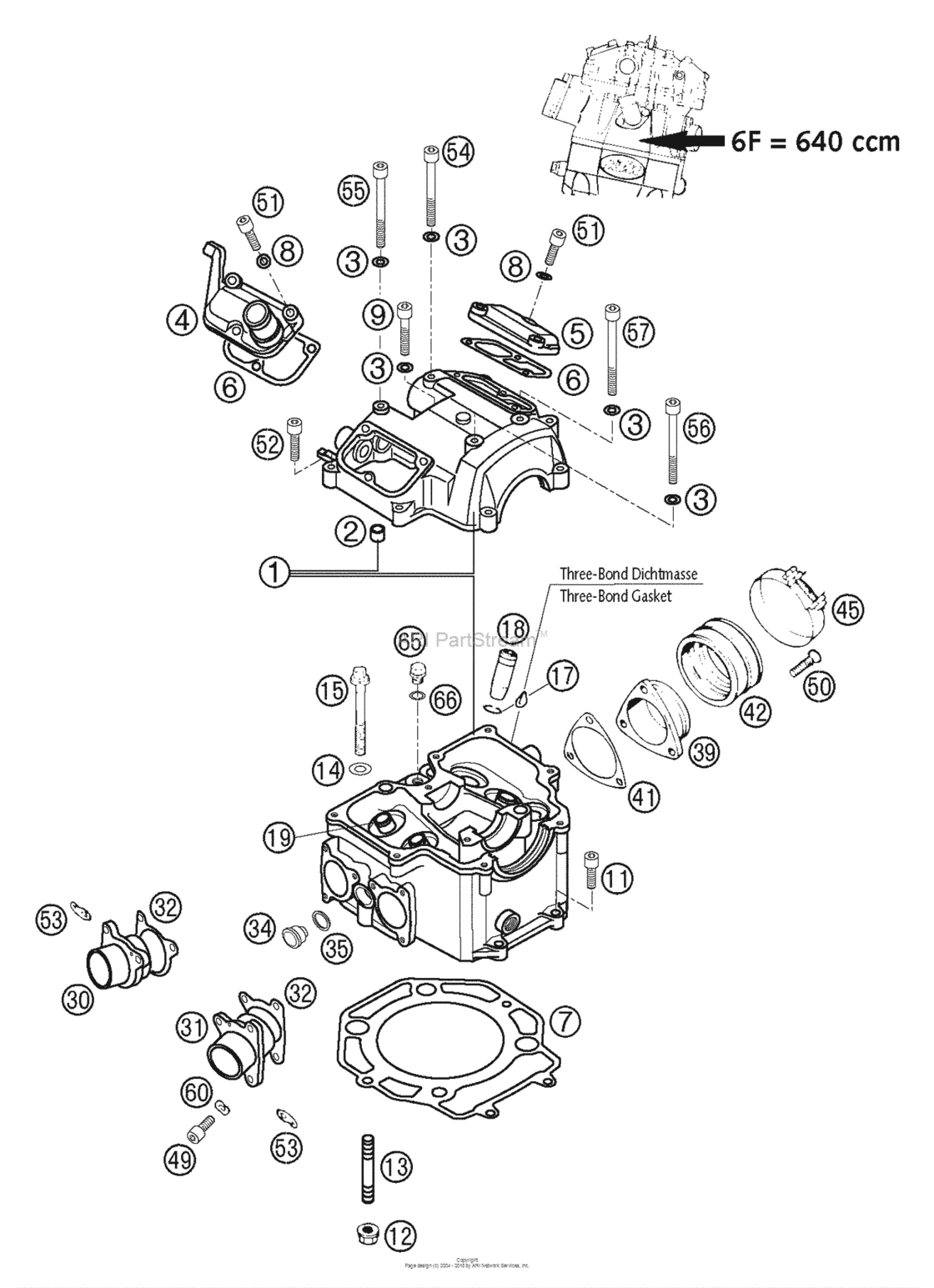

Cylinder Head Diagram KTM 625 625 LC4 Super Competition
- Year
- 2002
- Sales region
- US/EU
- Engine Capacity
- 625
- Model
- 625 LC4 Super Competition
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
58436020000
Cylinder head cpl. 640 lc4 '98
540/620 CC L=141,5MM |
58436020000 |
— | ||
|
2
|
2
49030090000 Dowel 9,8 x 7 x 10540/620 CC L=141,5MM |
49030090000 |
US $5.54 |
||
| replacement | |||||
|
2
|
2
49030090100 Dowel 9,8 X7X10540/620 CC L=141,5MM |
49030090100 |
US $2.60 |
||
|
3
|
3
58036065100 Cu-seal ring 6 x 10 x 2540/620 CC L=141,5MM |
58036065100 |
US $0.90 |
||
|
4
|
4
58036152600 Valve cover front '99540/620 CC L=141,5MM |
58036152600 |
US $33.58 |
||
|
5
|
5
58036052000 Valve Cover Rear540/620 CC L=141,5MM |
58036052000 |
US $43.76 |
||
| replacement | |||||
|
5
|
5
58036052200 Valve cover rear540/620 CC L=141,5MM |
58036052200 |
US $14.33 |
||
|
6
|
6
58036053000 Valve cover gasket540/620 CC L=141,5MM |
58036053000 |
US $4.71 |
||
|
7
|
7
58330036000 Cylinder head gasket 101,3 mm612/620/640 LC4 |
58330036000 |
US $65.03 |
||
|
8
|
8
0603061001 Cu-Seal Ring Din7603-6X10X1612/620/640 LC4 |
0603061001 |
US $2.64 |
||
|
9
|
9
0912060353 Ah Screw Din0912-M 6X35612/620/640 LC4 |
0912060353 |
US $2.09 |
||
|
11
|
11
0912060253 Ah Screw Din0912-M 6X25612/620/640 LC4 |
0912060253 |
US $1.79 |
||
|
12
|
12
49030028000 Collar nut m8612/620/640 LC4 |
49030028000 |
US $2.09 |
||
|
13
|
13
54330043000 Stud din0835-m 8x40600/612/620/640 LC4 |
54330043000 |
US $3.79 |
||
|
14
|
14
58036098000 Cu-seal ring 10 x 20 x 1600/612/620/640 LC4 |
58036098000 |
US $1.22 |
||
|
15
|
15
58036099100 Collar screw m10x80 ws=13 10.9600/612/620/640 LC4 |
58036099100 |
US $8.87 |
||
|
17
|
17
0993012000 Circlip Din7993-Rw12600/612/620/640 LC4 |
0993012000 |
US $2.11 |
||
|
18
|
18
58036026600 Valve Guide Intake600/612/620/640 LC4 |
58036026600 |
US $16.85 |
||
| replacement | |||||
|
18
|
18
58036026644 Valve guide intake cpl.600/612/620/640 LC4 |
58036026644 |
US $14.43 |
||
|
19
|
19
58036126600 Valve Guide Exhaus600/612/620/640 LC4 |
58036126600 |
US $16.46 |
||
| replacement | |||||
|
19
|
19
58036126644 Valve guide exhaust cpl.600/612/620/640 LC4 |
58036126644 |
US $14.43 |
||
|
30
|
30
58036040000 Exhaust flange r/s600/612/620/640 LC4 |
58036040000 |
US $37.88 |
||
|
31
|
31
58036140000 Exhaust flange l/s600/612/620/640 LC4 |
58036140000 |
US $37.03 |
||
|
32
|
32
58036041000 Exhaust flange gasket600/612/620/640 LC4 |
58036041000 |
US $4.71 |
||
|
34
|
34
58336024000 Plug sas bore600/612/620/640 LC4 |
58336024000 |
US $2.92 |
||
|
35
|
35
58436054000 Cu-seal ring 12 x 16 x 2600/612/620/640 LC4 |
58436054000 |
US $1.19 |
||
|
39
|
39
58136042040
Intake flange d=40mm
600/612/620/640 LC4 |
58136042040 |
— | ||
|
41
|
41
58136043000 Intake flange gasket600/612/620/640 LC4 |
58136043000 |
US $3.30 |
||
|
42
|
42
58536044000 Intake boot rallye 2001600/612/620/640 LC4 |
58536044000 |
US $42.67 |
||
|
45
|
45
59030061000 Clamp d=56mm b=9mm m4x25600/612/620/640 LC4 |
59030061000 |
US $4.45 |
||
|
49
|
49
0912060163 Ah Screw Din0912-M 6X16600/612/620/640 LC4 |
0912060163 |
US $1.29 |
||
|
50
|
50
0991060203 Flat Head Din7991-M 6X20600/612/620/640 LC4 |
0991060203 |
US $2.99 |
||
| replacement | |||||
|
50
|
50
0991060202 Flat head din7991-m 6x20600/612/620/640 LC4 |
0991060202 |
US $3.26 |
||
|
51
|
51
0912060203 Ah Screw Din0912-M 6X20600/612/620/640 LC4 |
0912060203 |
US $1.04 |
||
|
52
|
52
0912060253 Ah Screw Din0912-M 6X25600/612/620/640 LC4 |
0912060253 |
US $1.79 |
||
|
53
|
53
51005074000 Retaining plate600/612/620/640 LC4 |
51005074000 |
US $2.11 |
||
|
54
|
54
0912060501 Ah screw din0912-m 6x50 12.9600/612/620/640 LC4 |
0912060501 |
US $1.45 |
||
|
55
|
55
0912060551 Ah screw din0912-m 6x55 12.9600/612/620/640 LC4 |
0912060551 |
US $1.73 |
||
|
56
|
56
0912060653 Ah Screw Din0912-M 6X65600/612/620/640 LC4 |
0912060653 |
US $1.84 |
||
|
57
|
57
0912060703 Ah screw din0912-m 6x70600/612/620/640 LC4 |
0912060703 |
US $1.79 |
||
|
60
|
60
0137060003 Spring Washer Din0137-B 6600/612/620/640 LC4 |
0137060003 |
US $0.43 |
||
|
65
|
65
0910100003 Plug din0910-m 10x1600/612/620/640 LC4 |
0910100003 |
US $4.39 |
||
|
66
|
66
0603100141 Copper Gasket Din7603-10X14X1600/612/620/640 LC4 |
0603100141 |
US $2.24 |
||
