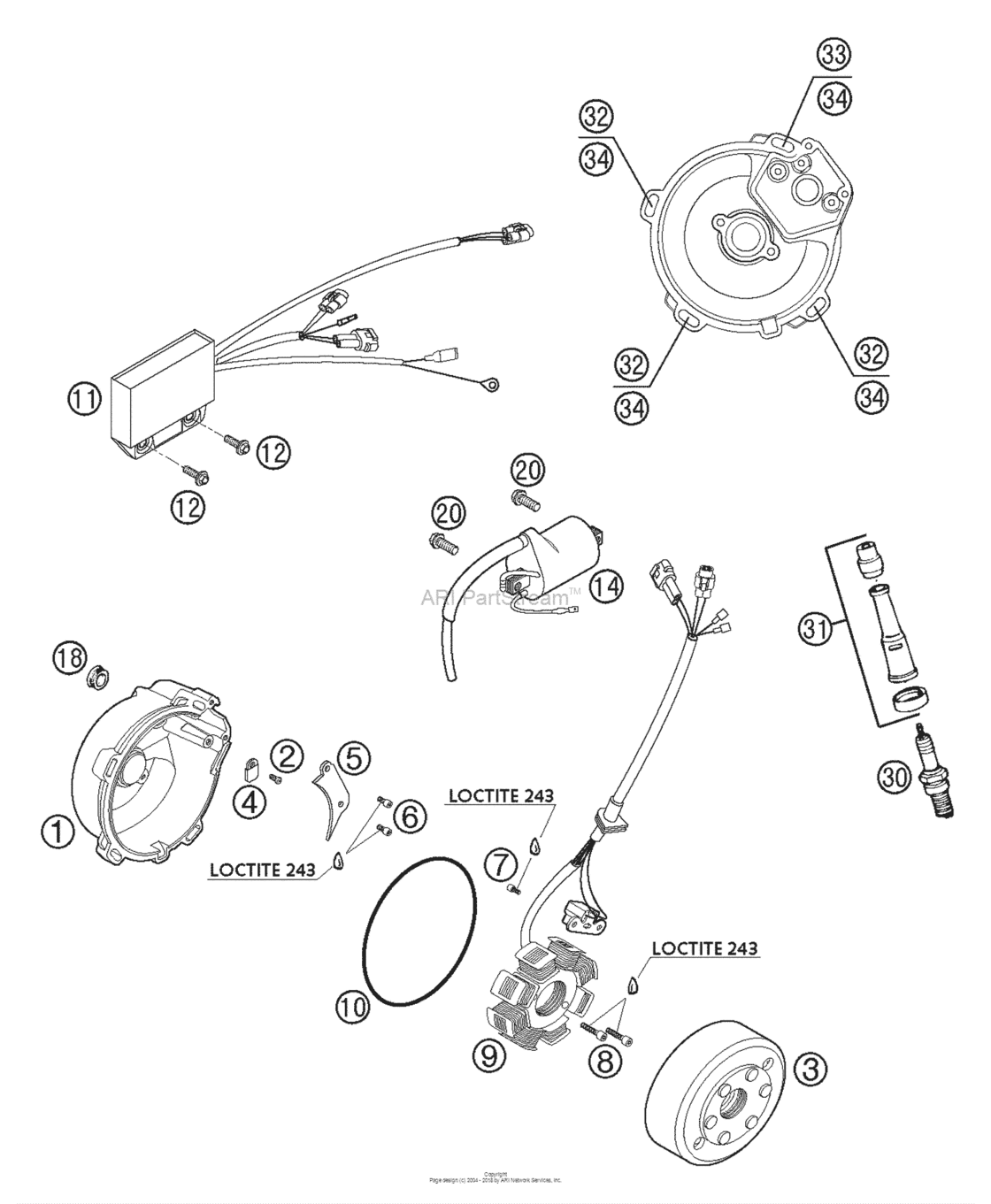

Ignition System Kokusan Diagram KTM 625 625 LC4 Super Competition
- Year
- 2002
- Sales region
- US/EU
- Engine Capacity
- 625
- Model
- 625 LC4 Super Competition
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
58330002000
Ignition Cover 4K3 Black '99
625 SC SUPERMOTO |
58330002000 |
— | ||
|
2
|
2
0500050083
Tapetite Screw
625 SC SUPERMOTO |
0500050083 |
— | ||
|
3
|
3
58339005000
Flywheel Kokusan 4K3 In.k8162In
625 SC SUPERMOTO |
58339005000 |
— | ||
|
4
|
4
50031003000
Retaining plate
625 SC SUPERMOTO |
50031003000 |
— | ||
|
5
|
5
58330002050
Closing Cover 4K3
625 SC SUPERMOTO |
58330002050 |
— | ||
|
6
|
6
0912050123 Ah screw din0912-m 5x12625 SC SUPERMOTO |
0912050123 |
US $0.85 |
||
|
7
|
7
0912050153
Ah Screw Din0912-M 5X15
625 SC SUPERMOTO |
0912050153 |
— | ||
|
8
|
8
0912060203 Ah Screw Din0912-M 6X20625 SC SUPERMOTO |
0912060203 |
US $1.04 |
||
|
9
|
9
58339004100
Stator kokusan 4k3 sc 2002
625 SC SUPERMOTO |
58339004100 |
— | ||
|
10
|
10
0770020490 O-ring 126,72x1,78 b70625 SC SUPERMOTO |
0770020490 |
US $3.33 |
||
|
11
|
11
58339031100
Digital Box Cdi Sc 2002
625 SC SUPERMOTO |
58339031100 |
— | ||
|
12
|
12
0014060203 Hh Collar Screw M 6X20 Ws=8625 SC SUPERMOTO |
0014060203 |
US $3.26 |
||
|
14
|
14
58439006000 Ignitioncoil ig3826 kokusan'96625 SC SUPERMOTO |
58439006000 |
US $83.22 |
||
|
18
|
18
58030002050
Plug M18X1,5
625 SC SUPERMOTO |
58030002050 |
— | ||
|
20
|
20
0015060163 Hh Collar Screw M 6X16 Ws=8625 SC SUPERMOTO |
0015060163 |
US $2.23 |
||
|
30
|
30
58439093009 Spark plug ngk dpr8ea-9625 SC SUPERMOTO |
58439093009 |
US $8.82 |
||
|
31
|
31
58031010000
Spark plug connect.sd 05fg ngk
625 SC SUPERMOTO |
58031010000 |
— | ||
|
32
|
32
0015060253
Hh Collar Screw M6X25 Tx30
625 SC SUPERMOTO |
0015060253 |
— | ||
| replacement | |||||
|
32
|
32
0025060256 Hh collar screw m6x25 tx30625 SC SUPERMOTO |
0025060256 |
US $2.45 |
||
|
33
|
33
0015060303
Hh Collar Screw M6X30 Tx30
625 SC SUPERMOTO |
0015060303 |
— | ||
| replacement | |||||
|
33
|
33
0025060306 Hh collar screw m6x30 tx30625 SC SUPERMOTO |
0025060306 |
US $3.96 |
||
|
34
|
34
0125060003 Washer Din0125-A 6,4625 SC SUPERMOTO |
0125060003 |
US $0.37 |
||
