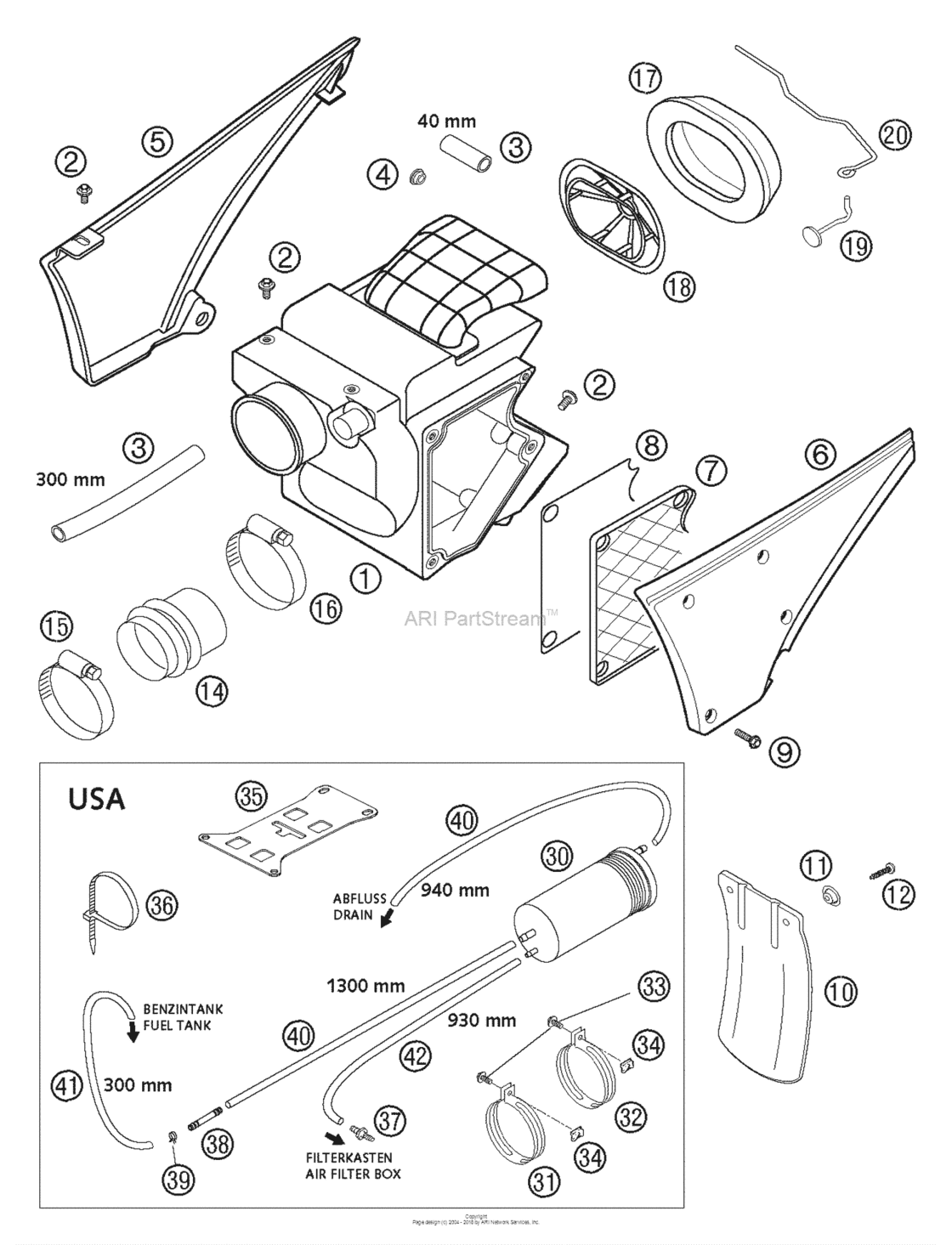

Air Filter Box Diagram KTM 625 625 SMC
- Year
- 2004
- Sales region
- US/EU
- Engine Capacity
- 625
- Model
- 625 SMC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
58406001200 Filter box e-start 03ONLY FOR SUPERMOTO, DUKE |
58406001200 |
US $225.11 |
||
|
2
|
2
0014060103
Hh Collar Screw M6X10 Tx30
ONLY FOR SUPERMOTO, DUKE |
0014060103 |
— | ||
| replacement | |||||
|
2
|
2
0024060106 Hh collar screw m6x10 tx30ONLY FOR SUPERMOTO, DUKE |
0024060106 |
US $4.35 |
||
|
3
|
3
57005020001 Hose 10x14 per meterONLY FOR SUPERMOTO, DUKE |
57005020001 |
US $13.86 |
||
|
4
|
4
36111021000 PlugONLY FOR SUPERMOTO, DUKE |
36111021000 |
US $0.61 |
||
|
5
|
5
58406004000
Filter box cover r/s lc4'98
ONLY FOR SUPERMOTO, DUKE |
58406004000 |
— | ||
|
6
|
6
58406003100
Filter box cover l/s lc4'98
ONLY FOR SUPERMOTO, DUKE |
58406003100 |
— | ||
|
7
|
7
58406003150 Carrier filter box gasket '98ONLY FOR SUPERMOTO, DUKE |
58406003150 |
US $6.49 |
||
|
8
|
8
58406090100 Gasket filter box cover lc4'98ONLY FOR SUPERMOTO, DUKE |
58406090100 |
US $11.29 |
||
|
9
|
9
0015050203
Hh Collar Screw M5X20 Tx30
ONLY FOR SUPERMOTO, DUKE |
0015050203 |
— | ||
| replacement | |||||
|
9
|
9
0025050206 Hh collar screw m5x20 tx30ONLY FOR SUPERMOTO, DUKE |
0025050206 |
US $1.33 |
||
|
10
|
10
54606010000 Splash Protect.for Filter BoxONLY FOR SUPERMOTO, DUKE |
54606010000 |
US $20.42 |
||
|
11
|
11
72210079000 BucketONLY FOR SUPERMOTO, DUKE |
72210079000 |
US $2.72 |
||
|
12
|
12
0017060203
Screw For Plastic K60X20 Sw6
ONLY FOR SUPERMOTO, DUKE |
0017060203 |
— | ||
| replacement | |||||
|
12
|
12
0017060205 Screw For Plastic K60X20 Sw6ONLY FOR SUPERMOTO, DUKE |
0017060205 |
US $2.24 |
||
|
14
|
14
58006026500 Air filter boot 540/620/640ONLY FOR SUPERMOTO, DUKE |
58006026500 |
US $19.26 |
||
|
15
|
15
51006027000 Hose Clamp 50-70MmONLY FOR SUPERMOTO, DUKE |
51006027000 |
US $5.66 |
||
|
16
|
16
55006028000 Hose clamp 60-80mmONLY FOR SUPERMOTO, DUKE |
55006028000 |
US $5.46 |
||
|
17
|
17
58406015100 Air filterONLY FOR SUPERMOTO, DUKE |
58406015100 |
US $34.27 |
||
|
18
|
18
58406016000 Filter carrier '97ONLY FOR SUPERMOTO, DUKE |
58406016000 |
US $14.89 |
||
|
19
|
19
58406017050
Hook f.holding hang.filter '97
ONLY FOR SUPERMOTO, DUKE |
58406017050 |
— | ||
|
20
|
20
58406017100
Holding hanger for filter '98
ONLY FOR SUPERMOTO, DUKE |
58406017100 |
— | ||
|
30
|
30
58715001000 Evap.canister Filter Type Ak47ONLY FOR SUPERMOTO, DUKE |
58715001000 |
US $83.76 |
||
|
31
|
31
58307083000
Clamp for filter knecht
ONLY FOR SUPERMOTO, DUKE |
58307083000 |
— | ||
|
32
|
32
58307083100 Clamp for evap canisterONLY FOR SUPERMOTO, DUKE |
58307083100 |
US $12.04 |
||
|
33
|
33
0014060153
Hh Collar Screw M6X15 Tx30
ONLY FOR SUPERMOTO, DUKE |
0014060153 |
— | ||
| replacement | |||||
|
33
|
33
0024060156 Hh collar screw m6x15 tx30ONLY FOR SUPERMOTO, DUKE |
0024060156 |
US $3.96 |
||
|
34
|
34
54603048100 Range Change Metal Nut M6ONLY FOR SUPERMOTO, DUKE |
54603048100 |
US $5.27 |
||
|
35
|
35
58415002000 Bracket evap.canister 04ONLY FOR SUPERMOTO, DUKE |
58415002000 |
US $20.54 |
||
|
36
|
36
44011076200 Cable tie 200/3,6mm blackONLY FOR SUPERMOTO, DUKE |
44011076200 |
US $0.39 |
||
|
37
|
37
52338061050 Hose connection for oiltankONLY FOR SUPERMOTO, DUKE |
52338061050 |
US $28.53 |
||
|
38
|
38
60015021000 Hose connector gs6 03ONLY FOR SUPERMOTO, DUKE |
60015021000 |
US $3.67 |
||
|
39
|
39
58007017000 Ydnac clamp 10101 (9mm)ONLY FOR SUPERMOTO, DUKE |
58007017000 |
US $1.84 |
||
|
40
|
40
60007116001 Hose 6X12 Per MeterONLY FOR SUPERMOTO, DUKE |
60007116001 |
US $13.89 |
||
|
41
|
41
31007107001 Pvc-Hose 6X9ONLY FOR SUPERMOTO, DUKE |
31007107001 |
US $5.85 |
||
| replacement | |||||
|
41
|
41
50335030001 Pvc-Hose 6X9ONLY FOR SUPERMOTO, DUKE |
50335030001 |
US $5.12 |
||
|
42
|
42
31007007001 Pvc-hose 5 x 8 mmONLY FOR SUPERMOTO, DUKE |
31007007001 |
US $4.98 |
||
