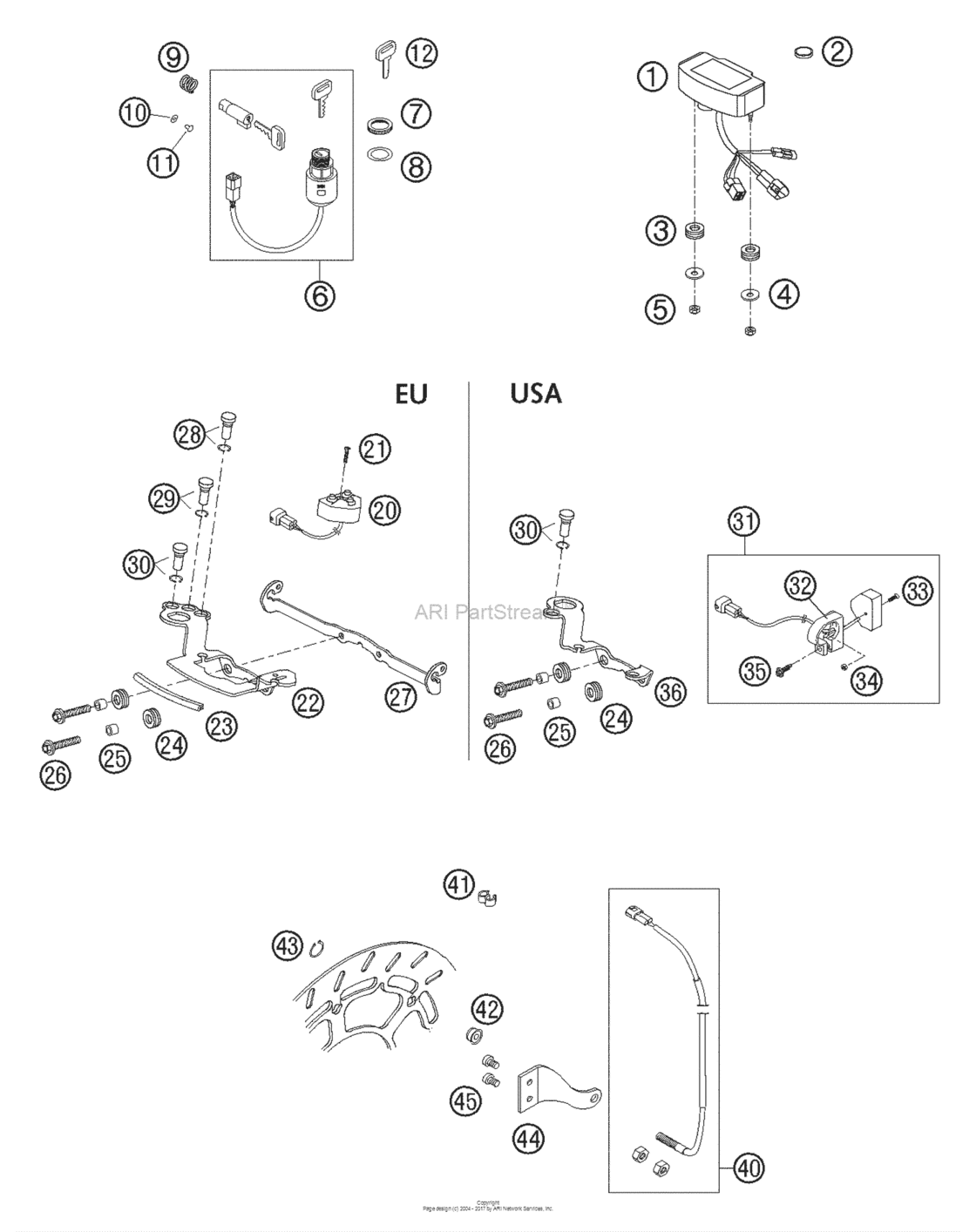

Speedometer M.a.e. Diagram KTM 625 625 SMC
- Year
- 2004
- Sales region
- US/EU
- Engine Capacity
- 625
- Model
- 625 SMC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
58314069400
Speedometer Km/h F. 17In. 02
ONLY FOR SUPERMOTO, DUKE |
58314069400 |
— | ||
|
1
|
1
58314069500
Speedometer mph f. 17" 02
ONLY FOR SUPERMOTO, DUKE |
58314069500 |
— | ||
|
2
|
2
58314068000 Battery f. speedom. m.a.e. 02ONLY FOR SUPERMOTO, DUKE |
58314068000 |
US $9.64 |
||
|
3
|
3
58214069051 Rubber Grommet 16X10,8X3 02ONLY FOR SUPERMOTO, DUKE |
58214069051 |
US $4.52 |
||
|
4
|
4
0021050003 Washer din9021-a 5,3ONLY FOR SUPERMOTO, DUKE |
0021050003 |
US $1.29 |
||
|
5
|
5
0985050003 Self Locking Nut Din0985-M 5ONLY FOR SUPERMOTO, DUKE |
0985050003 |
US $3.26 |
||
|
6
|
6
58411066400 Lock system 625 sxc 03ONLY FOR SUPERMOTO, DUKE |
58411066400 |
US $71.11 |
||
|
6
|
6
58411066544 Lock system 625 smc 04ONLY FOR SUPERMOTO, DUKE |
58411066544 |
US $92.80 |
||
| replacement | |||||
|
6
|
6
83011066000 Ignition lockONLY FOR SUPERMOTO, DUKE |
83011066000 |
US $88.69 |
||
|
7
|
7
50311066050 Ignition lock nut m24x1ONLY FOR SUPERMOTO, DUKE |
50311066050 |
US $7.19 |
||
|
8
|
8
58411066450 Washer f. ignition lock 03ONLY FOR SUPERMOTO, DUKE |
58411066450 |
US $6.22 |
||
|
9
|
9
12003007052
Spring l=16mm
ONLY FOR SUPERMOTO, DUKE |
12003007052 |
— | ||
|
10
|
10
0137030003 Spring washer din137 b3ONLY FOR SUPERMOTO, DUKE |
0137030003 |
US $0.12 |
||
|
11
|
11
45002040091 Grooved nail riveto af10ONLY FOR SUPERMOTO, DUKE |
45002040091 |
US $0.17 |
||
|
12
|
12
40011166200 Key blank black "t" gripONLY FOR SUPERMOTO, DUKE |
40011166200 |
US $9.59 |
||
|
20
|
20
58314069200
Tripmaster-switch digi-speedo.
ONLY FOR SUPERMOTO, DUKE |
58314069200 |
— | ||
|
21
|
21
0965040251
Flat head screw m4x25
ONLY FOR SUPERMOTO, DUKE |
0965040251 |
— | ||
|
22
|
22
58314060200 Speedomet.bracket 625 sxc 03ONLY FOR SUPERMOTO, DUKE |
58314060200 |
US $31.31 |
||
|
23
|
23
58312085100 Edge protector per meterONLY FOR SUPERMOTO, DUKE |
58312085100 |
US $22.98 |
||
|
24
|
24
31008060000 Rubber Sleeve D=8Mm OpenONLY FOR SUPERMOTO, DUKE |
31008060000 |
US $1.09 |
||
|
25
|
25
58011039000 Spacer bushing 6,5 x 8 x 7ONLY FOR SUPERMOTO, DUKE |
58011039000 |
US $1.79 |
||
|
26
|
26
0014060253 Hh collar screw m 6x25 ws=8ONLY FOR SUPERMOTO, DUKE |
0014060253 |
US $1.19 |
||
|
27
|
27
58314033100
Flasher Bracket 2002
ONLY FOR SUPERMOTO, DUKE |
58314033100 |
— | ||
|
28
|
28
58011024300 Flasher Indicat.light Green'98ONLY FOR SUPERMOTO, DUKE |
58011024300 |
US $7.72 |
||
|
29
|
29
58011021300 H.beam Indicator Light Blue'98ONLY FOR SUPERMOTO, DUKE |
58011021300 |
US $6.17 |
||
|
30
|
30
58011023300 Neutral indic. light green '98ONLY FOR SUPERMOTO, DUKE |
58011023300 |
US $5.68 |
||
|
31
|
31
50314068000 Tripmaster-switch w. clamp 03ONLY FOR SUPERMOTO, DUKE |
50314068000 |
US $126.96 |
||
|
32
|
32
50314068050 Clamp for tripmaster-switch 03ONLY FOR SUPERMOTO, DUKE |
50314068050 |
US $2.13 |
||
|
33
|
33
0965040125 Flat head screw din0966-m 4x20ONLY FOR SUPERMOTO, DUKE |
0965040125 |
US $0.27 |
||
|
34
|
34
0934040003 Hexagon nut din0934-m 4ONLY FOR SUPERMOTO, DUKE |
0934040003 |
US $0.54 |
||
|
35
|
35
0017060203
Screw For Plastic K60X20 Sw6
ONLY FOR SUPERMOTO, DUKE |
0017060203 |
— | ||
| replacement | |||||
|
35
|
35
0017060205 Screw For Plastic K60X20 Sw6ONLY FOR SUPERMOTO, DUKE |
0017060205 |
US $2.24 |
||
|
36
|
36
58314060300 Speedom.bracket 625 sxc usa 03ONLY FOR SUPERMOTO, DUKE |
58314060300 |
US $22.53 |
||
|
40
|
40
58314069251 Speedom. cable (without nuts)ONLY FOR SUPERMOTO, DUKE |
58314069251 |
US $79.20 |
||
|
41
|
41
55011022100 Clamp d=6/8mm, blackONLY FOR SUPERMOTO, DUKE |
55011022100 |
US $1.07 |
||
|
42
|
42
58214069050 Sensor magnet adventure 01ONLY FOR SUPERMOTO, DUKE |
58214069050 |
US $15.11 |
||
|
43
|
43
0471009104 Circlip Din0471- 9X1 InoxONLY FOR SUPERMOTO, DUKE |
0471009104 |
US $2.35 |
||
|
44
|
44
58314052000
Bracket f. sensor sm 03
ONLY FOR SUPERMOTO, DUKE |
58314052000 |
— | ||
|
45
|
45
0084040063 Cyl.head screw din0084-m 4x 6aONLY FOR SUPERMOTO, DUKE |
0084040063 |
US $1.62 |
||
