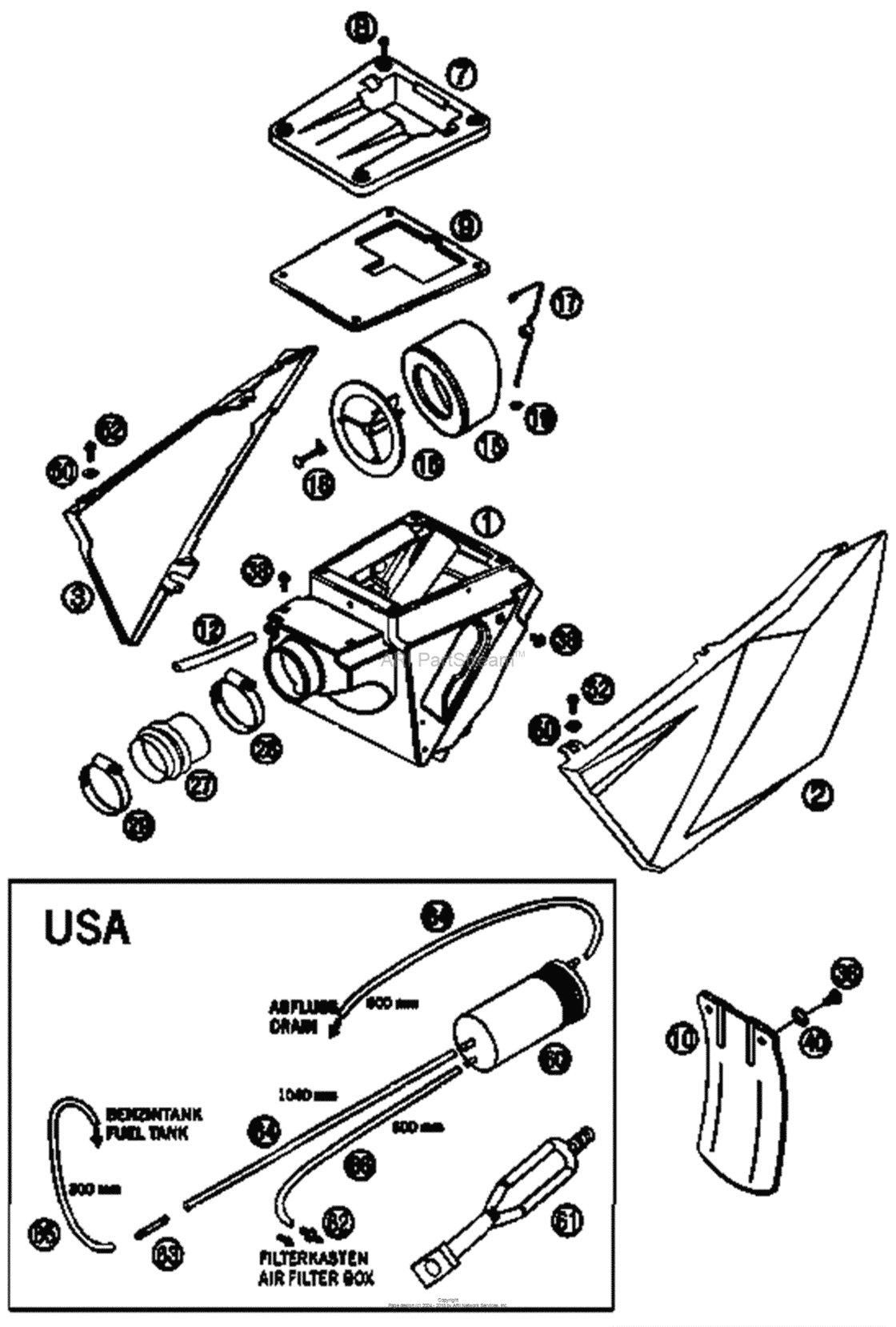

Air Filter Box Diagram KTM 625 625 SMC
- Year
- 2006
- Sales region
- US/EU
- Engine Capacity
- 625
- Model
- 625 SMC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
58306001500 Filter box 05FOR CENTER STAND '99 |
58306001500 |
US $187.17 |
||
|
2
|
2
58606003000
Filter box cover l/s 05
FOR CENTER STAND '99 |
58606003000 |
— | ||
|
3
|
3
58606004100
Filter box cover r/s usa 05
FOR CENTER STAND '99 |
58606004100 |
— | ||
|
7
|
7
58306102000
Filter box cover closed
FOR CENTER STAND '99 |
58306102000 |
— | ||
|
8
|
8
0015050123
Hh collar screw m 5x12 ws=8
FOR CENTER STAND '99 |
0015050123 |
— | ||
| replacement | |||||
|
8
|
8
0025050126 Hh collar screw m5x12 tx30FOR CENTER STAND '99 |
0025050126 |
US $3.38 |
||
|
9
|
9
58406089000 Gasket for filter box cover scFOR CENTER STAND '99 |
58406089000 |
US $10 |
||
|
10
|
10
54606010000 Splash Protect.for Filter BoxFOR CENTER STAND '99 |
54606010000 |
US $20.42 |
||
|
12
|
12
57005020001 Hose 10x14 per meterAs Required |
57005020001 |
US $13.86 |
||
|
15
|
15
56506015100 AirfilterAs Required |
56506015100 |
US $37.84 |
||
|
16
|
16
58606016000
Filter carrier 05
As Required |
58606016000 |
— | ||
|
17
|
17
58706017000
Holding hanger filter duke '99
'99 |
58706017000 |
— | ||
|
18
|
18
58306017050 Hook for filter bracket'99 |
58306017050 |
US $14.50 |
||
|
19
|
19
54606019004
Clamping disk ks4
'99 |
54606019004 |
— | ||
|
27
|
27
58006026500 Air filter boot 540/620/640'99 |
58006026500 |
US $19.26 |
||
|
28
|
28
55006028000 Hose clamp 60-80mm'99 |
55006028000 |
US $5.46 |
||
|
29
|
29
51006027000 Hose Clamp 50-70Mm'99 |
51006027000 |
US $5.66 |
||
|
38
|
38
0014060103
Hh Collar Screw M6X10 Tx30
'99 |
0014060103 |
— | ||
| replacement | |||||
|
38
|
38
0024060106 Hh collar screw m6x10 tx30'99 |
0024060106 |
US $4.35 |
||
|
40
|
40
72210079000 Bucket'99 |
72210079000 |
US $2.72 |
||
|
50
|
50
50308052000 Bush 6X11X16X5 Mm'99 |
50308052000 |
US $3.49 |
||
| replacement | |||||
|
50
|
50
79608052000 Bush 6X11X16X5 Mm'99 |
79608052000 |
US $1.31 |
||
|
52
|
52
0015060163 Hh Collar Screw M 6X16 Ws=8'99 |
0015060163 |
US $2.23 |
||
|
60
|
60
58715001000 Evap.canister Filter Type Ak47'99 |
58715001000 |
US $83.76 |
||
|
61
|
61
50303018000 Rubber l=145mm'99 |
50303018000 |
US $6.14 |
||
|
62
|
62
52338061050 Hose connection for oiltank'99 |
52338061050 |
US $28.53 |
||
|
63
|
63
60015021000 Hose connector gs6 03'99 |
60015021000 |
US $3.67 |
||
|
64
|
64
60007116001 Hose 6X12 Per MeterAs Required |
60007116001 |
US $13.89 |
||
|
65
|
65
31007107001 Pvc-Hose 6X9As Required |
31007107001 |
US $5.85 |
||
| replacement | |||||
|
65
|
65
50335030001 Pvc-Hose 6X9As Required |
50335030001 |
US $5.12 |
||
|
66
|
66
31007007001 Pvc-hose 5 x 8 mmAs Required |
31007007001 |
US $4.98 |
||
