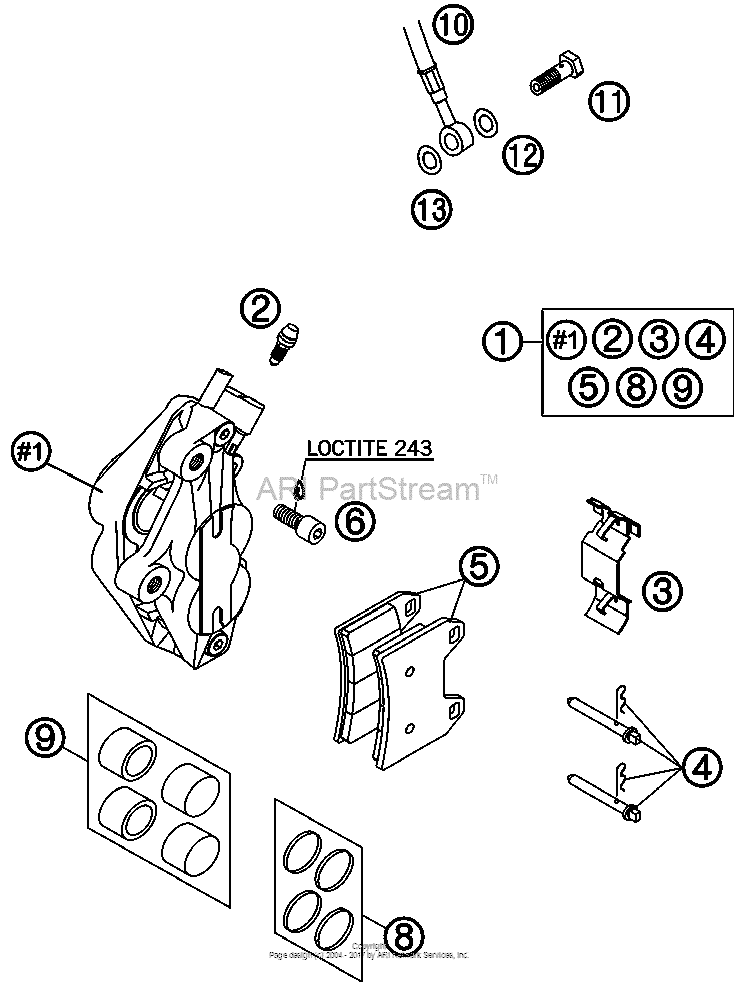

Brake Caliper Front Diagram KTM 625 625 SMC
- Year
- 2006
- Sales region
- US/EU
- Engine Capacity
- 625
- Model
- 625 SMC
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
58713015000 Brake Caliper Fr. Gold Duke'99'99 |
58713015000 |
US $253.16 |
||
|
2
|
2
58713020000 Bleeder screw m10x1 '99'99 |
58713020000 |
US $6.73 |
||
|
3
|
3
58713018000 Retaining spring brembo '99'99 |
58713018000 |
US $14.64 |
||
|
4
|
4
58713017000 Bolt whith clip '99'99 |
58713017000 |
US $16.10 |
||
|
5
|
5
58713030000 Brake Pad Set Fr.ferit Id405Ff'99 |
58713030000 |
US $75.77 |
||
|
6
|
6
0912100309 Ah screw din912 m10x30 10.9'99 |
0912100309 |
US $5.63 |
||
|
8
|
8
58713021000 Repair kit seal.-rings duke 02'99 |
58713021000 |
US $19.36 |
||
|
9
|
9
58713019000 Brake piston duke 20022002 |
58713019000 |
US $60.62 |
||
|
10
|
10
58413011500
Brake hose front sm 2004
2004 |
58413011500 |
— | ||
|
11
|
11
50213025000 Hollow Screw M10X1X192004 |
50213025000 |
US $5.39 |
||
|
12
|
12
42013226000 Cu-Seal Ring Din7603-10X16X12004 |
42013226000 |
US $4.10 |
||
|
13
|
13
42013026000 Cu-seal ring din7603-10x16x1,52004 |
42013026000 |
US $2.24 |
