Parts list

Difficulties in parts search?

	Description	OEM Part #	Price
1	1 48600020S1 Screw Cap M51X1,5 Cpl '99	48600020S1	—
2	2 46810340 O-ring nbr 45x2 '99	46810340	US $4.01
3	3 48600018 Knob reboung adjuster '99	48600018	US $6
4	4 48600020S1 Screw Cap M51X1,5 Cpl '99	48600020S1	—
5	5 40540603 Steel ball d=3mm '99	40540603	US $1.22
6	6 48600028 Spring d=2,9 l=7,9 '99	48600028	US $3.03
7	7 48600044 O-ring nbr 6x1,5 '99	48600044	US $1.14
8	8 48600058 Vent screw m4x6 '99	48600058	US $2.09
9	9 48600009 O-ring nbr 3,7x1,6 '99	48600009	US $0.90
10	10 48600043 O-ring nbr 12x1,5 '99	48600043	US $2.24
11	11 48600019 Holder f.adjustment tube d=4mm '99	48600019	US $3.69
12	12 48600421E Outer t. l=577 d=54/60 2l antr '99	48600421E	US $435.88
13	13 48600016 Guiding ring d=58mm '99	48600016	US $5.34
15	15 48600429 Du-bush d48xd52x12ddl02 '99	48600429	US $36.48
	replacement
15	15 48601009 Guiding Bush 48X52X12 R11 '99	48601009	US $13.23
16	16 48600013 Support ring 50 x 57,6 x 1,5 '99	48600013	US $11.37
17	17 48600399 Oil seal ring 48x57,8x9,5 '99	48600399	—
18	18 48600070 Lock washer sb58 '99	48600070	US $2.35
19	19 48600400 Dust Seal '99	48600400	—
	replacement
19	19 48600816 Dust seal '99	48600816	US $27.03
22	22 48600428 Guiding Bush 47X49X20 R11 '99	48600428	US $36.48
	replacement
22	22 48601008 Guiding Bush 47X49X20 R11 '99	48601008	US $13.23
23	23 48600417 Inner tube d=48 l=595 2005 2005	48600417	US $314.52
24	24 48600380S1 Hydr.stop L=200Mm D=31,9 Cpl 2005	48600380S1	US $71.57
30	30 48600094 Adjustment tube l=492mm 2005	48600094	US $16.95
31	31 48600412 Piston Rod 14X11X1 L=526 2005	48600412	US $133.37
33	33 48600189 Needle rebound 2003 2003	48600189	US $36.04
34	34 48600046 O-ring nbr 3x1,5 2003	48600046	US $2.47
35	35 48600033 Spring rebound needle c=4n/mm 2003	48600033	US $15.81
36	36 48600113 Washer 32x42x2,5 2003	48600113	US $11.58
37	37 48600036 Spacer 42x26,5x2,5 2003	48600036	US $6.48
37	37 48600037 Spacer 42x26,5x5 2003	48600037	US $6.41
37	37 48600038 Spacer 42x26,5x10 2003	48600038	US $8.04
37	37 48600053 Spacer 42X26,5X1,5 2003	48600053	US $7.09
38	38 91410013S Spring 4,0n/mm set d=5,0mm As Required	91410013S	US $223.13
38	38 91410014S Spring 4,2n/mm set d=5,0mm As Required	91410014S	US $223.13
38	38 91410015S Spring 4,4n/mm set d=5,1mm As Required	91410015S	US $223.13
38	38 91410016S Spring 4,6n/mm set As Required	91410016S	US $223.13
38	38 91410017S Spring 4,8n/mm set As Required	91410017S	US $334.41
39	39 48600021 Interm. ring 26,2 x 43 x 3 As Required	48600021	US $16.59
42	42 48600383S Screw sleeve m29,3x1 l=90 cpl. As Required	48600383S	US $104.65
43	43 48600239 O-ring nbr 8x1,25 As Required	48600239	US $2.24
44	44 48600403 Rebound spring d=15mm l=34,5mm As Required	48600403	US $46.94
45	45 48600203 Tab rebound d=3 03 As Required	48600203	US $36.81
47	47 35480377 Spring check valve d=0,5 As Required	35480377	US $2.53
49	49 43570120 Shim 8x18x0,10 As Required	43570120	US $9.93
49	49 48600062 Check valve 8x24x0,1 As Required	48600062	US $3.26
49	49 48600215 Check valve 8x20x0,1 As Required	48600215	US $5.15
49	49 48600216 Check valve 8x22x0,1 As Required	48600216	US $5.15
50	50 40540401 Shim 6x14x0,1 As Required	40540401	US $3.49
50	50 40540402 Shim 6x16x0,1 As Required	40540402	US $2.72
50	50 40540403 Shim 6x18x0,1 As Required	40540403	US $2.87
50	50 40540414 Shim 6x16x0,25 As Required	40540414	US $3.72
50	50 40540415 Shim 6x18x0,25 As Required	40540415	US $3.69
50	50 40540447 Shim 6x10x0,3 As Required	40540447	US $2.23
50	50 48600063 Shim 6x24x0,1 As Required	48600063	US $2.77
50	50 48600064 Shim 6x22x0,1 As Required	48600064	US $4.17
50	50 48600065 Shim 6x20x0,1 As Required	48600065	US $3.67
50	50 48600069 Shim 6x20x0,15 As Required	48600069	US $3.54
50	50 48600116 Shim 6X24X0,1 Delta As Required	48600116	US $5.95
50	50 48600212 Pressure-ring 20x16,25x0,20 As Required	48600212	US $34.22
51	51 48600060 Piston ring 5x1x84 As Required	48600060	US $6
52	52 48600042 Piston rebound d=27,7 As Required	48600042	US $48.96
55	55 40540486 Nut m6x0,5 rebound As Required	40540486	US $5.20
58	58 48600140 Tube 29,3x1x385 alu As Required	48600140	US $94.13
59	59 48600048 O-ring nbr 46 x 2 As Required	48600048	US $1.94
60	60 48600257S Axle clamp l/s sm cpl. 04 As Required	48600257S	US $607.26
61	61 48600238S Axle clamp r/s cpl. usd48 04 As Required	48600238S	US $339.39
62	62 0015080253 H H Collar Screw As Required	0015080253	—
	replacement
62	62 0025080256 Hh Collar Screw M8X25 Tx40 As Required	0025080256	US $4.10
63	63 48600163 Check valve nut m6x0,5 d=2 As Required	48600163	US $13.80
64	64 48600202 Spring check valve d=0,7 As Required	48600202	US $2.28
69	69 48600152S1 Tap Compression Cpl As Required	48600152S1	US $100.27
	replacement
69	69 48600586E Tap Compression Cpl As Required	48600586E	US $96.46
70	70 48600061 Check valve 8x24x0,4 As Required	48600061	US $4.32
71	71 48600047 Piston compression d=27,9 As Required	48600047	US $49.96
72	72 46811499 O-ring nbr 21x2 As Required	46811499	US $1.48
73	73 35480320 O-ring nbr 24x2 As Required	35480320	US $2.70
74	74 48600152 Tap Compression Cpl As Required	48600152	—
	replacement
74	74 48600586E Tap Compression Cpl As Required	48600586E	US $96.46
75	75 48600190 Needle compression 2003 2003	48600190	US $13.45
76	76 48600049 O-ring nbr 8x2 2003	48600049	US $3.67
79	79 48600051 Lock washer rb12 2003	48600051	US $1.39
80	80 48600034 Compression adj. screw 2003	48600034	—
81	81 48600004 Copper washer 29,5x33,5x1 2003	48600004	US $1.65
82	82 48600141 Rubber cap d=35mm 2003	48600141	US $3.42
83	83 48600401S1 Fork Oil Sae4 5L 2005	48600401S1	US $273.85
	replacement
83	83 48601166S1 Fork Oil Sae4 5L 2005	48601166S1	US $218.08
98	98 T511 Silicone grease f. dust stri 2005	T511	US $132.91
99	99 R14013 Repair-kit exc front fork06/07 2005	R14013	US $123.25

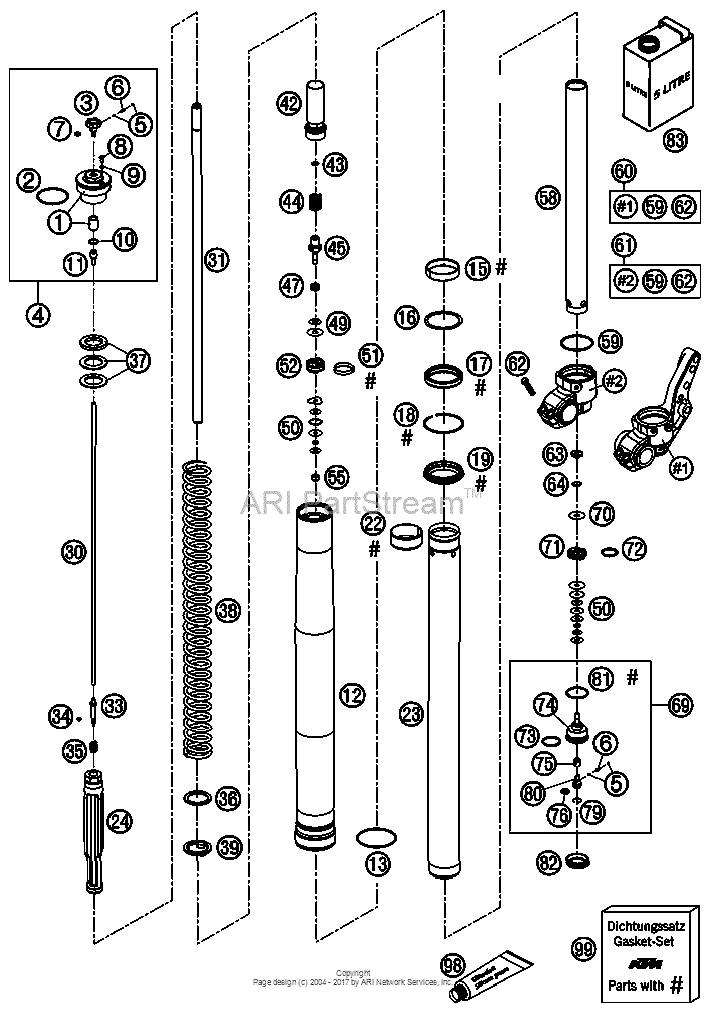

Fork Legs Diagram KTM 625 625 SMC US/EU 18103095-940539

Fork Legs Diagram KTM 625 625 SMC US/EU 18103095-940539
