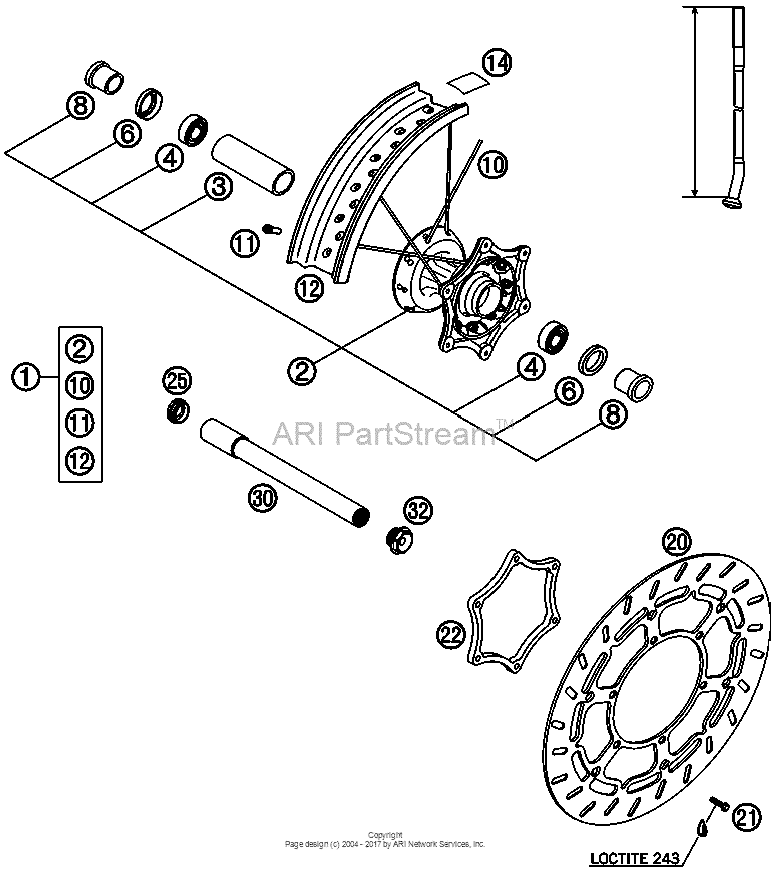

Front Wheel Diagram KTM 625 625 SMC
- Year
- 2006
- Sales region
- US/EU
- Engine Capacity
- 625
- Model
- 625 SMC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
58409001644
Front Wheel 3,5X17 26Mm
2001 |
58409001644 |
— | ||
|
2
|
2
5480901004491 Front Hub Cpl. Sx Silver 032001 |
5480901004491 |
US $327.57 |
||
|
3
|
3
54809011000 Bea.spacertube 35x2 l=79,4 032001 |
54809011000 |
US $23.66 |
||
|
4
|
4
0625069068 Gr.ball Bear.6906 Ddu2Cg23S6Nm2001 |
0625069068 |
US $44.68 |
||
|
6
|
6
0760354771 Shaft seal ring 35x47x7 tc2001 |
0760354771 |
US $11.19 |
||
|
8
|
8
54809012000
Spacer bushing f. fr. wheel 03
2001 |
54809012000 |
— | ||
| replacement | |||||
|
8
|
8
78009012000 Spacer bushing f. fr. wheel 082001 |
78009012000 |
US $27.10 |
||
|
10
|
10
50309071175 Spoke m4,5x175-15g 17" dde2001 |
50309071175 |
US $4.34 |
||
|
11
|
11
50309072000
Spoke Nipple Quadrax M4,5
2001 |
50309072000 |
— | ||
| replacement | |||||
|
11
|
11
81210072000 Spoke nipple quadrax m4,52001 |
81210072000 |
US $2.79 |
||
|
12
|
12
58409070000
Front Rim 3.5 X 17 (Silver)
2001 |
58409070000 |
— | ||
|
14
|
14
58309073000 Rim band 17"2001 |
58309073000 |
US $12.94 |
||
|
20
|
20
58209060000 Brake disk front d=320mm 20022002 |
58209060000 |
US $260.88 |
||
|
21
|
21
59009062023 Special screw m6x23 ws=8 10.92002 |
59009062023 |
US $1.19 |
||
| replacement | |||||
|
21
|
21
59009062026 Special Screw M6X26 Sw=8 10.92002 |
59009062026 |
US $1.04 |
||
|
22
|
22
58409161000 Brake disc support sm 032002 |
58409161000 |
US $106.32 |
||
|
25
|
25
54809081050 Plug bushing ws=27 032002 |
54809081050 |
US $8.50 |
||
|
30
|
30
58409081000 Wheel spindel fro.d=26mm sm 032002 |
58409081000 |
US $57.12 |
||
|
32
|
32
54809082000 Spindle screw m24x1,5 ws=27 032002 |
54809082000 |
US $10.88 |
||
