Parts list

Difficulties in parts search?

	Description	OEM Part #	Price
1	1 46811558S Shock abs. bottom-fork l75b '99	46811558S	US $204.48
2	2 46811560S2 Piston rod d=14 ba m14x1 '99	46811560S2	US $217.62
3	3 46811545S Needle cpl. d=4 ba, l=183 '99	46811545S	US $94.59
4	4 46811222 O-ring 36x0,5 '99	46811222	US $9.55
5	5 46811263 Washer '99	46811263	US $13.97
6	6 46811261 Pin 4x35 '99	46811261	US $4.79
7	7 46811262 Adj. knob d=41 '99	46811262	US $27.27
8	8 46811205 Adaptor-bush m10x1,50, d=15 '99	46811205	US $12.05
10	10 46811221 O-ring 35x3 '99	46811221	US $15.49
11	11 46811050 Seal kgw '99	46811050	US $7.58
12	12 46811268 Circlip 22x1,2 '99	46811268	US $1.94
13	13 46811259 Needle seat 5x17,25 '99	46811259	US $39.41
16	16 46811078 Adaptor Bush Cpl. Kgw 10X24 '99	46811078	—
	replacement
16	16 46811078S Adaptor bush cpl. kgw 10x24 '99	46811078S	US $75.79
17	17 46811027 Bushing kgw 1525 '99	46811027	US $63.75
18	18 46811499 O-ring nbr 21x2 '99	46811499	US $1.48
19	19 46811500 O-ring nbr 32x1,5 '99	46811500	US $3.04
22	22 46810365 Bump rubber wp55 white '99	46810365	US $73.47
23	23 46811045 Screw cap m47,4, h=22,5 '99	46811045	US $64.50
24	24 46811044 Dust seal 1424 '99	46811044	US $24.99
25	25 46810325 O-ring 35x5 '99	46810325	US $4.78
26	26 46811540S1 Adapter cpl. d=46, h=23 ba '99	46811540S1	—
	replacement
26	26 46811053S2 ADAPTER 46X23 CPL. '99	46811053S2	US $281.08
27	27 46811002 Spacer 35x14x2 '99	46811002	US $11.08
28	28 46811042 O-Ring 40,00X2,00 Wp '99	46811042	US $2.89
30	30 46811481 Shock absorb. top h-35/79 84 '99	46811481	US $347.65
31	31 46810016 O-ring nbr 48x2 '99	46810016	US $4.66
32	32 46810094 Tube l=185 '99	46810094	US $131.27
33	33 46810346 Threaded bush l=60 black '99	46810346	US $74.24
36	36 46811561 Bushing ring d=55x19 '99	46811561	—
37	37 46811512 O-ring nbr 32x8 '99	46811512	US $13.04
38	38 46811511 Support ring d=55x7,5 '99	46811511	US $32.11
41	41 46810109 Counternut '99	46810109	US $40.10
42	42 46810108 Adjusting nut '99	46810108	—
43	43 46810010 Circlip 49x1,5 '99	46810010	US $1.96
45	45 46810893 O-ring nbr 5,28x1,78 '99	46810893	US $1.12
46	46 36120151 Screw plug m5x6 '99	36120151	US $7.31
47	47 91010110 Spring 70-260 (59), d=12 '99	91010110	US $223.31
47	47 91010111 Spring 75-260 (59) As Required	91010111	US $223.31
47	47 91010154 Spring wp 80-260 As Required	91010154	US $217.87
48	48 46810063 Spring retainer d=58,h=13,l=15 As Required	46810063	US $45.05
49	49 46811208 Rubber cap "do not open" As Required	46811208	US $5.68
50	50 50180466S1 Shock Absorber Fluid 5 Lt As Required	50180466S1	—
	replacement
50	50 50180751S1 Shock Absorber Fluid 5 Lt As Required	50180751S1	—
60	60 46811216 Rebound bush plane h=6,5 As Required	46811216	US $19.33
61	61 46811005 Spacer 35x14x10 As Required	46811005	US $20.60
62	62 46810491 Shim 12x26x0,20 As Required	46810491	US $6.04
62	62 46810492 Shim 12x28x0,20 As Required	46810492	US $6.04
62	62 46810493 Shim 12x30x0,20 As Required	46810493	US $6.04
62	62 46810498 Shim 12x40x0,20 As Required	46810498	US $8.14
62	62 46810507 Shim 12x40x0,25 As Required	46810507	US $8.06
62	62 46810521 Shim 12x32x0,15 As Required	46810521	US $6.26
62	62 46810522 Shim 12x34x0,15 As Required	46810522	US $8.14
62	62 46810523 Shim 12x36x0,15 As Required	46810523	US $8.06
62	62 46810524 Shim 12x38x0,15 As Required	46810524	US $8.14
62	62 46810636 Backplate 12x16x0,30 As Required	46810636	US $3.03
68	68 46810490 Shim 12x24x0,20 As Required	46810490	US $6.04
68	68 46810492 Shim 12x28x0,20 As Required	46810492	US $6.04
68	68 46810519 Shim 12x28x0,15 As Required	46810519	US $6.26
68	68 46810521 Shim 12x32x0,15 As Required	46810521	US $6.26
68	68 46810638 Backplate 12x18x0,30 As Required	46810638	US $3.26
68	68 46811636 Pressure ring 32x28,25x0,30 As Required	46811636	US $21.66
75	75 46811218 Piston 6+6xd=7 ba As Required	46811218	US $111.28
76	76 46810035 O-ring viton 37,82x1,78 As Required	46810035	US $4.83
77	77 46811206 Piston ring 8x46 As Required	46811206	US $36.35
79	79 46180052 Bleed screw m6x0,5 As Required	46180052	US $12.53
80	80 46811258 Ring 12x24x2,5 As Required	46811258	US $23.31
81	81 40540401 Shim 6x14x0,1 As Required	40540401	US $3.49
81	81 40540402 Shim 6x16x0,1 As Required	40540402	US $2.72
81	81 40540403 Shim 6x18x0,1 As Required	40540403	US $2.87
81	81 40540448 Backplate 6x8,5x0,30 As Required	40540448	US $2.24
83	83 46180060 Piston rod nut cpl. m12x1 As Required	46180060	US $38.23
84	84 46810340 O-ring nbr 45x2 As Required	46810340	US $4.01
85	85 46811453 Reservoir screw l=123 grey As Required	46811453	US $122.91
86	86 46810322 Separation piston d=46 As Required	46810322	US $33.63
87	87 46811043 O-ring viton 35x5 As Required	46811043	US $10.85
88	88 46810324 Piston ring 3,9x1,5x138 As Required	46810324	US $17.27
89	89 46811209 Reservoir cap d=46 As Required	46811209	US $49.16
90	90 46811539S Cc-compre.damping control cpl. As Required	46811539S	US $155.60
91	91 46810334 Lock washer jv24 As Required	46810334	—
92	92 46810333 Steel-ball d=4,75 As Required	46810333	US $1.29
93	93 46811272S Adjusting knob cc-mech. cpl. As Required	46811272S	US $48.86
94	94 50180095 Bleed plug r 1/8 As Required	50180095	US $9.15

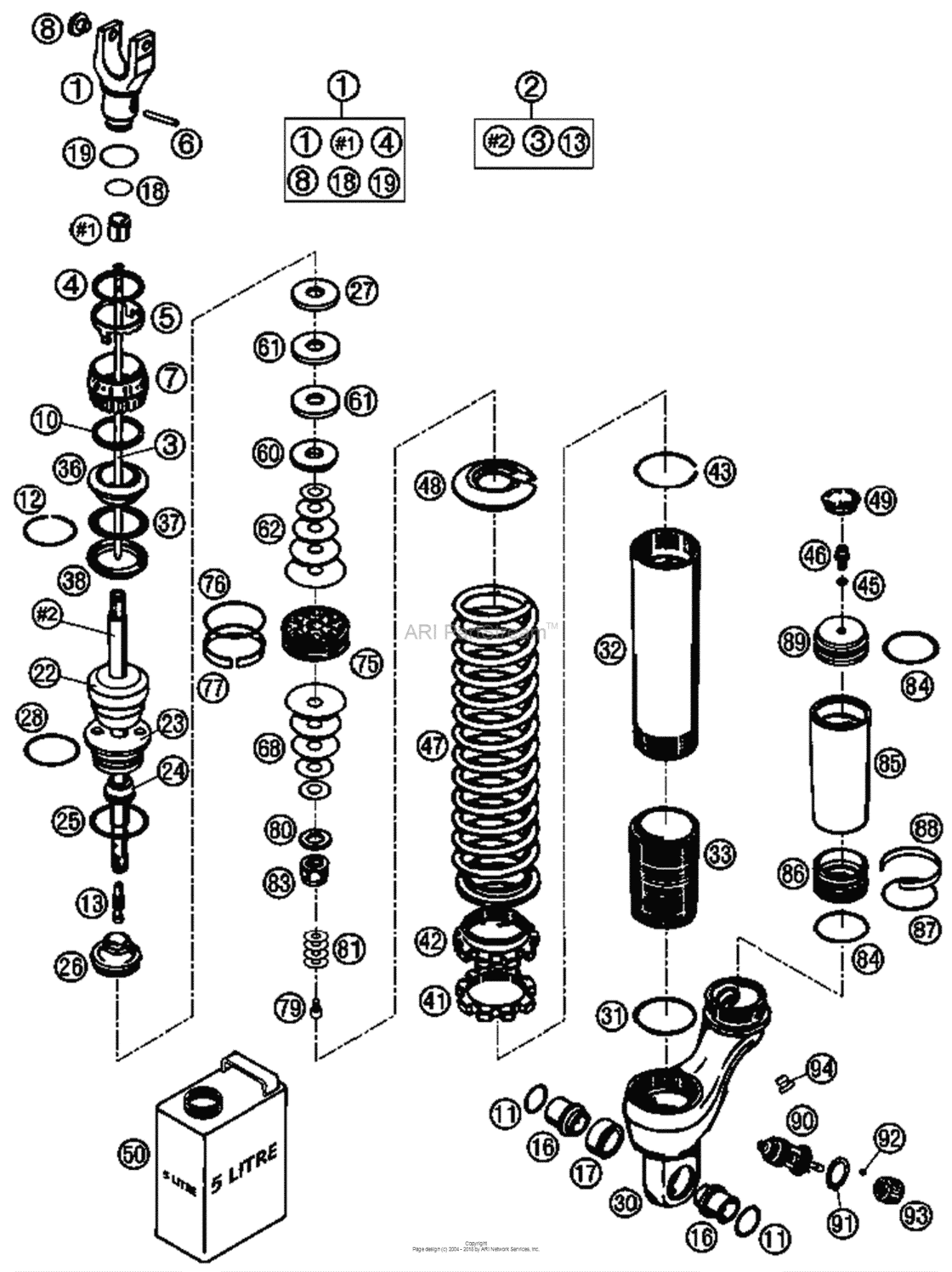

Monoshock Disassembled Diagram KTM 625 625 SMC US/EU 18103103-940539

Monoshock Disassembled Diagram KTM 625 625 SMC US/EU 18103103-940539
