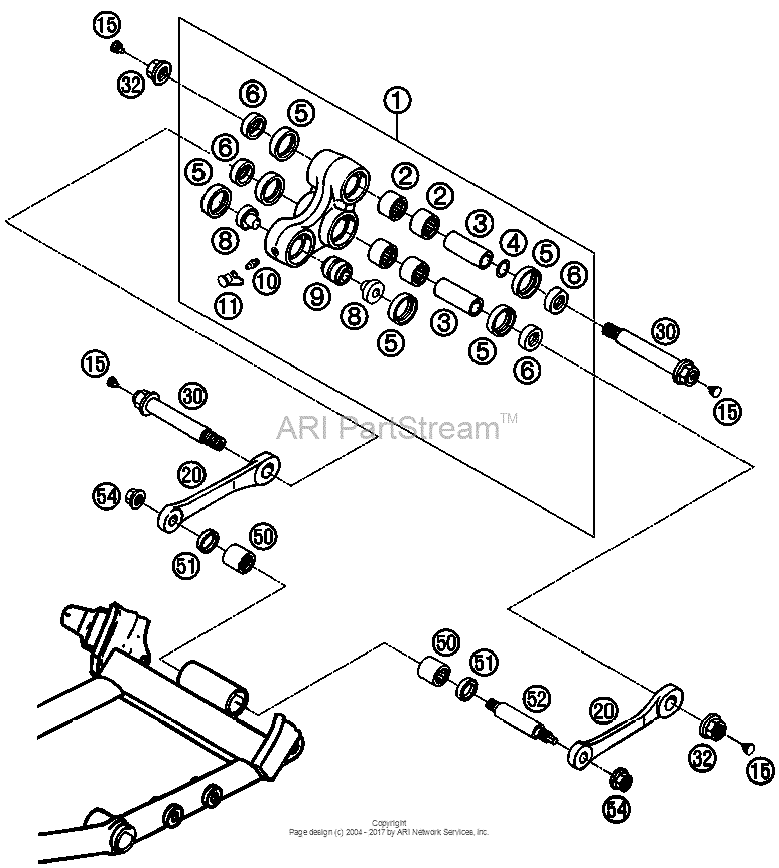

Pro Lever System Diagram KTM 625 625 SMC
- Year
- 2006
- Sales region
- US/EU
- Engine Capacity
- 625
- Model
- 625 SMC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
58303080244 Rocker arm cpl. forged lc4 '99'99 |
58303080244 |
US $294.13 |
||
|
2
|
2
54603097000 Needle bush hk 20162016 |
54603097000 |
US $15.33 |
||
|
3
|
3
54603081000 Bushing sleeve 15 x 20 x 482016 |
54603081000 |
US $25.01 |
||
|
4
|
4
54603090010 Steel washer 15,2x19x0,1As Required |
54603090010 |
US $2.11 |
||
|
4
|
4
54603090020 Steel washer 15,2x19x0,2As Required |
54603090020 |
US $1.56 |
||
|
4
|
4
54603090030 Steel washer 15,2x19x0,3As Required |
54603090030 |
US $1.09 |
||
|
5
|
5
0760253270 Shaft seal ring 25x32x7As Required |
0760253270 |
US $6.51 |
||
|
6
|
6
58303090000 Spac.f.shaft sealring 15x25x11As Required |
58303090000 |
US $6.66 |
||
|
8
|
8
58303085100 Bushing for bearing link '95'95 |
58303085100 |
US $6.41 |
||
|
9
|
9
54203083050
Hinge bearing blasted
'95 |
54203083050 |
— | ||
|
10
|
10
72003035000 Grease fitting m6 straight'95 |
72003035000 |
US $1.60 |
||
|
11
|
11
53003099000 Cap with loop red'95 |
53003099000 |
US $1.45 |
||
|
15
|
15
54403135000 Plastic cap sfl10'95 |
54403135000 |
US $1.31 |
||
|
20
|
20
58303083000 Linkage arm l=127mm '93'93 |
58303083000 |
US $51.46 |
||
|
30
|
30
54603182044 Bolt cpl.'93 |
54603182044 |
US $48.93 |
||
| replacement | |||||
|
30
|
30
54603182000 Bolt Linkage Arm Cpl'93 |
54603182000 |
US $40.61 |
||
|
32
|
32
54603015000 Self locking nut m14x1,5 ws=19'93 |
54603015000 |
US $4.85 |
||
|
50
|
50
56503195100 Needle bearing hk 1816'93 |
56503195100 |
US $13.97 |
||
|
51
|
51
0760182442 Shaft seal ring 18x24x4'93 |
0760182442 |
US $6.53 |
||
|
52
|
52
58303084100 Bushing bolt connecting bar'96'96 |
58303084100 |
US $43.01 |
||
|
54
|
54
49103415000
Self lock. nut m12x1,75 ws=19
'96 |
49103415000 |
— | ||
