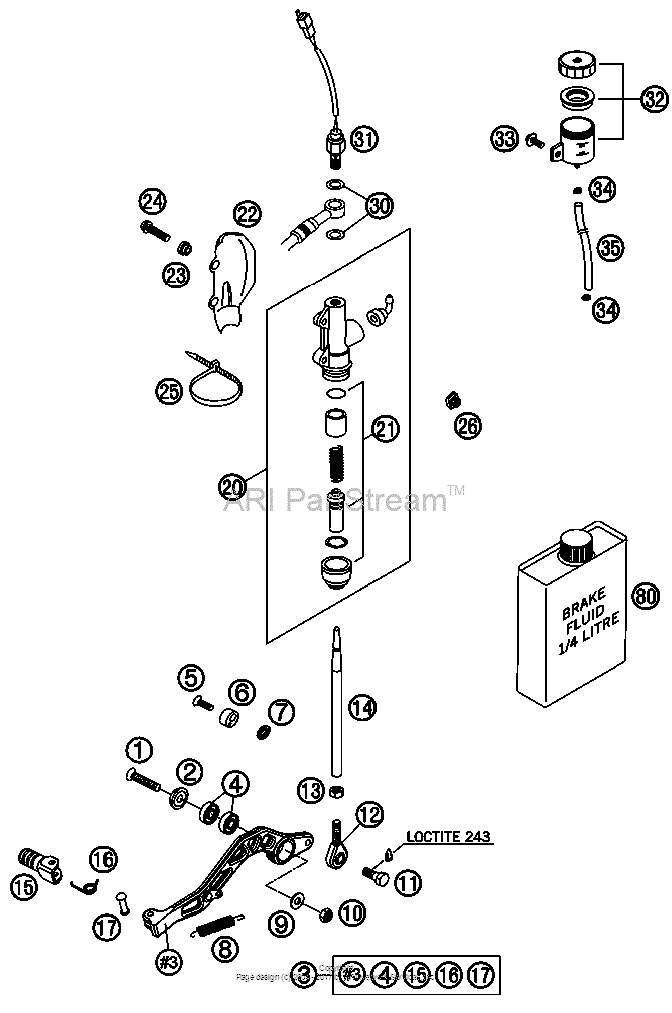

Rear Brake Control Diagram KTM 625 625 SMC
- Year
- 2006
- Sales region
- US/EU
- Engine Capacity
- 625
- Model
- 625 SMC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
0991080353 Flat head screw din7991-m 8x35'96 |
0991080353 |
US $2.21 |
||
|
2
|
2
58303061000 Special washer alu 8 x 24 mm'96 |
58303061000 |
US $6.73 |
||
|
3
|
3
58403070244 Foot brake lev. folding cpl.04'96 |
58403070244 |
US $122.94 |
||
|
4
|
4
0625006087 Grooved Ball Bear. 608 2Rs C3'96 |
0625006087 |
US $19.19 |
||
|
5
|
5
0991060203 Flat Head Din7991-M 6X20'96 |
0991060203 |
US $2.99 |
||
| replacement | |||||
|
5
|
5
0991060202 Flat head din7991-m 6x20'96 |
0991060202 |
US $3.26 |
||
|
6
|
6
58413048000 Brake lever stop lc4 03'96 |
58413048000 |
US $4.88 |
||
|
7
|
7
0797060003 Tooth Lock Wash. Din6797-A 6,4'96 |
0797060003 |
US $0.29 |
||
|
8
|
8
13003062000 Return spring'96 |
13003062000 |
US $5.76 |
||
|
9
|
9
0125080003 Washer din0125-a 8,4'96 |
0125080003 |
US $2.02 |
||
|
10
|
10
0985080003 Self Locking Nut Din0985-M 8'96 |
0985080003 |
US $0.85 |
||
|
11
|
11
0933080223 Hh screw din0933-m 8x22 8.8'96 |
0933080223 |
US $1.14 |
||
|
12
|
12
58303062000 Heim joint m8 w=12mm '93'93 |
58303062000 |
US $47.36 |
||
|
13
|
13
0934080003 Hexagon Nut Din0934-M 8'93 |
0934080003 |
US $3.26 |
||
|
14
|
14
58303068100 Push rod alu l=178mm '93'93 |
58303068100 |
US $12.05 |
||
|
15
|
15
54634131000 Step plate for shift lever 250'93 |
54634131000 |
US $31.76 |
||
|
16
|
16
54634032100 Shifting lever spring 250'93 |
54634032100 |
US $2.53 |
||
|
17
|
17
54634031050 Bolt 6x25 for shift lever'93 |
54634031050 |
US $7.67 |
||
|
20
|
20
54513101044 Main Brake Cylinder '89'89 |
54513101044 |
US $118.37 |
||
|
21
|
21
54513150000 Repair kit piston 13mm'89 |
54513150000 |
US $40.17 |
||
|
22
|
22
54513038000 Brake cyl. protector "brembo"'89 |
54513038000 |
US $6.09 |
||
|
23
|
23
50213161000 Collar bushing'89 |
50213161000 |
US $3.38 |
||
|
24
|
24
0015060253
Hh Collar Screw M6X25 Tx30
'89 |
0015060253 |
— | ||
| replacement | |||||
|
24
|
24
0025060256 Hh collar screw m6x25 tx30'89 |
0025060256 |
US $2.45 |
||
|
25
|
25
44011076200 Cable tie 200/3,6mm black'89 |
44011076200 |
US $0.39 |
||
|
26
|
26
50235033300
Snap-nut holder m6 kp142
'89 |
50235033300 |
— | ||
| replacement | |||||
|
26
|
26
54603048100 Range Change Metal Nut M6'89 |
54603048100 |
US $5.27 |
||
|
30
|
30
42013226000 Cu-Seal Ring Din7603-10X16X1'89 |
42013226000 |
US $4.10 |
||
|
31
|
31
50311051100 Brake Light Switch Rear '98'98 |
50311051100 |
US $73.85 |
||
|
32
|
32
54513030044 Brake Fluid Reservoir '89'89 |
54513030044 |
US $17.56 |
||
|
33
|
33
0014060103
Hh Collar Screw M6X10 Tx30
'89 |
0014060103 |
— | ||
| replacement | |||||
|
33
|
33
0024060106 Hh collar screw m6x10 tx30'89 |
0024060106 |
US $4.35 |
||
|
34
|
34
58007017000 Ydnac clamp 10101 (9mm)'89 |
58007017000 |
US $1.84 |
||
|
35
|
35
58007016101 Hose For Reservoir 6X1,5'89 |
58007016101 |
US $17.49 |
||
|
80
|
80
306054
Brake fluid dot 4.0
'89 |
306054 |
— | ||
