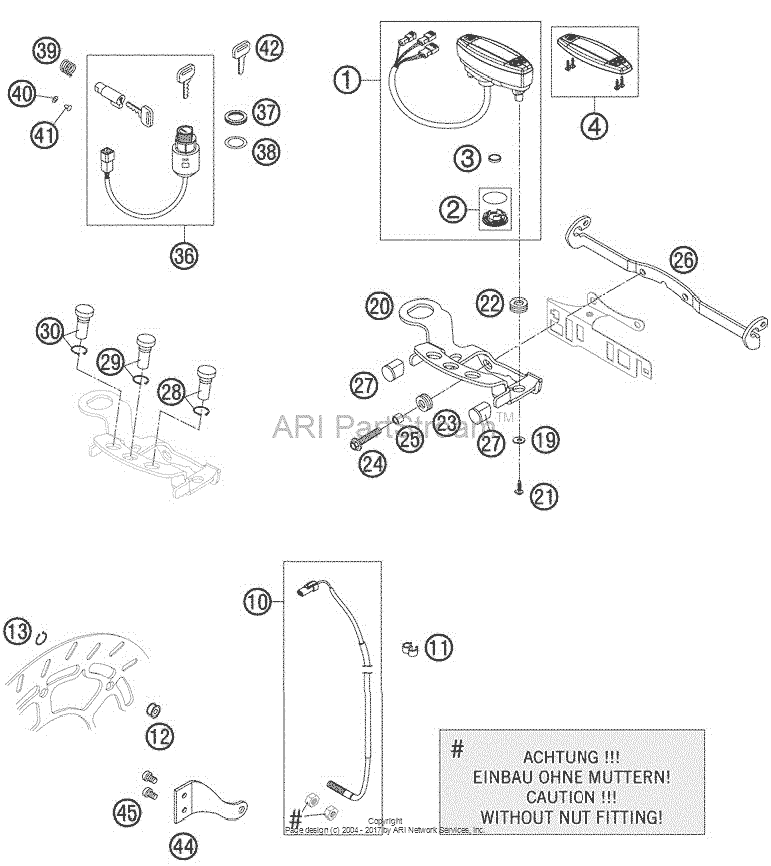

Speedometer Diagram KTM 625 625 SMC
- Year
- 2006
- Sales region
- US/EU
- Engine Capacity
- 625
- Model
- 625 SMC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
54814069200 Speedometer km/h f. 17" 20052005 |
54814069200 |
US $307.31 |
||
|
2
|
2
54814069010 Battery cover f. speedom. 20052005 |
54814069010 |
US $12.41 |
||
|
3
|
3
58314068000 Battery f. speedom. m.a.e. 022005 |
58314068000 |
US $9.64 |
||
|
4
|
4
54814069020 Speedometer top part 052005 |
54814069020 |
US $30.94 |
||
|
10
|
10
54814068000 Cable for digital speedom. 052005 |
54814068000 |
US $65.42 |
||
|
11
|
11
55011022100 Clamp d=6/8mm, black2005 |
55011022100 |
US $1.07 |
||
|
12
|
12
58214069050 Sensor magnet adventure 012005 |
58214069050 |
US $15.11 |
||
|
13
|
13
0471009104 Circlip Din0471- 9X1 Inox2005 |
0471009104 |
US $2.35 |
||
|
19
|
19
0021050003 Washer din9021-a 5,32005 |
0021050003 |
US $1.29 |
||
|
20
|
20
58614060100
Speedom.bracket 625 sxc+smc 05
2005 |
58614060100 |
— | ||
|
21
|
21
0016050121
Screw for plastic 50x12
2005 |
0016050121 |
— | ||
| replacement | |||||
|
21
|
21
0081050121 Screw for plastic k50x12 t202005 |
0081050121 |
US $1.19 |
||
|
22
|
22
58214069051 Rubber Grommet 16X10,8X3 022005 |
58214069051 |
US $4.52 |
||
|
23
|
23
31008060000 Rubber Sleeve D=8Mm Open2005 |
31008060000 |
US $1.09 |
||
|
24
|
24
0014060253 Hh collar screw m 6x25 ws=82005 |
0014060253 |
US $1.19 |
||
|
25
|
25
58011039000 Spacer bushing 6,5 x 8 x 72005 |
58011039000 |
US $1.79 |
||
|
26
|
26
58314033100
Flasher Bracket 2002
2002 |
58314033100 |
— | ||
|
27
|
27
58608003000 Plug cap kv8 052002 |
58608003000 |
US $1.36 |
||
|
28
|
28
58011024300 Flasher Indicat.light Green'98'98 |
58011024300 |
US $7.72 |
||
|
29
|
29
58011021300 H.beam Indicator Light Blue'98'98 |
58011021300 |
US $6.17 |
||
|
30
|
30
58011023300 Neutral indic. light green '98'98 |
58011023300 |
US $5.68 |
||
|
36
|
36
58411066544 Lock system 625 smc 04'98 |
58411066544 |
US $92.80 |
||
| replacement | |||||
|
36
|
36
83011066000 Ignition lock'98 |
83011066000 |
US $88.69 |
||
|
37
|
37
50311066050 Ignition lock nut m24x1'98 |
50311066050 |
US $7.19 |
||
|
38
|
38
58411066450 Washer f. ignition lock 03'98 |
58411066450 |
US $6.22 |
||
|
39
|
39
12003007052
Spring l=16mm
'98 |
12003007052 |
— | ||
|
40
|
40
0137030003 Spring washer din137 b3'98 |
0137030003 |
US $0.12 |
||
|
41
|
41
45002040091 Grooved nail riveto af10'98 |
45002040091 |
US $0.17 |
||
|
42
|
42
40011166200 Key blank black "t" gripAs Required |
40011166200 |
US $9.59 |
||
|
44
|
44
58314052000
Bracket f. sensor sm 03
As Required |
58314052000 |
— | ||
|
45
|
45
0084040063 Cyl.head screw din0084-m 4x 6aAs Required |
0084040063 |
US $1.62 |
||
