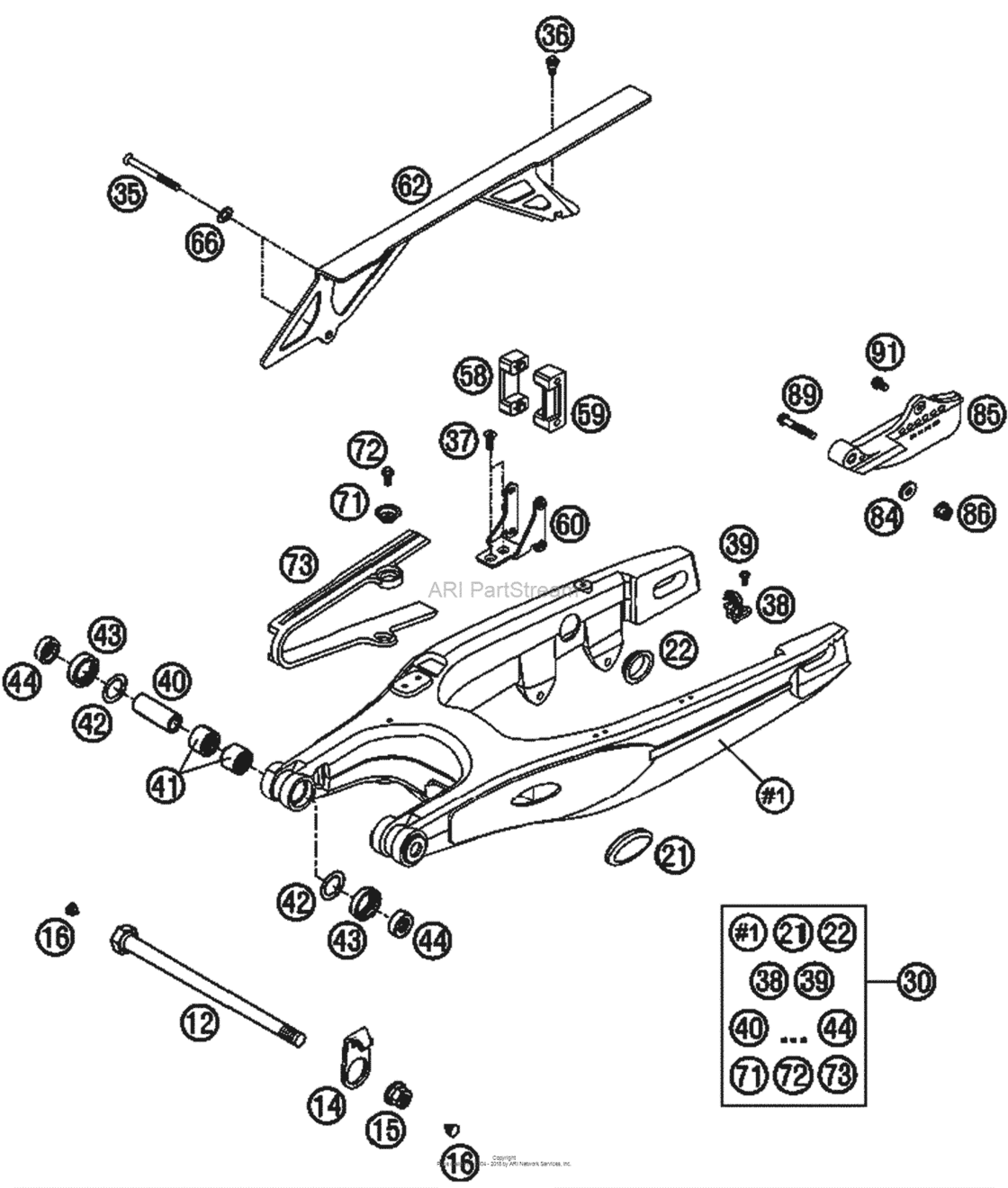

Swingram Diagram KTM 625 625 SMC
- Year
- 2006
- Sales region
- US/EU
- Engine Capacity
- 625
- Model
- 625 SMC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
12
|
12
54603014100 Swingarm bolt kpl. l=253As Required |
54603014100 |
US $38.78 |
||
|
14
|
14
50230211000
Brake hose guide '89
'89 |
50230211000 |
— | ||
|
15
|
15
54603015000 Self locking nut m14x1,5 ws=19'89 |
54603015000 |
US $4.85 |
||
|
16
|
16
54403135000 Plastic cap sfl10As Required |
54403135000 |
US $1.31 |
||
|
21
|
21
58404041000 Closing cover swingarm sm 03As Required |
58404041000 |
US $6.85 |
||
|
22
|
22
58404041100 Closing cover round 03As Required |
58404041100 |
US $0.80 |
||
|
30
|
30
58404130144 Swingarm cpl. sm 05As Required |
58404130144 |
US $786.20 |
||
|
35
|
35
0991060553
Flat head screw din7991 m6x55
As Required |
0991060553 |
— | ||
|
36
|
36
59001092050 Special Screw M6X12,5 Ws=8As Required |
59001092050 |
US $2.35 |
||
|
37
|
37
0991060163 Flat head scr. din7991-m 6x16As Required |
0991060163 |
US $1.46 |
||
|
38
|
38
5461107610030 Ret. clamp f. brake hose blackAs Required |
5461107610030 |
US $0.92 |
||
|
39
|
39
0009050103
Special screw m 5,0x10
As Required |
0009050103 |
— | ||
| replacement | |||||
|
39
|
39
0009050106 Ejot Spiral Screw Sf M5X10-KAs Required |
0009050106 |
US $2.60 |
||
|
40
|
40
50203081700 Bushing sleeve 15x20x38,75As Required |
50203081700 |
US $17.27 |
||
|
41
|
41
59004031000 Needle bush hk2012vAs Required |
59004031000 |
US $9.88 |
||
|
42
|
42
59004033100 Washer 20x32x0,8As Required |
59004033100 |
US $1.04 |
||
|
43
|
43
0760253270 Shaft seal ring 25x32x7As Required |
0760253270 |
US $6.51 |
||
|
44
|
44
54603090000 Bucket f.shaftsealring 15x25x9As Required |
54603090000 |
US $11.63 |
||
|
58
|
58
58604067000 Chain guide inside 05As Required |
58604067000 |
US $4.59 |
||
|
59
|
59
58604068000 Chain guide outside 05As Required |
58604068000 |
US $4.05 |
||
|
60
|
60
58307068300 Support f. chain guide 03As Required |
58307068300 |
US $20.83 |
||
|
62
|
62
58404060000
Chainguard sm, duke 2002
As Required |
58404060000 |
— | ||
|
66
|
66
58404060051 Washer f. chainguard sm 02As Required |
58404060051 |
US $3.76 |
||
|
71
|
71
72210079000 BucketAs Required |
72210079000 |
US $2.72 |
||
|
72
|
72
0015060103
Hh collar screw m 6x10 ws=8
As Required |
0015060103 |
— | ||
| replacement | |||||
|
72
|
72
0025060106 Hh collar screw m6x10 tx30As Required |
0025060106 |
US $1.58 |
||
|
73
|
73
58404066000 Chain sliding guard sm 03As Required |
58404066000 |
US $11.93 |
||
|
84
|
84
50232050001 Steel washer 6,4x17x3As Required |
50232050001 |
US $4.86 |
||
|
85
|
85
58404070000
Chain guide cpl. rear lc4 '98
'98 |
58404070000 |
— | ||
|
86
|
86
56509064100 Self Locking Nut M6 10.9'98 |
56509064100 |
US $1.04 |
||
|
89
|
89
0015060353
Hh collar screw m 6x35 ws=8
'98 |
0015060353 |
— | ||
| replacement | |||||
|
89
|
89
0025060356 Hh collar screw m6x35 tx30'98 |
0025060356 |
US $6.15 |
||
|
91
|
91
0015060123
Hh Collar Screw M 6X12 Ws=8
'98 |
0015060123 |
— | ||
| replacement | |||||
|
91
|
91
0025060126 Hh collar screw m6x12 tx30'98 |
0025060126 |
US $3.96 |
||
