	Description	OEM Part #	Price
1	1 58331001100 Carburetor keihin fcr-41 mx 03 2001	58331001100	US $1,220.19
5	5 57331027000 Carburetor Cover With Gasket 2002	57331027000	—
	replacement
5	5 57331027044 Carburetor Cover With Gasket 2002	57331027044	US $40.56
10	10 57331080000 Bracket plate for thr. cable 2002	57331080000	US $63.24
11	11 57331055000 Screw m 5 x 8 2002	57331055000	—
12	12 57331046000 Throttle shaft cpl. 2002	57331046000	US $136.14
14	14 57331046050 Coil spring throttle shaft 2002	57331046050	US $7.87
16	16 57331035051 Link arm throttle valve cpl. 2002	57331035051	US $89.30
18	18 58331029014 Slide stop l=34,5mm 03 2002	58331029014	US $19.55
19	19 57331035000 Throttle valve cpl. 2002	57331035000	US $361.40
20	20 59031035050 Bushing throttle valve 2002	59031035050	US $10.68
21	21 57331035153 Gasket Plate Throttle Valve 04 2002	57331035153	US $199.85
22	22 59031035052 Gasket washer throttle valve 2002	59031035052	US $17.99
23	23 57331034100 Jet needle keihin obekp As Required	57331034100	US $27.69
23	23 57331034200 Jet needle keihin obekq As Required	57331034200	US $34.19
23	23 57331034300 Jet needle keihin obekr As Required	57331034300	US $32.86
23	23 57331034400 Jet needle keihin obeks As Required	57331034400	US $34.19
23	23 57331034500 Jet needle keihin obekt As Required	57331034500	US $29.14
23	23 59031023200 Jet needle keihin obdvt As Required	59031023200	US $29.78
24	24 59031029000 Bar clip As Required	59031029000	US $4.05
25	25 57331032000 Needle set screw cpl. As Required	57331032000	US $41.28
26	26 59031121000 Needle jet fcr-mx As Required	59031121000	US $33.22
27	27 54531623160 Main jet 160 keihin As Required	54531623160	US $13.16
27	27 54531623162 Main jet 162 keihin As Required	54531623162	US $12.67
27	27 54531623165 Main jet 165 keihin As Required	54531623165	US $12.92
27	27 54531623168 Main jet 168 keihin As Required	54531623168	US $13.07
27	27 54531623170 Main jet 170 keihin As Required	54531623170	US $12.75
27	27 54531623172 Main Jet 172 Keihin As Required	54531623172	US $12.84
27	27 54531623175 Main Jet 175 Keihin As Required	54531623175	US $12.84
27	27 54531623178 Main Jet 178 Keihin As Required	54531623178	US $13.58
27	27 54531623180 Main Jet 180 Keihin As Required	54531623180	US $12.24
27	27 54531623182 Main jet 182 keihin As Required	54531623182	US $12.99
27	27 54531623185 Main jet 185 keihin As Required	54531623185	US $12.84
27	27 54531623188 Main jet 188 keihin As Required	54531623188	US $12.67
27	27 54531623190 Main jet 190 keihin As Required	54531623190	US $12.02
28	28 54531607040 Idle jet 40 keihin As Required	54531607040	US $11.83
28	28 54531607042 Idle jet 42 keihin As Required	54531607042	US $12.16
28	28 54531607045 Idle jet 45 keihin As Required	54531607045	US $11.95
29	29 59031051085 Starter jet 85 As Required	59031051085	US $16.73
30	30 57331007100 Idle air jet 100 keihin As Required	57331007100	US $15.91
31	31 57331037200 Main air jet 200 keihin As Required	57331037200	—
32	32 59031017100 Adjust screw cpl. fcr-mx As Required	59031017100	US $18.48
35	35 57331085000 Buffer plate As Required	57331085000	US $11.36
39	39 57331009000 Float cpl. As Required	57331009000	US $60.62
40	40 57331008000 Arm pin float As Required	57331008000	US $1.63
41	41 57331075000 Hot-Starter Valve Cpl. 06 As Required	57331075000	—
	replacement
41	41 57331075100 Hot-Starter Valve Cpl. 06 As Required	57331075100	US $101.88
42	42 57331020000 Needle valve cpl. As Required	57331020000	US $74.70
46	46 57331155000 Drain screw float chamber As Required	57331155000	US $5
47	47 57331060000 Cover accelerator pump As Required	57331060000	US $25.21
49	49 57331011000 Float Chamber Cpl. 08 As Required	57331011000	—
	replacement
49	49 78031011000 Float chamber cpl. 08 As Required	78031011000	US $183.91
53	53 59031059000 Coil spring As Required	59031059000	US $6.26
55	55 57331048000 Starter valve cpl. As Required	57331048000	US $89.39
56	56 57331098000 Breath.hose fcr-mx keihin cpl. As Required	57331098000	US $111.32
60	60 57331038100 Screw f. cover keihin As Required	57331038100	—
61	61 54531699000 Plug m 18x1 As Required	54531699000	US $20.21
64	64 57331062000 Intermediate lever cpl. As Required	57331062000	US $33.05
65	65 57331056000 Link lever As Required	57331056000	US $7
66	66 57331059000 Spring link lever As Required	57331059000	US $11.68
67	67 57331159000 Spring intermediate lever As Required	57331159000	US $9.71
68	68 57331038000 Carburetor cover As Required	57331038000	US $27.05
69	69 57331087000 Washer link lever As Required	57331087000	US $1.31
70	70 57331084000 E-clip As Required	57331084000	US $1.89
72	72 57331061000 Rod accelerator pump As Required	57331061000	US $27.56
83	83 59031013044 Hose connector cpl. As Required	59031013044	US $66.64
85	85 59031040200 Intake funnel fcr/fcr-mx 02 As Required	59031040200	—
87	87 59031040010 O-ring for intake funnel As Required	59031040010	US $3.01
89	89 0912050123 Ah screw din0912-m 5x12 As Required	0912050123	US $0.85
90	90 57331025000 Stop screw cpl. fcr-mx As Required	57331025000	US $58.31
96	96 58331077000 Tps-sensor fcrmx 220mm 03-05 As Required	58331077000	—
99	99 57331099000 Gasket set fcr-mx keihin As Required	57331099000	US $109.77

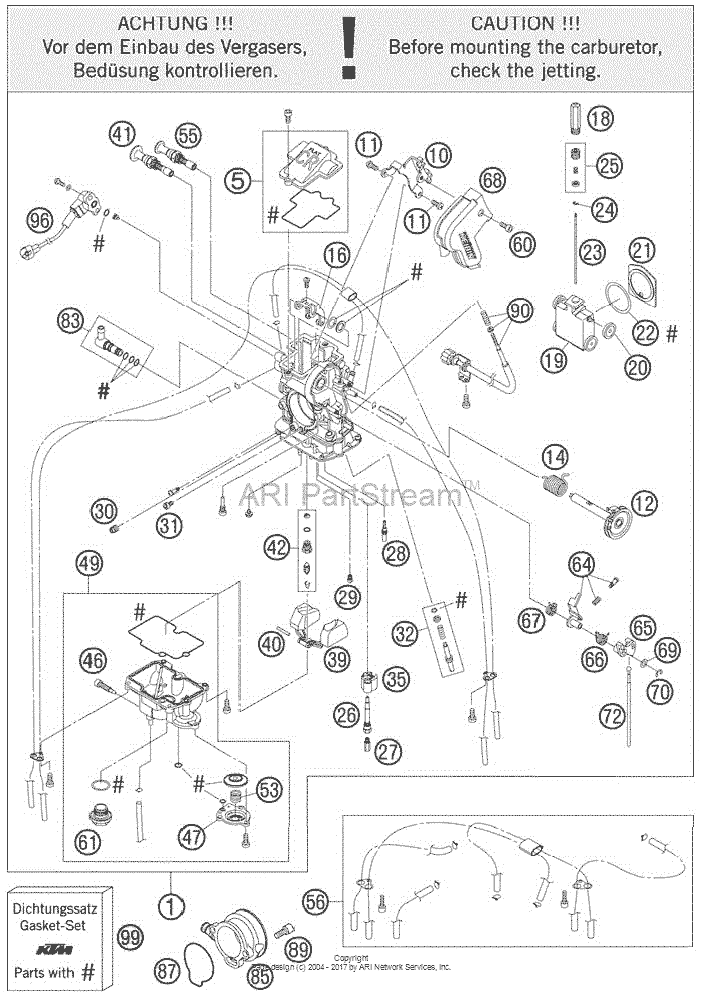

Carburetor Diagram KTM 625 625 SMC US/EU 18103157-940542
