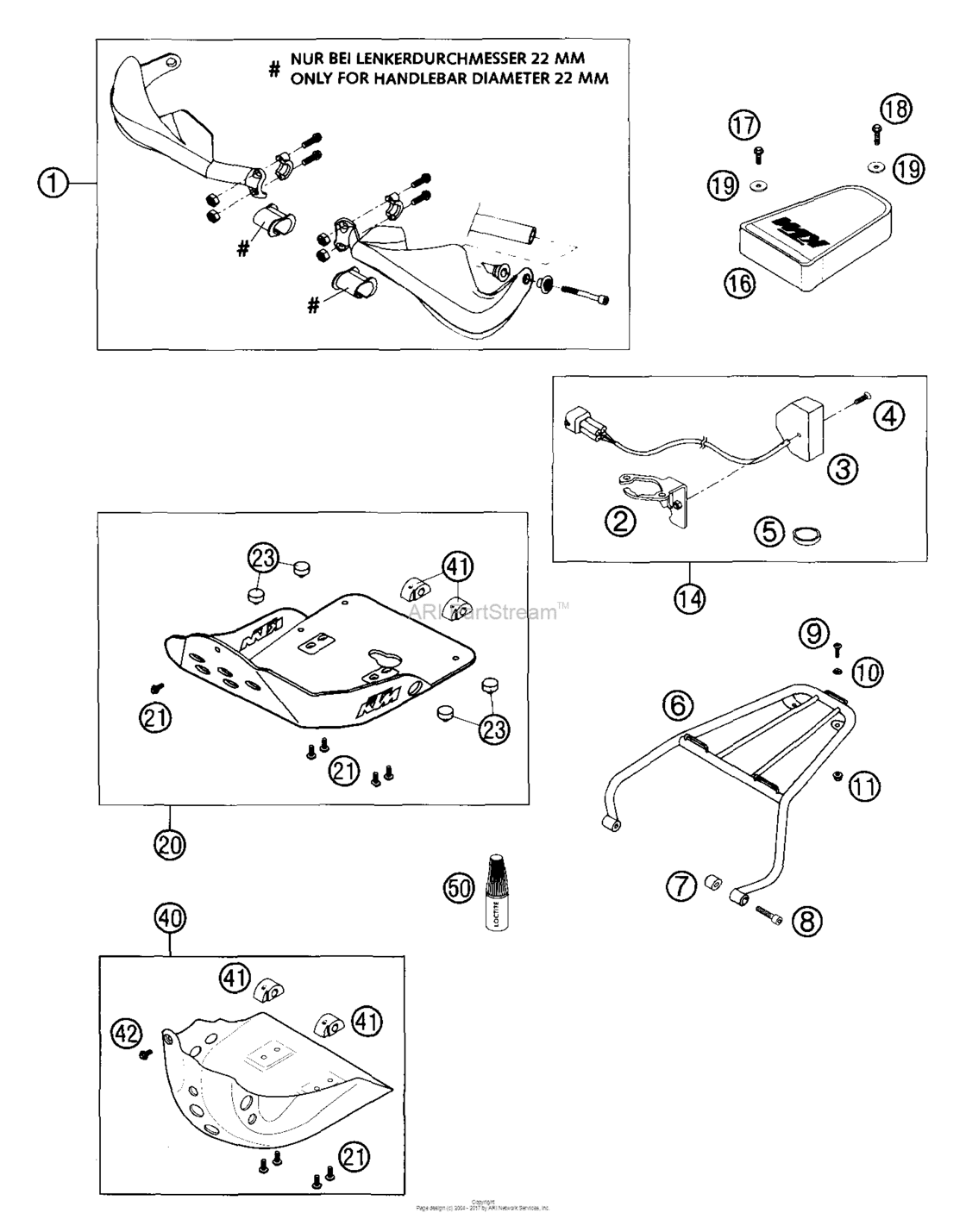

*accessories Diagram KTM 625 625 SXC
- Year
- 2004
- Sales region
- US/EU
- Engine Capacity
- 625
- Model
- 625 SXC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6000207910030
Handguard Closed Black High
'94 |
6000207910030 |
— | ||
| replacement | |||||
|
1
|
1
6030217910030
Handguard Closed Black High
'94 |
6030217910030 |
— | ||
|
1
|
1
6000207910004
Handguard l/s+r/s cpl.orange04
'94 |
6000207910004 |
— | ||
| replacement | |||||
|
1
|
1
6030217900004
HANDGUARDS CLOSED ORANGE HIGH
'94 |
6030217900004 |
— | ||
|
2
|
2
58314069350
Bracket tripmaster switch 02
'94 |
58314069350 |
— | ||
|
3
|
3
58314069200
Tripmaster-switch digi-speedo.
'94 |
58314069200 |
— | ||
|
4
|
4
0963040203 Flat head screw din0963-m 4x20'94 |
0963040203 |
US $0.39 |
||
|
5
|
5
58314068000 Battery f. speedom. m.a.e. 02'94 |
58314068000 |
US $9.64 |
||
|
6
|
6
5841201020030 Baggage carrier black mil lc4'94 |
5841201020030 |
US $180.08 |
||
|
7
|
7
58412011100 Bush for baggage carrier 2000'94 |
58412011100 |
US $2.23 |
||
|
8
|
8
0912060353 Ah Screw Din0912-M 6X35'94 |
0912060353 |
US $2.09 |
||
|
9
|
9
0991060203 Flat Head Din7991-M 6X20'94 |
0991060203 |
US $2.99 |
||
| replacement | |||||
|
9
|
9
0991060202 Flat head din7991-m 6x20'94 |
0991060202 |
US $3.26 |
||
|
10
|
10
40006006000 Washer 6mm'94 |
40006006000 |
US $2.18 |
||
|
11
|
11
56509064100 Self Locking Nut M6 10.9'94 |
56509064100 |
US $1.04 |
||
|
14
|
14
58314069244
Tripmaster switch cpl. 02
'94 |
58314069244 |
— | ||
|
16
|
16
58312078000 Tool bag black sc '99'94 |
58312078000 |
US $18.75 |
||
|
17
|
17
0015050163 Hh Collar Screw M 5X16 Ws=8'94 |
0015050163 |
US $1.31 |
||
|
18
|
18
0015050203
Hh Collar Screw M5X20 Tx30
'94 |
0015050203 |
— | ||
| replacement | |||||
|
18
|
18
0025050206 Hh collar screw m5x20 tx30'94 |
0025050206 |
US $1.33 |
||
|
19
|
19
51006097000 Washer 6,2x22x1,st30,w.galv.'94 |
51006097000 |
US $1.62 |
||
|
20
|
20
58412099044
Skid plate limited cpl. 97
'94 |
58412099044 |
— | ||
|
21
|
21
0014060153
Hh Collar Screw M6X15 Tx30
'94 |
0014060153 |
— | ||
| replacement | |||||
|
21
|
21
0024060156 Hh collar screw m6x15 tx30'94 |
0024060156 |
US $3.96 |
||
|
23
|
23
54308042000 Rubber Buffer'94 |
54308042000 |
US $2.89 |
||
|
40
|
40
58303005244
Skid plate plastic
'94 |
58303005244 |
— | ||
|
41
|
41
58003012200
Engine protector bracket '97
'94 |
58003012200 |
— | ||
|
42
|
42
0014060103
Hh Collar Screw M6X10 Tx30
'94 |
0014060103 |
— | ||
| replacement | |||||
|
42
|
42
0024060106 Hh collar screw m6x10 tx30'94 |
0024060106 |
US $4.35 |
||
|
50
|
50
6899785 Loctite 243 Blue 6Ccm'94 |
6899785 |
US $40.61 |
||
