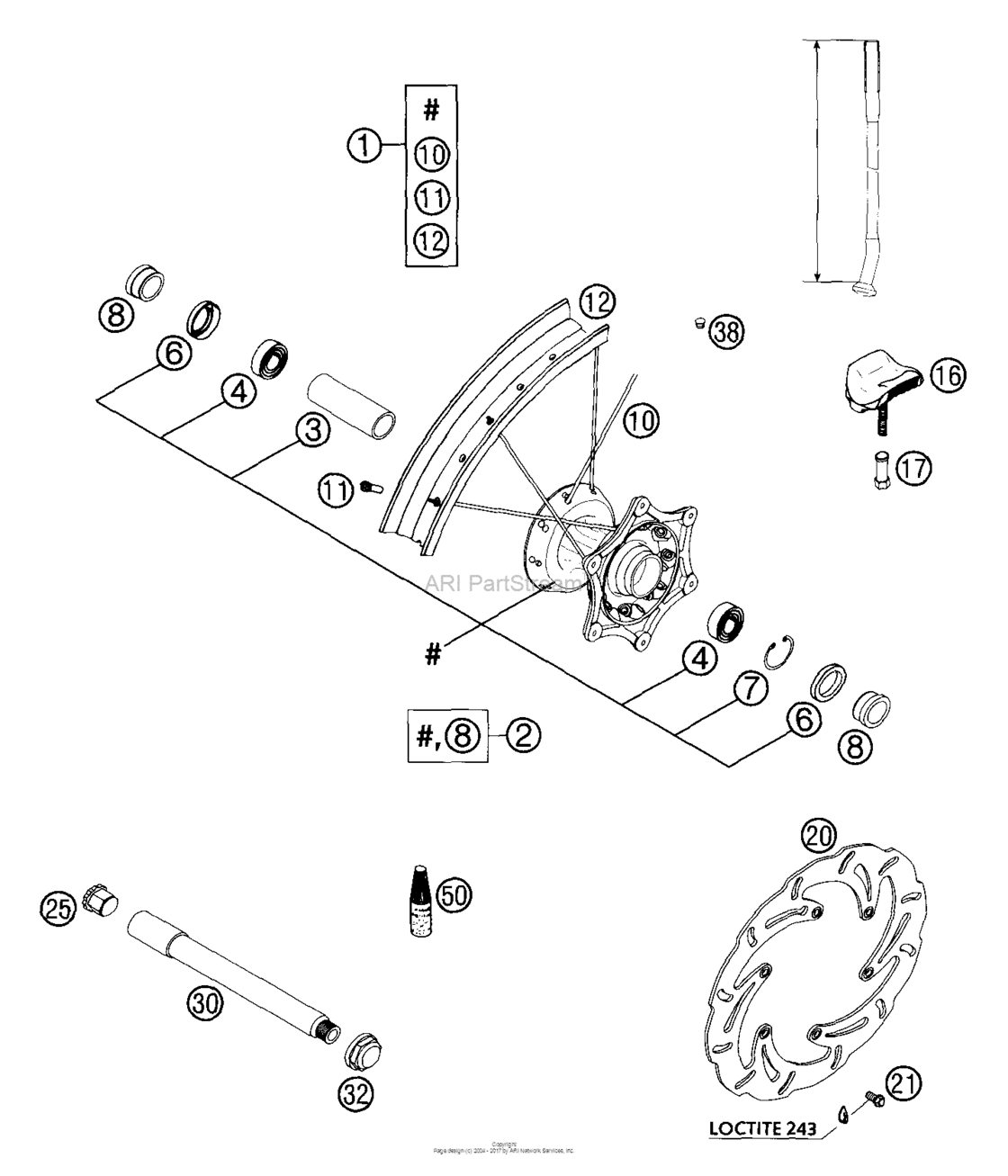

Front Wheel Diagram KTM 625 625 SXC
- Year
- 2004
- Sales region
- US/EU
- Engine Capacity
- 625
- Model
- 625 SXC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
50309001344
Front Wheel Cpl. 1,60X21 06
'94 |
50309001344 |
— | ||
| replacement | |||||
|
1
|
1
58409101044 Front wheel cpl. 1,60x21" 06'94 |
58409101044 |
US $533.32 |
||
|
2
|
2
50309010044
Front Hub Cpl. Silver 06
'94 |
50309010044 |
— | ||
| replacement | |||||
|
2
|
2
5480901024491 Front hub cpl. silver 06'94 |
5480901024491 |
US $288.95 |
||
|
3
|
3
50309011000 Bear. Spacertube 20,5X25X80,3'94 |
50309011000 |
US $7.99 |
||
|
4
|
4
0625069047 Gr.ball Bear.6904 Ddu2Cg23S6Nm'94 |
0625069047 |
US $23.31 |
||
|
6
|
6
0760263770 Shaft Seal Ring 26X37X7 Asl'94 |
0760263770 |
US $2.65 |
||
|
7
|
7
0472037154 Lock Ring Din0472-37X1,5'94 |
0472037154 |
US $0.87 |
||
|
8
|
8
50309012000 Spacer Bushing 20X26X27,8 2000'94 |
50309012000 |
US $6.55 |
||
|
10
|
10
50309071230 Spoke M4,5X230-15G 21 Dde'94 |
50309071230 |
US $3.52 |
||
|
11
|
11
50309072000
Spoke Nipple Quadrax M4,5
'94 |
50309072000 |
— | ||
| replacement | |||||
|
11
|
11
81210072000 Spoke nipple quadrax m4,5'94 |
81210072000 |
US $2.79 |
||
|
12
|
12
54609070200
Front rim 1,6x21" did
'94 |
54609070200 |
— | ||
| replacement | |||||
|
12
|
12
51509070000 Rim Front 1,6X21 Excel Al7'94 |
51509070000 |
US $239.75 |
||
|
16
|
16
51009100100 Rim Lock 1,60'94 |
51009100100 |
US $20.55 |
||
| replacement | |||||
|
16
|
16
78109090000 Rim Lock 1,60'94 |
78109090000 |
US $20.43 |
||
|
17
|
17
50310090050 Nut for wheel holder '96'94 |
50310090050 |
US $4.01 |
||
| replacement | |||||
|
17
|
17
77110090050 Nut For Wheel Holder'94 |
77110090050 |
US $3.60 |
||
|
20
|
20
54809060000
Brake Disc Front D=260Mm 05
'94 |
54809060000 |
— | ||
| replacement | |||||
|
20
|
20
54809060200 BRAKE DISC FRONT D=260MM 05'94 |
54809060200 |
US $155.92 |
||
|
21
|
21
59009062013 Special Screw M6X13 Ws=8 10.9'94 |
59009062013 |
US $2.24 |
||
|
25
|
25
50309081150 Handle For Front Axle Ws=21'94 |
50309081150 |
US $1.96 |
||
|
30
|
30
50309081200 Wheel Sp. Fro.usd43 185Mm 2001'94 |
50309081200 |
US $45.07 |
||
|
32
|
32
50309082100 Axle Nut Front M16X1,5/ws=27'94 |
50309082100 |
US $11.68 |
||
|
38
|
38
55003135000 Plug For Rim'94 |
55003135000 |
US $1.02 |
||
|
50
|
50
6899785 Loctite 243 Blue 6Ccm'94 |
6899785 |
US $40.61 |
||
