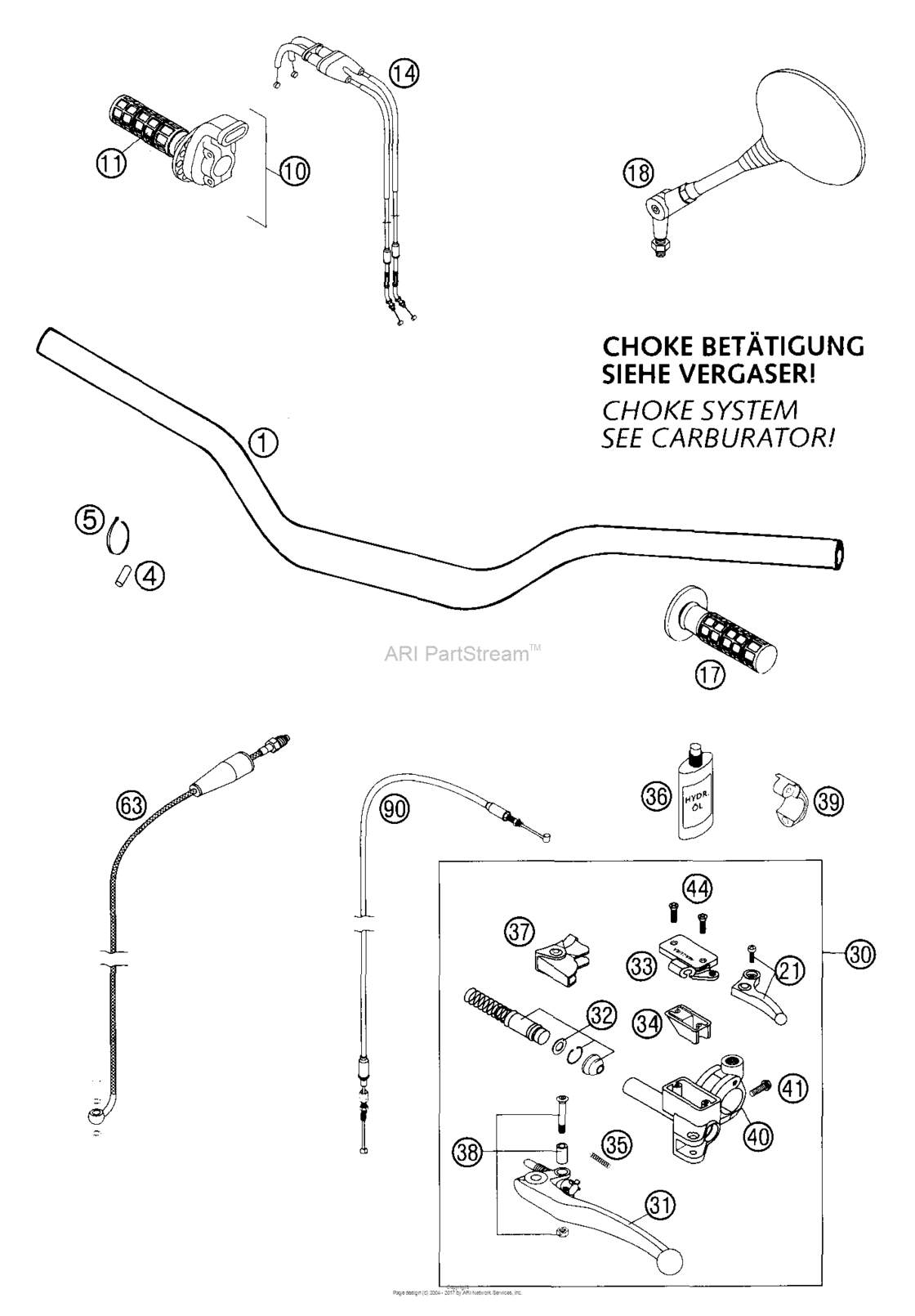

Handlebar Controls Diagram KTM 625 625 SXC
- Year
- 2004
- Sales region
- US/EU
- Engine Capacity
- 625
- Model
- 625 SXC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
59002001000
Handlebar 28mm high 2000
'94 |
59002001000 |
— | ||
| replacement | |||||
|
1
|
1
5900210120017 HANDLEBAR D=28MM'94 |
5900210120017 |
US $226.27 |
||
|
4
|
4
58007016001 Fuel hose viton 7x2mm'94 |
58007016001 |
US $52.73 |
||
|
5
|
5
44011076200 Cable tie 200/3,6mm black'94 |
44011076200 |
US $0.39 |
||
|
10
|
10
59002010200
Throttle grip cpl. racing 2000
'94 |
59002010200 |
— | ||
| replacement | |||||
|
10
|
10
78102010000 Throttle Grip Cpl'94 |
78102010000 |
US $71.72 |
||
|
11
|
11
50202003000
Gripp Set Half Waffle
'94 |
50202003000 |
— | ||
| replacement | |||||
|
11
|
11
50202021000 Gripp Set Half Waffle'94 |
50202021000 |
US $23.31 |
||
|
14
|
14
59002091300 Thr.cable"open-close"keihin 02'94 |
59002091300 |
US $130.34 |
||
|
17
|
17
50202052100
Fixed grip domino w.opening 03
'94 |
50202052100 |
— | ||
| replacement | |||||
|
17
|
17
50202021000 Gripp Set Half Waffle'94 |
50202021000 |
US $23.31 |
||
|
18
|
18
58312040200 Rear mirror l/s foldable sc 02'94 |
58312040200 |
US $50.64 |
||
|
21
|
21
59002047000 Lever Cpl. Racing 2000'94 |
59002047000 |
US $23.60 |
||
|
30
|
30
58602030000 Master cylinder cpl. sxc/sm 03'94 |
58602030000 |
US $345.81 |
||
|
31
|
31
59002031000 Clutch Lever Long Cpl. 2003'94 |
59002031000 |
US $42.99 |
||
|
31
|
31
54602031000 Clutch Lever Short Cpl. 2003'94 |
54602031000 |
US $42.99 |
||
|
32
|
32
50302032000 Rep.set piston magura d=10.5'94 |
50302032000 |
US $116.60 |
||
|
33
|
33
59002033000 Cover hyd.clutch racing 2000'94 |
59002033000 |
US $41.87 |
||
|
34
|
34
50302034000 Rubber for reservoir '98'94 |
50302034000 |
US $16.18 |
||
|
35
|
35
59002035000 Spring for clutch lever 03'94 |
59002035000 |
US $5.46 |
||
|
36
|
36
50302036000
Oil For Hyd. Clutch 100 Ml
'94 |
50302036000 |
— | ||
| replacement | |||||
|
36
|
36
50302036200 Oil For Hyd. Clutch 100 Ml'94 |
50302036200 |
US $19.23 |
||
|
37
|
37
50302037000 Protect.cap For Lever Perch'98'94 |
50302037000 |
US $20.74 |
||
|
38
|
38
50302038000 Lever Screw Cpl. 125-200 '98'94 |
50302038000 |
US $20.35 |
||
|
39
|
39
50302030150 Clamp With Pin 2000'94 |
50302030150 |
US $34.46 |
||
|
40
|
40
59002044000 Clamp mirror with pin'94 |
59002044000 |
US $40.78 |
||
|
41
|
41
0015060203
Hh Collar Screw M 6X20 Ws=8
'94 |
0015060203 |
— | ||
| replacement | |||||
|
41
|
41
0025060206 Hh collar screw m6x20 tx30'94 |
0025060206 |
US $1.97 |
||
|
44
|
44
0965040123 Flat head screw din0965-m 4x12'94 |
0965040123 |
US $0.56 |
||
|
63
|
63
58432063000 Clutch pipe lc4/sxc/sm 03'94 |
58432063000 |
US $87.18 |
||
|
90
|
90
58402094000 Decompr. cable lc4 03'94 |
58402094000 |
US $41.91 |
||
