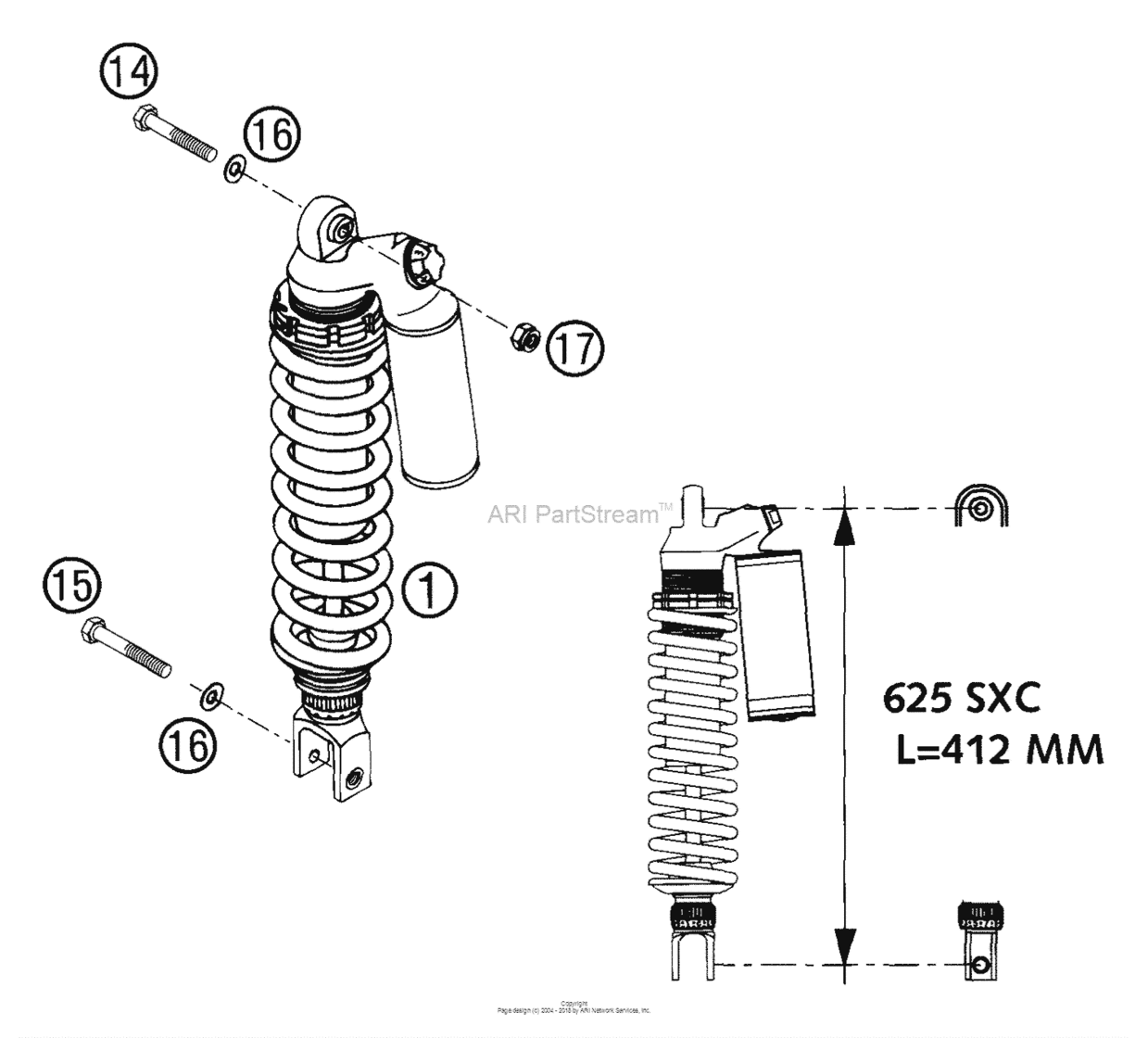

Shock Absorber Wp Diagram KTM 625 625 SXC
- Year
- 2004
- Sales region
- US/EU
- Engine Capacity
- 625
- Model
- 625 SXC
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
0118Y732
Monoshock 4681 Bavp Sxc 04
'94 |
0118Y732 |
— | ||
|
14
|
14
56503086000 Special screw m10x47 ws=17'94 |
56503086000 |
US $3.21 |
||
|
15
|
15
56503093000 Special screw m10x55 ws=17'94 |
56503093000 |
US $5.27 |
||
|
16
|
16
0125100003 Washer Din0125-A10,5'94 |
0125100003 |
US $1.19 |
||
|
17
|
17
54310086100 Self locking nut m10 cu ws=14'94 |
54310086100 |
US $2.55 |
