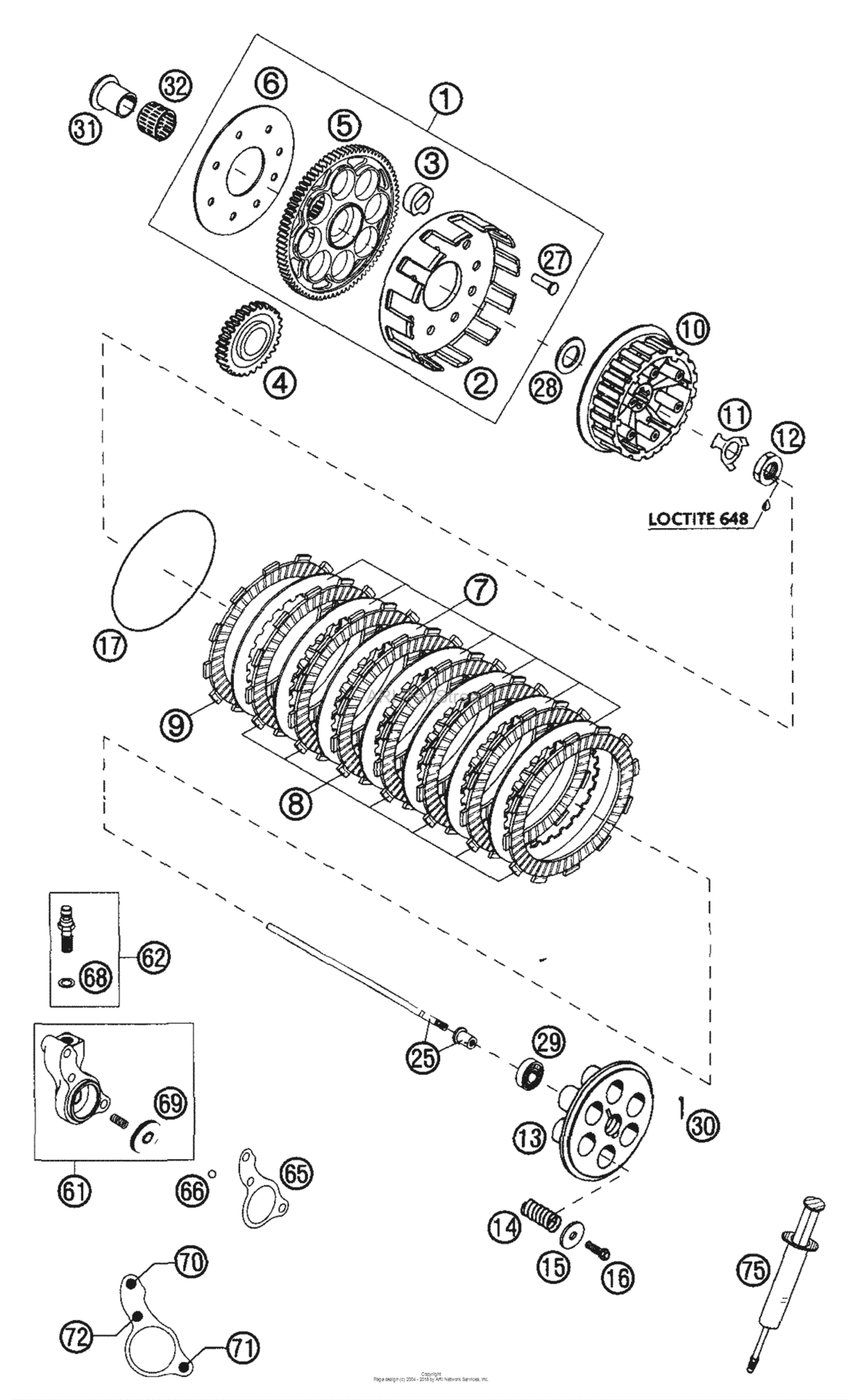

Clutch Diagram KTM 625 625 SXC
- Year
- 2003
- Sales region
- US/EU
- Engine Capacity
- 625
- Model
- 625 SXC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
58432001044 Out.clutch hub cpl.79-t lc4 03REPROGRAMMABLE: KM/H-MPH |
58432001044 |
US $283.24 |
||
|
2
|
2
58332001000
Outer Clhub Loose D=160Mm
REPROGRAMMABLE: KM/H-MPH |
58332001000 |
— | ||
| replacement | |||||
|
2
|
2
58432001000 Outer clutch hub loose lc4 03REPROGRAMMABLE: KM/H-MPH |
58432001000 |
US $130.93 |
||
|
3
|
3
58332026000 Damping element '94REPROGRAMMABLE: KM/H-MPH |
58332026000 |
US $12.14 |
||
|
4
|
4
58532000131 Primary gear wheel 31-t 2001REPROGRAMMABLE: KM/H-MPH |
58532000131 |
US $90.08 |
||
|
5
|
5
58532000079 Clutch wheel 79-t 2001REPROGRAMMABLE: KM/H-MPH |
58532000079 |
US $507.45 |
||
|
6
|
6
58332028000 Bracket 57 x 132 x 1,5 '94REPROGRAMMABLE: KM/H-MPH |
58332028000 |
US $7.48 |
||
|
7
|
7
58332112000 Steel disk 1,5 mm lc4'94REPROGRAMMABLE: KM/H-MPH |
58332112000 |
US $12.12 |
||
|
8
|
8
58332011300 Lining disk 2,7mm fcc 02REPROGRAMMABLE: KM/H-MPH |
58332011300 |
US $26.47 |
||
|
9
|
9
58332111300 Lining disk turn out fcc 02REPROGRAMMABLE: KM/H-MPH |
58332111300 |
US $31.03 |
||
|
10
|
10
58332002200
Inner Clutch Hub Lc4/lc4-E 04
REPROGRAMMABLE: KM/H-MPH |
58332002200 |
— | ||
| replacement | |||||
|
10
|
10
58332002300 Inner clutch hub lc4/lc4-e 04REPROGRAMMABLE: KM/H-MPH |
58332002300 |
US $105.45 |
||
|
11
|
11
58332018000
Lock washer '94
REPROGRAMMABLE: KM/H-MPH |
58332018000 |
— | ||
|
12
|
12
0936181505 Hexagon Nut Din0936-M18X1,5 RREPROGRAMMABLE: KM/H-MPH |
0936181505 |
US $7.60 |
||
|
13
|
13
58332003200 Pressure Cap Lc4/lc4-E 04REPROGRAMMABLE: KM/H-MPH |
58332003200 |
US $86.55 |
||
| replacement | |||||
|
13
|
13
58332003300 Pressure cap lc4/lc4-e 04REPROGRAMMABLE: KM/H-MPH |
58332003300 |
US $49.91 |
||
|
14
|
14
58332080000 Clutch spring 2,8 x 37REPROGRAMMABLE: KM/H-MPH |
58332080000 |
US $7.38 |
||
|
15
|
15
58432081000 Washer 6,5 x 20 x 2REPROGRAMMABLE: KM/H-MPH |
58432081000 |
US $2.14 |
||
|
16
|
16
0015060203
Hh Collar Screw M 6X20 Ws=8
REPROGRAMMABLE: KM/H-MPH |
0015060203 |
— | ||
| replacement | |||||
|
16
|
16
0025060206 Hh collar screw m6x20 tx30REPROGRAMMABLE: KM/H-MPH |
0025060206 |
US $1.97 |
||
|
17
|
17
0770116030 O-ring 116,00x3,00 hnbr 70REPROGRAMMABLE: KM/H-MPH |
0770116030 |
US $8.69 |
||
|
25
|
25
57332017044 Push rod l=215mm cpl. 03REPROGRAMMABLE: KM/H-MPH |
57332017044 |
US $46.48 |
||
|
27
|
27
58332007000 Rivet 6 x 23 x 11,2REPROGRAMMABLE: KM/H-MPH |
58332007000 |
US $3.03 |
||
|
28
|
28
57532013000 Supportwasher 22,2x35x3 harde.REPROGRAMMABLE: KM/H-MPH |
57532013000 |
US $22.51 |
||
|
29
|
29
0625060016 Groov.ball bear. 6001.2rsr c3REPROGRAMMABLE: KM/H-MPH |
0625060016 |
US $23.89 |
||
|
30
|
30
0094020163 Pin din0094-2,0x16REPROGRAMMABLE: KM/H-MPH |
0094020163 |
US $1.31 |
||
|
31
|
31
50332070000 Inner ring with collarREPROGRAMMABLE: KM/H-MPH |
50332070000 |
US $47.52 |
||
|
32
|
32
56532095000 Needle bearing k26x30x22zw.kseREPROGRAMMABLE: KM/H-MPH |
56532095000 |
US $21.51 |
||
|
61
|
61
50332061044 Cylinder cpl. 125/200'98REPROGRAMMABLE: KM/H-MPH |
50332061044 |
US $162.54 |
||
|
62
|
62
50332062000 Hollow screw cpl. m 10x1 '98REPROGRAMMABLE: KM/H-MPH |
50332062000 |
US $35.33 |
||
|
65
|
65
50332065053 Clutch release gasket 0,75mmREPROGRAMMABLE: KM/H-MPH |
50332065053 |
US $2.87 |
||
|
66
|
66
0401070003 Ball din5401-7REPROGRAMMABLE: KM/H-MPH |
0401070003 |
US $0.66 |
||
|
68
|
68
42013226000 Cu-Seal Ring Din7603-10X16X1REPROGRAMMABLE: KM/H-MPH |
42013226000 |
US $4.10 |
||
|
69
|
69
50332066000 Piston w. o-ring 125/200 2000REPROGRAMMABLE: KM/H-MPH |
50332066000 |
US $99.11 |
||
|
70
|
70
0912060303 Ah screw din0912-m 6x30REPROGRAMMABLE: KM/H-MPH |
0912060303 |
US $1.60 |
||
|
71
|
71
0984060163 Ah Screw Din6912-M 6X16REPROGRAMMABLE: KM/H-MPH |
0984060163 |
US $1.24 |
||
|
72
|
72
0912060253 Ah Screw Din0912-M 6X25REPROGRAMMABLE: KM/H-MPH |
0912060253 |
US $1.79 |
||
|
75
|
75
50329050000 Vent Injektion Hydr. ClutchREPROGRAMMABLE: KM/H-MPH |
50329050000 |
US $50.78 |
||
